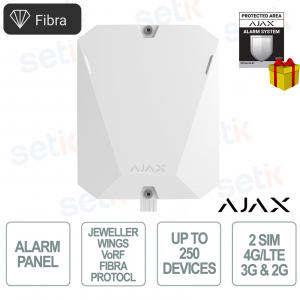

142513.369.WH1 # 142513 | Ajax Superior Hub Hybrid 2 , white version is an advanced hybrid control panel designed for medium to large security systems, capable of managing up to 250 wired and wireless devices with reliable communication via Ethernet and dual SIM 2G/3G/LTE. Thanks to the proprietary Fibra and Jeweller protocols, it guarantees fast, encrypted and tamper-resistant transmission, with support for automation and photo-verification scenarios. The hybrid design allows maximum installation flexibility, while redundant connectivity ensures operational continuity in any conditions. The control panel integrates anti-tamper systems, complete remote management and compatibility with up to 64 automatic scenarios for professional and scalable protection.
>> FREE AJAX STICKER SIGN
CLEARANCE SALE ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>
142513.369.WH1 | HYBRID CONTROL UNIT FOR MEDIUM-LARGE CONFIGURATIONS

The Ajax Superior Hub Hybrid 2 White, 142513.369.WH1 , is an advanced hybrid control panel designed for medium to large security systems, capable of managing up to 250 devices between Fiber and Jeweller. Thanks to dual Ethernet and 2G/3G/LTE SIM connectivity, it guarantees always-on communications with automatic switching between networks and protocols protected by encryption. The system supports photo verification, intelligent automations and anti-sabotage functions such as tamper, short circuit detection and Fiber line monitoring. The black casing offers a professional design, while Jeweller, Wings and Fiber technologies ensure fast, secure and stable communications in any installation conditions. Ideal for installations requiring maximum reliability, scalability and complete remote management via app.
Main specifications:
- Supports up to 250 wired and wireless devices in any combination
- Dual communication via Ethernet and two 2G/3G/LTE SIMs
- Anti-sabotage functions: tamper, short circuit, fiber optic line break detection
- Photo verification support with up to 8 triggers per device
- Up to 64 automation scenarios for security and advanced home automation
- Quick setup with QR code and automatic scanning of up to 100 devices
- Battery life up to 60 hours with dedicated battery (optional)
- Elegant black design, IP40/IK06 certifications and ready for professional mounting
Further details
The system supports three advanced protocols:
-
Jeweller , for transmission of alarms, commands and events up to 2,000–3,000 m
-
Wings (TurboWings) , for fast sending of photos, logs and data packets
-
VoRF , which provides full-duplex audio communications and a range of up to 1,800 m in open terrain
Technical data sheet
| 142513.369.WH1 | |
| Compliance | EN 50131 (Grade 3) PD 6662:2017 |
| Fiber communication technology | |
| Wired connection | U/UTP cat. 5 4x2x0.51 mm (24 AWG) cable, copper conductor 4x0.22mm signal cable copper conductor |
| Communication range | Up to 2,000m Up to 6,550 ft With U/UTP cat. 5 4x2x0.51 mm (24 AWG) cable |
| Polling interval | 12-300 s Adjusted by a PRO or user with admin rights in Ajax app |
| Superior Jeweler communication technology | |
| Communication range | Up to 3,500 m Up to 11,500 ft |
| Frequency bands | 865.0 - 868.0 MHz 868.0 - 868.6 MHz 868.7-869.2 MHz 869.4 - 869.65 MHz Each device supports these four bands |
| Wings, and VoRF communication technology | |
| Wings communication range | Up to 3,000 m Up to 9,800 ft In open space |
| VoRF communication range | Up to 1,800m Up to 5,900 ft In open space |
| Frequency bands | 866.0 - 866.5 MHz 868.0 - 868.6 MHz 868.7 - 869.2 MHz 905.0 - 926.5 MHz 915.85 - 926.5 MHz 921.0 - 922.0 MHz Depence on the sales reaction |
| Maximum effective radiated power (ERP) | < 25 mW |
| Power Supply | |
| Main power supply type | Type A |
| Operating AC voltage | 100 - 240 V, 50/60 Hz Up to 10W of mains power consumption |
| Fiber Line | 24 V The hub power connected devices |
| Operating DC voltage | 10.5 - 15 V From the backup battery with a capacity of 4, 7, or 9Ah (not included in the complete set) |
| Autonomous operation | up to 60 hours The 7 Ah backup battery can power a system of 30 wired devices for 60 hours, while wireless devices already operate on batteries |
| Communication channels | |
| Ethernet | 8P8C socket up to 100 Mbps |
| Cellular networks | 2 slots for micro-SIM 2G (GSM900 / DCS1800 (B3 / B8)) 3G (WCDMA 850 / 900 / 2100 (B1 / / B5 B8)) 4G/LTE (FDD B1 / B3 / B5 / B7 / B8 / B20) |
| Automatic switching between communication channels | Up to min between SIM cards Instantly between 4G, 3G and 2G networks within a SIM Instantly between Ethernet and SIM |
| Power Supply | |
| Ajax devices | Up to 250 Wired and wireless devices in any combination 5 range extenders max |
| Fiber Lines | 8 outputs Ajax wired devices can be connected with 8 lines (1 line uses 1 output) or 4 rings (1 ring uses 2 output) |
| Ajax cameras or NVRs | up to 36 NVRs up to 224 cameras via Ajax NVRs up to 492 standalone cameras |
| Users | up to 200 |
| Automatic scenarios | up to 64 |
| Security groups | up to 25 |
| Rooms | up to 200 |
| Control and user authorization | System supports up to 200 access codes |
| Event log | up to 1000 events Alarm and events are saved on the volatile on-devices flash memory |
| Installation | |
| Operating temperature | -10 °C to +40 °C 14°F to 104°F |
| Operating humidity | up to 75% |
| Product appearance | |
| Color | White |
| Dimensions | 197 x 140 x 100 mm 7.28" x 3.90" x 1.69" |
| Weight | 837 g 29.52 oz |
| Casing protection class | IP40, IK06 |
