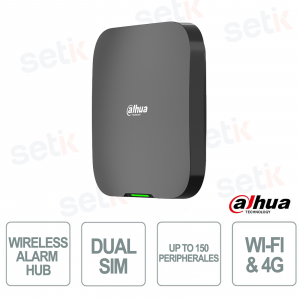

Dahua 868MHz 4G WiFi Wireless Black Alarm Control Panel with Video Verification and 150 Devices

Dahua 868MHz 4G WiFi Wireless Black Alarm Control Panel with Video Verification and 150 Devices

-56%

ARC3800H-FW2-868-B The black alarm control panel is an advanced wireless hub designed for complete security management, capable of supporting up to 150 devices including wireless and wired sensors for total control of the environments. It integrates Ethernet, Wi-Fi and 4G multi-network connectivity with dual SIM , ensuring always-on and reliable communications. It offers video verification of alarms with support for up to 8 IP cameras , as well as notifications via app, SMS and voice calls. Security is ensured by AES128 encryption, two-way communication and frequency hopping , with a range of up to 2000 m . It has a built-in backup battery , multi-user management and cloud updates, making it ideal for advanced professional and residential systems. Dahua

Technical data sheet

Reference: ARC3800H-FW2-868-B

Brand: Dahua

EAN: 6939554984679

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


ARC3800H-FW2-868-B | ALARM HUB - WIRELESS - 868MHZ - 2.4GHZ - UP TO 150 PERIPHERALS

Dahua

The black Dahua ARC3800H-FW2-868-B control panel is an advanced wireless alarm hub designed for complete security management, capable of supporting up to 150 devices including wired and wireless sensors for total control of the environments. It integrates Ethernet, Wi-Fi and 4G multi-network connectivity with dual SIM , ensuring always-on and reliable communications even in the event of faults. It supports video verification of alarms with up to 8 IP cameras and notifications via app, SMS and voice calls. Security is high thanks to AES128 encryption, two-way communication and frequency hopping with a range of up to 2000 m . Equipped with a built-in backup battery , multi-user management and cloud updates, it is ideal for professional and advanced residential systems.

Main specifications:

- Support up to 150 wireless and wired devices for complex systems

- Ethernet, Wi-Fi and 4G connectivity with dual SIM for maximum reliability

- Video alarm verification with up to 8 IPCs for immediate visual inspection

- Two-way communication with AES128 and frequency hopping for advanced security

- Wireless range up to 2000 m in open field

- Multi-user management and notifications via app, SMS and calls

- Built-in battery with backup up to 12 hours for operational continuity

- Cloud updates and remote control for smart system management

Further details

Doors :
The control panel integrates wired inputs and outputs expandable up to 64 channels and a 10/100 Mbps RJ-45 Ethernet port , allowing high scalability and integration with complex security systems.
Video & Audio:
It supports up to 8 IP cameras for visual alarm verification and features audio output with voice calls and broadcast , ensuring complete and immediate control of security events.
Functions:
It offers advanced features such as management of up to 150 devices , notifications via app, SMS and calls , video linkage , event memory up to 5000 logs and cloud updates , ensuring intelligent and centralized management of the system.
Communication :
It uses two-way technology with AES128 encryption and frequency hopping , ensuring secure and stable communications with a range of up to 2000m in open area for wireless devices.
Wi-Fi :
It integrates IEEE 802.11 b/g/n 2.4 GHz Wi-Fi connectivity, allowing quick configuration, remote management and business continuity thanks to network redundancy.
Cellular Network :
It supports GSM, WCDMA and 4G LTE networks with dual SIM , ensuring communication redundancy and reliable alarm transmission even in the absence of a wired connection .

Technical data sheet

ARC3800H-FW2-868-B
Port
Wireless Zone 150 wireless peripherals (64 keyfobs, 6 sirens (including 4 intercom sirens), 8 keypads, 4 repeaters, 64 PIR-Cam (including Indoor PIR Cameras, External PIR Cameras, and Triple-tech Detectors), 16 Multi I/O Transmitters), 64 wired alarm inputs expanded by Transmitters, and 8 IPCs
Area 32 areas (rooms)
Network Mode Ethernet, Wi-Fi and Cellular network(Supports installation of dual SIM cards. Only one card can be enabled at a time)
Network Port 1 RJ-45, 10Mbps/100Mbps Ethernet port.
Storage Battery One built-in 4,750 mah rechargeable lithium battery.
Video & Audio
Video Input 8-ch IPC, which only supports the upload of alarm videos.
Audio Output 1 channel
Volume Control Yes
Voice Broadcast Telephone and local speaker
Function
Indicator Light The indicator indicates the status of alarms, arming and disarming, the network connection and device failure
Button Includes a reset button, voltage button and AP switch button.
SMS Yes (up to 5 phone numbers)
Phone Call Yes (up to 5 phone numbers)
Video Linkage Yes
Offline Cache Stores up to 50 alarm messages.
Arm and Disarm App, keyboard, remote control, card, scheduled arming and disarming.
Remote Update Cloud update
Low Battery Detection Yes
Tamper Yes
User Management 33 app users (31 general users, 1 admin user and 1 installer) and 32 keypad users
Logs Up to 5,000 entries
Transmission Protocol SIA, SoftGuard
Wireless
Carrier Frequency 868.0–868.6 MHz
Transmitter Power (EIRP) Limit 25 mW
Communication Mechanism Two-way
Communication Distance Up to 2,000 m (6,561.68 ft) in an open space.
Encryption Mode AES128
Frequency Hopping Yes
General
Language Support 14 languages: Arabic, Czech, Danish, Dutch, English, French, German, Italian, Portuguese (Europe), Russian, Spanish (Latin America), Spanish (Europe), Turkish, Slovak.It is set as English by default.
Power Supply 100–240 VAC, 50/60 Hz
Standby Time The battery lasts up to 12 hours when it is fully charged and is within the following conditions: It is connected to the Wi-Fi, its ID is connected to the alarm receiving center, the heartbeat interval is 1,800 seconds, and it is connected to 8 peripherals and the cloud
Power Consumption 220 VAC 80 mA(Max)
220 VAC 40 mA (Standby)
Operating Temperature When battery is not charging: –10 °C to +55 °C (+14 °F to +131 °F)
When battery is charging: 0 °C to +45 °C (+32°F to +113 °F)
Operating Humidity 10%–90% (RH)
Product Dimensions 174.8 mm × 174.8 mm × 38.3 mm (6.88" × 6.88" × 1.51") (L × W × H)
Net Weight 510 g (1.12 lb)
Gross Weight 860 g (1.90 lb)
Installation Supports wall mount and desktop mount installation.
Casing Material PC + ABS
Certifications THERE IS
EN 50131-1:2006+A1:2009+A2:2017+A3:2020
EN 50131-3:2009
EN 50131-6:2017+A1:2021
EN 50131-5-3:2017
EN 50131-10: 2014
EN 50136-2: 2013+A1:2023
Security Grade 2
Environmental Class II
ATS category: SP2/DP2
Anti-corrosion Level Basic Protection
Storage Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Storage Humidity 10%–90% (RH)
Packaging Dimensions 254 mm × 211 mm × 61 mm (10.00" × 8.31" × 2.40") (L × W × H), standalone in the inner box
524 mm × 508 mm × 442 mm (20.63" × 20.00" × 17.40") (L × W × H), protective case
Wi-Fi
Standard Wi-Fi IEEE 802.11b/g/n
Wi-Fi Frequency Range 2400-2483.5 MHz
Wi-Fi Power Transmission ≤20 [email protected] MHz
Cellular Network
Transmitter Power (EIRP) 4G: Power class3: 23 dBm±2dB
3G: Power class3: 24 dBm+1/-3dB
2G: Power class0: 30 dBm±3dB(GSM900)
Power class5: 33 dBm±3dB(GSM1800)
Cellular Network Standard GSM/WCDMA/LTE
Frequency Range EU:
4G:
FDD-LTE: B1/B3/B7/B8/B20/B28A;
TDD-LTE: B38/B40/B41;
3G:
WCDMA: B1/B8;
2G:
GSM: 1,800/900MHz;
RU:
4G:
FDD-LTE: B1/B3/B7/B8/B20/B28;
TDD-LTE: B38/B40/B41;
3G:
WCDMA: B1/B5/B8;
2G:
GSM: 1,800/900MHz;
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
