ARC3000H-FW2-868 - Wireless alarm control panel is an advanced and flexible solution for home and professional security. It supports up to 150 wireless devices, integrates Ethernet, Wi-Fi and 4G communication with dual SIM, and is compatible with the DMSS app for remote management and push notifications. With AES128 encryption and frequency hopping, it ensures secure and stable communication. It also offers intelligent functions such as cloud updates, video verification and real-time anomaly reporting, all in a compact and modern design. A reliable control panel to protect any environment. Dahua
DAHUA: LOSS LEADER×
INCREDIBLE DISCOUNTS
on a selection of DAHUA products
Check out the promo now >>
CLEARANCE SALE ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>
Description Product Details Technical Sheet Further Details Download

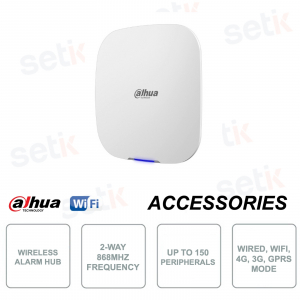

ARC3000H-FW2-868 | ALARM HUB - WIRELESS - 868MHZ - 2.4GHZ - UP TO 150 DEVICES


WIRELESS ALARM CONTROL UNIT - 868MHZ - 150 CONNECTABLE PERIPHERALS
Dahua cares 100% about your safety and that's why it has created a line of highly reliable alarm products , capable of protecting your home and making you feel completely safe.
The ARC3000H-FW2-868 alarm control panel uses a bidirectional 868Mhz wireless technology, and allows the connection of up to 150 peripherals - It can be used in wired, Wi-Fi, 4G, 3G or GPRS mode - Upgradable in the cloud, includes a buzzer and is equipped with a Tamper system - RJ45 00M - 2.4Ghz Wi-Fi frequency - Range up to 2,000m in open fields without obstacles - ANR function: Automatic Network Replenishment - Low battery alarm - Material: polycarbonate and ABS - Appearance: white color - High quality product - ideal for video surveillance systems.
Product details
Main features:
- Alarm Control Panel - Dahua - ARC3000H-FW2-868
- Wired, wireless, 4G/3G, GPRS mode
- Wi-Fi Frequency: 2.4Ghz
- Alarm notifications via call or SMS (up to 5 numbers can be registered)
- Status display (battery level, signal strength, temperature, program version)
- Supports up to 150 devices (including 6 sirens and 64 keyfobs)
- ANR: Automatic Network Replenishment
- Low battery warning
- RJ45 LAN 100M
- Tamper
- Video Linkage on App
- Cloud Update
- Communication distance up to 2,000m in open field without obstacles
- Operating temperature: –10 °C to +50 °C
- Power supply: 12V DC, 1.5A
- Net weight: 0.38Kg
- For desk or wall mounting
- Dimensions: 163.0mm × 163.0mm × 32.0mm
Technical data sheet
ARC3000H-FW2-868 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Input/Output | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wireless Zone | 150-channel wireless peripherals (6 sirens, 64 wireless keyfobs) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Port | 1 × RJ-45 10M/100M Ethernet port | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Mode | Single SIM (GSM:900/1800MHz, WCDMA:B1/B5/B8, LTE-FDD:B1/B3/B5/B7/B8/B20, LTE-TDD:B38/B40/B41); dual SIM single standby | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
StorageBattery | Built-in lithium battery | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Indicator Light | 1 for multiple statuses (alarm, arming, disarming, networking, and malfunction) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Button | 1 × reset, 1 × power, 1 × AP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Buzzer | Built-in | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Function | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Tamper Alarm |
Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMS | Yes (up to 5 phone numbers) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Calling Alarm | Yes (up to 5 phone numbers) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Linkage | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol | TCP/IP, including PPTP, L2TP, DHCP, UPNP, and NTP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Remote Upgrade | Cloud update | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Arm and Disarm | App; keyfob; schedule | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Failure Protection for Configured Parameters | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User Management | Share function for App users | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cache | Max. 50 entries (ANR) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Low Battery Alarm | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Search | Search for push messages, device status, and program version, and detect signal strength | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wireless | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Carrier Frequency | 868.0MHz–868.6MHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Communication Distance | Up to 2,000 m (6,561.68 ft) in an open space | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Communication Mechanism | Two way | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Encryption Mode | AES128 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wi-Fi | 2.4G | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Frequency Hopping | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | 12 V DC, 1.5 A (Europe, UK and USA power adapters are optional) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature | –10 °C to +50 °C (+14 °F to +122 °F) (indoor) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity | 10%–90% (RH) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions | 163.0 mm × 163.0 mm × 32.0 mm (6.42" × 6.42" × 1.26") (L × W × H) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions | 219.0 mm × 187.0 mm × 91.0 mm (8.62" × 7.36" × 3.58") (L × W × H) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation | Wall mount; Desktop | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight | 0.38 kg (0.84 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | 0.8kg (1.76lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications | THERE IS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing | PC + ABS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Battery Life | Storage battery standby for 12 hours |
