AJAX FIBER | 143580.111.WH1 #143580 (ex. 57206.111.WH1) Ajax Superior Hub Hybrid 4G with Jeweller/Wings and Fiber protocol. Slot for 2 4G SIM cards . Internal, anti-tampering antenna. Event and alarm delivery time: 0.15 s. Photo delivery time: 9 seconds with the default image resolution setting. 8 lines for wired Fiber devices. Up to 3.5 days of system operation with a backup battery. Color: White . Up to 100 connectable devices.
>> FREE AJAX STICKER SIGN
|
AJAX FIBER SERIES | FOR CERTIFIED PROFESSIONALS ONLY: The following products are part of a special line intended for professional projects .To purchase and install these products, you must be certified or enrolled in a certification course . Find out more. |
FIND INSTALLER
CLEARANCE SALE ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>
|
AJAX FIBER SERIES | FOR CERTIFIED PROFESSIONALS ONLY: |

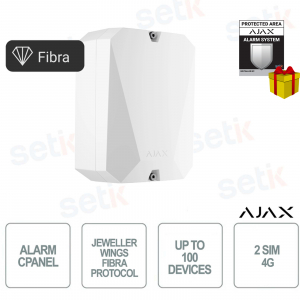

143580.111.WH1 | AJAX SUPERIOR HUB HYBRID 4G - AJAX HUB JEWELLER/WINGS/FIBER ALARM CONTROL PANEL - WHITE - 2 4G SIMs
>> FREE AJAX STICKER SIGN
AJAX SUPERIOR HUB HYBRID 4G | AJAX FIBER / JEWELLER AND WINGS ALARM CENTRAL (2 x SIM 4G, ETHERNET)
GRADE 3 EN 50131 | PD 6662 2017 | UNCERTAIN
143580.111.WH1 #143580 (ex. 57206.111.WH1) Ajax Superior Hub Hybrid 4G is the hybrid central unit of the Ajax security system. It is compatible with wired or wireless Ajax devices. It manages the operation of all connected devices and interacts with the user and the security company. It is designed for indoor installation. Hub Hybrid requires Internet access to connect to the Ajax Cloud server. Available communication channels are: Ethernet and two SIM cards. The hub is available in two versions: with 2G and 2G/3G/4G (LTE) modems. White color
- JEWELLER WIRELESS
- FIBER WIRED
|
|
SUPER GIFT | 1x AJAX PROTECTED AREA STICKER SIGN AJAX Custom Intrusion Detection System Protected Area Sticker Sign |
143580.111.WH1 | Ajax Superior Hub Hybrid 4G - Hybrid central unit compatible with Fiber / Jeweler and Wings
Main features:
- Device capable of controlling all devices, collecting their data, using communication via Ethernet and/or GPRS
- Analyze threats
- Filters false alarms by only informing you of a real threat.
- Tamper-proof, with activations and connectors inside the device
- Jeweller technology that allows the detectors to be placed up to 2,000 meters away
- Connection via GSM (GSM also as a backup connection in case of internet interruption)
- Slot for 2 4G SIMs
- Internal antenna
- Anti-tampering
- Event and alarm delivery times: 0.15 s, regardless of protocol
- Photo delivery time: 9 seconds at default image resolution setting
- 8 lines to connect wired Fiber devices
- Up to 3.5 days of system operation with battery backup
- Up to 100 connectable devices,
- Up to 50 users supported, 32 automation scenarios, 25 cameras or DVRs, 9 security groups, 50 rooms
- Alert in case of power failure
- The new devices can be connected with a simple switch and with the help of QR codes
- Check detectors every 12-300 seconds (adjustable time)
- Radio interference detection, encrypted channels in case of sabotage
- Power supply: 110-240V AC
- Quick installation
- Color: White
- Dimensions: 192 × 238 × 100 mm
143580.111.WH1 | Ajax Superior Hub Hybrid 4G - Hybrid central unit compatible with Fiber / Jeweler and Wings
| Model: Alarm | 143580.111.WH1 |
| Connected Ajax Devices | Up to 100 devices |
| Operating system | O.S. Malevich |
| Color | White |
| Connected Ajax Devices |
Up to 100 devices Including: up to 5 range extenders up to 10 sirens |
| Operating system | O.S. Malevich |
| Protocols for communication with Ajax devices |
Jeweler - for communication with wireless Ajax devices Wings - for delivery of images from wireless detectors with photo verification Fiber - for communication with wired Ajax devices |
|
Jeweler |
|
| Range | Up to 2,000 m between the hub and the device without obstacles |
| Frequency bands | 866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz |
| Radio signal modulation | GFSK |
| Maximum effective radiated power (ERP) | Up to 20 mW |
| Polling interval | From 12 to 300 seconds |
| Set by a user with administrator rights | |
| Two-sided connection | |
| Remote system settings adjustment | |
| Jamming detection in 30 seconds | |
| Authentication of devices | |
| Automatic power control to reduce power consumption and noise interference | |
| Block encryption with a floating key of all transmitted data | |
| Radio frequency hopping | |
| Wings | |
| Range | Up to 1,700 m between the hub and the detector without obstacles |
| Frequency bands | 866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz |
| Radio signal modulation | GFSK |
| Maximum effective radiated power (ERP) | Up to 20 mW |
|
Two-sided connection |
|
| Photo delivery check | |
| Package re-uploading in case of transmission errors | |
| Automatic power control to reduce power consumption and noise interference | |
| Block encryption with a floating key of all transmitted data | |
| Fiber | |
| Range | Up to 3000 meters when connected via twisted pair U/UTP cat.5 |
| Polling interval | From 12 to 300 seconds - Adjusted automatically |
| Lines | 8 wired lines. Lines are compatible with all Fiber devices. |
| Two-sided connection | |
| Remote system settings adjustment | |
| Authentication of devices | |
| 128-bit encryption with a floating key | |
| Delivery time of events, alarms, and photos | |
| Delivery time of events and alarms | 0.15 seconds regardless of the communication protocol |
| Delivery time of photos |
9 seconds with the default image resolution setting Signal strength between the hub and the detector with photo verification: 2–3 bars The hub is connected via Ethernet or LTE. The detector works directly with the hub without range extenders. |
| Hub capacity |
50 users 32 automation scenarios 25 cameras or DVRs 9 security groups 50 rooms |
| Communication channels with the Ajax Cloud server | |
| Ethernet | One 8P8C socket. Speed up to 100 Mbps |
| Mobile communication | 2 slots for full-size Mini-SIMs |
| Hub Hybrid (2G) model |
2G (GSM900/DCS1800 (B3/B8)) Automatic switching between communication channels Switching between SIMs in 4 minutes |
| User notification | |
| Supported channels | Push notification SMS Call |
| Event types | Alarm Malfunction Event Change of security modes |
| Communication with the security monitoring station | |
| Supported protocols | SurGard (Contact ID) SIA (DC-09) Proprietary protocols |
| Event types | System alarms and events Photo verification of alarms Panic button coordinates |
| Power Supply | |
| Main power supply |
110–240 V~, 50/60 Hz Mains power consumption — up to 10 W |
| Backup power supply | 12 V? battery (not included) |
| Space in the body and rails for installing batteries with a capacity of 4 Ah and 7 Ah | |
| Up to 60 hours of operation of a system of 30 wired devices from a 7 Ah backup battery | |
| Body | |
| Dimensions | 192 × 238 × 100 mm |
| Weight | 852 g |
| Operating temperature range | From −10°? to +40°? |
| Operating humidity | Up to 75% |
| Body protection class | IP50 |
| Installation method | Indoors |
| Body protection | Two tampers - for protecting the hub from opening of the body and removal from the surface |
| Service life | 10 years |
| Complete set | Hybrid Hub (2G) Power cable Battery connection cable Ethernet cable Casing Installation kit Quick start guide |
143580.111.WH1 | Ajax Superior Hub Hybrid 4G - Hybrid central unit compatible with Fiber / Jeweler and Wings
|
to connect fiber wired devices  |
|
No threat to privacy
|
|
|
|
Ready to use
|
|
|
|
system operation with battery backup |
|
|
|
FIBER:Fiber communication technology allows for cabling lines up to 2 km long. Eight lines in a system managed by a Hybrid Hub minimize the risk of failure. Even a completely down line leaves the security system with 87% uptime. With wireless sensors, this percentage increases even further.
|
57206.111.WH1 | Superior Hub Hybrid 4G - Hybrid central unit compatible with Fiber / Jeweller and Wings
>>Download the brochure
WHO IS AJAX?
Founded in 2011, Ajax creates wireless alarm and fire systems with JEWELLER wireless technology, allowing you to securely monitor all connected network devices. Ajax offers solutions for the home, office, or commercial business, managed via an app that's always up-to-date and compatible with iOS and Android systems. Ajax devices are easy to install; it takes just 15 seconds to connect the control panel to the sensors. They can also be integrated with surveillance cameras, have a virtually zero error rate, and, in the event of danger, send a notification (text message, push notification, or call) in less than 150 milliseconds.
Ajax alarm systems use cutting-edge wireless technology, making all products reliable and always connected. In addition to excellent performance, Ajax systems stand out for their modern and elegant design.
WHY CHOOSE AJAX ALARMS?
Thanks to the User and Pro applications , it is possible to have complete virtual control of the entire alarm system, 24 hours a day.
Here's the real difference compared to other competitors!
With just a few simple taps , you can:
- Arm/Disarm the alarm
- Get instant notifications
- Get detailed information about the device status
- Perform remote testing and configurations
- Automatic updates
