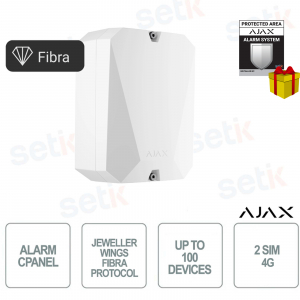

Superior Hub Hybrid 4G White Hybrid Alarm Control Panel with Fiber, Jeweler, Ethernet and Dual SIM LTE - Ajax
1 143580.111.WH1 #143580 (ex. 57206.111.WH1) | Ajax Superior Hub Hybrid (4G) fiber white is an advanced alarm control panel designed for professional systems, with support for hybrid Fiber and Jeweler communication and photographic verification of events for complete and immediate security. Thanks to Ethernet and dual SIM 4G/LTE connectivity , it guarantees operational continuity and automatic switching between communication channels. It integrates advanced anti-sabotage protection with line cut detection and device authentication, ensuring maximum reliability. It supports up to 2000 meters of communication and numerous devices between wired and wireless, making it ideal for complex systems. Configuration is quick via an app with simplified installation via QR code and complete remote management. Compliant with security standards, it represents a scalable and professional solution for intelligent protection. Ajax
>> FREE AJAX STICKER SIGN
143580.111.WH1 | HYBRID CONTROL UNIT WITH PHOTO VERIFICATION SUPPORT - CONNECTABLE VIA WI-FI, ETHERNET, AND TWO SIM CARDS (2G/3G/LTE)
>> FREE AJAX STICKER SIGN

The Superior Hub Hybrid 4G, 143580.111.WH1 (formerly 57206.111.WH1) , white Ajax is a professional alarm control panel designed for advanced systems, with hybrid Fiber and Jeweler support and photographic verification of events for immediate and precise control. Thanks to the Ethernet connection and dual SIM 4G/LTE with automatic switching , it guarantees continuity of communication even in the event of failures. It offers high capacity of up to 100 devices and management of up to 2000 meters , ideal for complex systems. It integrates advanced anti-sabotage protection and encryption for maximum security. Installation is quick via an app with QR code configuration and complete remote management. Compliant with security standards, it represents a scalable and reliable solution for professional environments.
Main specifications:
- Hybrid Fiber and Jeweler Communication
- Ethernet connection + dual SIM 4G/LTE
- Photographic verification of events
- Range up to 2000 meters
- Management of up to 100 devices
- Advanced anti-sabotage protection
- Quick installation via QR code and app
Further details
It supports Ethernet and dual SIM 4G/LTE , with automatic switching between channels to ensure operational continuity and an always-active connection.
Instant sending of alarms, events and system statuses via app and CMS, with continuous synchronization for real-time monitoring .
Technical data sheet
| Model: Alarm | 143580.111.WH1 |
| Connected Ajax Devices | Up to 100 devices |
| Operating system | O.S. Malevich |
| Color | White |
| Connected Ajax Devices |
Up to 100 devices Including: up to 5 range extenders up to 10 sirens |
| Operating system | O.S. Malevich |
| Protocols for communication with Ajax devices |
Jeweler - for communication with wireless Ajax devices Wings - for delivery of images from wireless detectors with photo verification Fiber - for communication with wired Ajax devices |
|
Jeweler |
|
| Range | Up to 2,000 m between the hub and the device without obstacles |
| Frequency bands | 866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz |
| Radio signal modulation | GFSK |
| Maximum effective radiated power (ERP) | Up to 20 mW |
| Polling interval | From 12 to 300 seconds |
| Set by a user with administrator rights | |
| Two-sided connection | |
| Remote system settings adjustment | |
| Jamming detection in 30 seconds | |
| Authentication of devices | |
| Automatic power control to reduce power consumption and noise interference | |
| Block encryption with a floating key of all transmitted data | |
| Radio frequency hopping | |
| Wings | |
| Range | Up to 1,700 m between the hub and the detector without obstacles |
| Frequency bands | 866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz |
| Radio signal modulation | GFSK |
| Maximum effective radiated power (ERP) | Up to 20 mW |
|
Two-sided connection |
|
| Photo delivery check | |
| Package re-uploading in case of transmission errors | |
| Automatic power control to reduce power consumption and noise interference | |
| Block encryption with a floating key of all transmitted data | |
| Fiber | |
| Range | Up to 3000 meters when connected via twisted pair U/UTP cat.5 |
| Polling interval | From 12 to 300 seconds - Adjusted automatically |
| Lines | 8 wired lines. Lines are compatible with all Fiber devices. |
| Two-sided connection | |
| Remote system settings adjustment | |
| Authentication of devices | |
| 128-bit encryption with a floating key | |
| Delivery time of events, alarms, and photos | |
| Delivery time of events and alarms | 0.15 seconds regardless of the communication protocol |
| Delivery time of photos |
9 seconds with the default image resolution setting Signal strength between the hub and the detector with photo verification: 2–3 bars The hub is connected via Ethernet or LTE. The detector works directly with the hub without range extenders. |
| Hub capacity |
50 users 32 automation scenarios 25 cameras or DVRs 9 security groups 50 rooms |
| Communication channels with the Ajax Cloud server | |
| Ethernet | One 8P8C socket. Speed up to 100 Mbps |
| Mobile communication | 2 slots for full-size Mini-SIMs |
| Hub Hybrid (2G) model |
2G (GSM900/DCS1800 (B3/B8)) Automatic switching between communication channels Switching between SIMs in 4 minutes |
| User notification | |
| Supported channels | Push notification SMS Call |
| Event types | Alarm Malfunction Event Change of security modes |
| Communication with the security monitoring station | |
| Supported protocols | SurGard (Contact ID) SIA (DC-09) Proprietary protocols |
| Event types | System alarms and events Photo verification of alarms Panic button coordinates |
| Power Supply | |
| Main power supply |
110–240 V~, 50/60 Hz Mains power consumption — up to 10 W |
| Backup power supply | 12 V? battery (not included) |
| Space in the body and rails for installing batteries with a capacity of 4 Ah and 7 Ah | |
| Up to 60 hours of operation of a system of 30 wired devices from a 7 Ah backup battery | |
| Body | |
| Dimensions | 192 × 238 × 100 mm |
| Weight | 852 g |
| Operating temperature range | From −10°? to +40°? |
| Operating humidity | Up to 75% |
| Body protection class | IP50 |
| Installation method | Indoors |
| Body protection | Two tampers - for protecting the hub from opening of the body and removal from the surface |
| Service life | 10 years |
| Complete set | Hybrid Hub (2G) Power cable Battery connection cable Ethernet cable Casing Installation kit Quick start guide |
