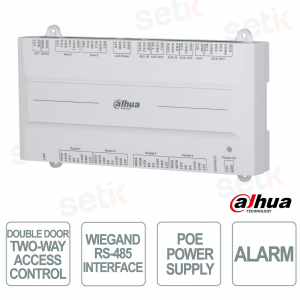

Dahua ASC4202B-D Dual-Door Bidirectional Access Controller with RFID, QR Code, Fingerprint, and PoE AI

Dahua ASC4202B-D Dual-Door Bidirectional Access Controller with RFID, QR Code, Fingerprint, and PoE AI

BEST PRICE -56% New

ASC4202B-D is an advanced bi-directional dual-door access controller, designed for professional systems with high security and centralized management. Based on Embedded Linux , it supports up to 100,000 users , 100,000 cards , 10,000 fingerprints and 500,000 events , ensuring high performance and scalability. It integrates multiple authentication methods including card, password, fingerprint and QR code , with multi-factor authentication and advanced functions such as anti-passback, multi-door interlock and remote verification . Thanks to TCP/IP connectivity, PoE support and compatibility with DMSS and DSS Pro platforms, it offers real-time control and monitoring. Equipped with expandable alarm inputs and outputs , it is ideal for enterprise applications and integrated security systems. Dahua

Technical Data Sheet

Reference: ASC4202B-D

Brand: Dahua

EAN: 6939554900587

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


ASC4202B-D | DUAL ACCESS CONTROL FOR TWO-WAY DOORS


Dahua

The Dahua ASC4202B-D is a professional bi-directional dual-door access controller, ideal for advanced security systems and corporate environments. Based on Embedded Linux , it supports up to 100,000 users , 100,000 cards , 10,000 fingerprints and 500,000 records , ensuring high scalability. It integrates multiple authentication methods such as card, password, fingerprint and QR code , with multi-factor authentication and advanced functions such as anti-passback and multi-door interlock . Thanks to TCP/IP connectivity, PoE support and compatibility with DMSS, DSS Pro and SmartPSS Lite , it allows real-time management and monitoring. Equipped with expandable alarm inputs and outputs , it represents a complete solution for modern access control.

Main specifications:

- Bidirectional Double Door: simultaneous management of two accesses with advanced control and high security

- High capacity: up to 100,000 users, 100,000 cards, 10,000 fingerprints and 500,000 events

- Advanced authentication: card, password, QR code and fingerprint support with multi-factor authentication

- Security functions: anti-passback, multi-door interlock, remote verification and intelligent access management

- Full connectivity: TCP/IP network, PoE power supply and compatibility with Dahua platforms

- Alarm Inputs/Outputs: event management with expandable inputs and outputs for security system integration

Further details

System:
Based on Embedded Linux with a dedicated processor, it supports IPv4, IPv6, TCP, UDP and P2P protocols, as well as ONVIF Profile C standards, ensuring complete integration with security and management platforms via API and SDK .

Functions:
It offers multiple access methods including card, password, fingerprint and QR code , with multi-factor authentication , advanced functions such as anti-passback , multi-door interlock , remote verification and real-time monitoring.

User :
Advanced management of different user profiles such as VIPs, guests, standard users and blacklists , with customizable configurations for each category and detailed access control.

Capacity:
Supports up to 100,000 users , 100,000 cards , 10,000 fingerprints and 500,000 event records , ideal for medium and large installations.
Doors:
Equipped with 5 RS-485 ports , Wiegand inputs , RJ-45 port and interfaces for external readers and devices, offering maximum expandability and integration into access control systems.
Alarm:
Complete system with expandable alarm inputs and outputs , supporting events such as intrusion, tampering, duress, unauthorized use and door timeout , for advanced security management.

Technical data sheet

MODEL ASC4202B-D
System
Main Processor Embedded Processor
Network Protocol IPv4;UDP;P2P;IPv6;TCP
OSDP Protocol Yes
Interoperability ONVIF PROFILE C
SDK Yes
API Yes
Basic
Product Type Controller
Buzzer Yes
Casing Material PC+ABS
Function
Verification Method Card;Password;Fingerprint;Remote;QR Code
Period List 128 groups
Holiday Period 128 groups
Network Update Yes
First User Unlock Yes
Remote Verification Yes
Restricted List/Trusted List Yes
Peripheral Card Reader Supports 4-channel RS-485 card readers and 4-channel Wiegand card readers.
Multi-door Interlock Yes
Multi-user Authentication Yes
Real-time Monitoring Yes
Multi-factor Authentication Yes
Web Configuration Yes
Unidirectional or Bidirectional Bidirectional
User
User (Card) Type General user, VIP user, patrol user, guest user, blocklist user, other users, custom user 1 and custom user 2
Capacity
User Capacity 100,000
Fingerprint Capacity 10,000
Card Capacity 100,000
Record Capacity 500,000
Port
RS-485 5 ports. 4 for card readers, and the remaining 1 is for the extension port.
Wiegand 4-channel input
Network Port 1 RJ-45, 10 Mbps/100 Mbps self-adaptive
Alarm Input 4 channels; expandable to 8 channels when connected to an external alarm module.
Alarm Output 4 channels; expandable to 8 channels when connected to an external alarm module.
Alarm Linkage Yes
Exit Button 2 channels
Door Status Detection 2 channels
Lock Control 2 channels
Alarm
Anti-pass Back Yes
Tamper Alarm Yes
Duress Alarm Yes
Door Sensor Timeout Yes
Intrusion Yes
Illegal Card Exceeding Threshold Yes
Duress Fingerprint Yes
General
Power Supply Standard PoE;
12 VDC 1A(no peripheral devices
Power Consumption ≤ 3W; it might alter if other devices are connected
Product Dimensions 210.0 mm × 106.0 mm × 34.1 mm (8.27" × 4.17" × 1.34") (L × W × H)
Packaging Dimensions 255 mm × 166 mm × 87 mm (10.04" × 6.54" × 3.43") (L × W × H, 1 in inner carton)
512 mm × 269 mm × 196 mm (20.16" × 10.59" × 7.72") (L × W × H, carton)
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity 5%–95% (RH), non-condensing
Operating Environment Indoor
Gross Weight 0.54 kg (1.19 lb)
Installation Surface Mount;Guide Rail Mount
