DS-KD8003Y-IME2 Outdoor Station, Two-wire / 2 Wires , Backlighting, Physical Button, Fish eye Optical Camera, 2MP Resolution , IR and WDR, H.264 Video Compression, Integrated Omnidirectional Microphone and Speakers, Noise Suppression and Sound Cancellation eco, RS-485, 1 Tampering Alarm Input, 4 Alarm Inputs, 2 Relay Outputs, Powered by a KAD704Y or KAD706Y series distributor, IP65 protection rating, Flush/Wall mounting
CLEARANCE SALE ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

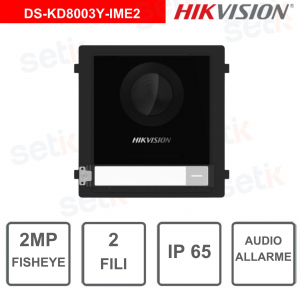

DS-KD8003Y-IME2 | HIKVISION MODULAR OUTDOOR STATION - TWO-WIRE 2 WIRE - AUDIO ALARM - 2 MEGAPIXEL FISH EYE HD CAMERA

CAMERA INTEGRATED IN THE DEVICE: with 2 megapixel resolution, equipped with infrared illuminator up to 3m |
CONNECTION: Connection via RS-485 port |
ALARM IN/OUT: 4 Inputs (2 exit buttons and 2 door contacts by default) |
REMOTE CONTROL: remote opening with monitor or app |
PROTECTION: IP65, protection against dust and water jets + 1 anti-tampering tampering alarm |
DIET: Power: Powered by a KAD704Y or KAD706Y series distributor |
Data sheet
| System Parameters | Description |
|---|---|
| Operation System | Embedded Linux operation system |
| ROM | 32MB |
| RAM | 256MB |
| Processor | Embedded Processor |
| Display Parameters | |
| Screen Size | / |
| Operation Method | / |
| Type | / |
| Resolution | / |
| Video Parameters | |
| Lens | 1 |
| Resolution | 2 MP |
| FOV (Horizontal:Vertical:) | 146th, 82nd |
| Wide Dynamic Range (WDR) | Support |
| Supplement Light | IR light, up to 3 m |
| Video Compression Standard | H.264 |
| Audio Parameters | |
| Audio Input | 1 built-in omnidirectional microphone |
| Audio Compression Standard | G.711U, G.711A |
| Audio Output | 1 built-in loudspeaker |
| Audio Compression Bitrate | 64Kbps |
| Audio Quality | Noise suppression and echo cancellation |
| Volume Adjustment | Adjustable |
| Capacity | |
| User Capacity | 2000 |
| Face Capacity | NA |
| Fingerprint Capacity | / |
| Message Capacity | / |
| Linked Indoor Station Capacity | 500 |
| Sub Door Station Capacity | 16 |
| Network Parameters | |
| Network Protocol | NA |
| Wifi | / |
| Bluetooth | / |
| 3G/4G | / |
| Device Interfaces |
|
| Installation | |
| Installation Method | Surface mounting, flush mounting |
| Indicator | / |
| Weight | Net weight: 0.380 kg, Gross weight: 0.541 kg |
| Protective Level | IP65 |
| Working Temperatures | -40° C to 60° C (-22° F to 140° F) |
| Working Humidity | 10% to 90% |
| Dimension (W × H × D) | 100mm × 98mm × 42mm |
| Power Supply | Powered by KAD704Y or KAD706Y series distributor |
| Power Consumption | ≤ 4W |
| Language Support | English, French, Portuguese, Brazilian Portuguese, Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Slovak |
