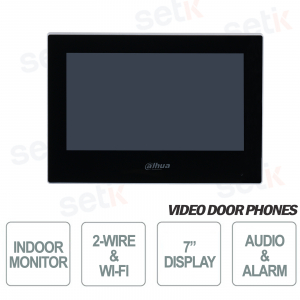

Internal station 2 wires and WIFI Dahua VTH2622G-W internal SIP monitor 7" TFT touch screen 1024X600, G.711a Audio Compression, 6 inputs + 1 alarm output, 1 Audio Input, Speaker, WI-FI Frequency IEEE802.11b/g/n , Viewing dahua IP cameras, surface mounting, black colour.
DAHUA: LOSS LEADER×
INCREDIBLE DISCOUNTS
on a selection of DAHUA products
Check out the promo now >>
CLEARANCE SALE ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>
INDOOR STATION 2-WIRE/WIFI DAHUA MONITOR SIP 7" - AUDIO AND ALARM - BLACK

Product Details:
![]()
|
Data sheet
| Model | VTH2622G-W |
| Main Processor | Embedded processors |
| Operating System | Embedded Linux operating system |
| Interoperability | ONVIF®; SDK |
| Network Protocol | RTSP; RTP; SIP; DNS; SSH |
| ROM | 128MB |
| RAM | 128MB |
| CPU | Dual core 1.2GHz |
| Screen Type | Capacitive touchscreen |
| Display | 7" TFT |
| Screen Resolution | 1024×600 |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 |
| Audio Output | Built-in speaker |
| Audio Mode | 2-way Audio |
| Audio Enhancement | Echo suppression |
| Audio Bit Rate | 16kHz; 16 bits |
| Communication Mode | Digital 2-wire |
| Information Release | Receive and view text information released by the management center |
| Leave Videos | Yes (SD card inserted in VTO is needed) |
| DND Mode | Do not disturb period can be set; Do not disturb mode |
| Number of Extensions | Villa: 3 Apartment: 2 Wi-Fi intercom: 1 main monitor, 2 extension monitors |
| Wifi | Yes |
| Wireless Standard | IEEE802.11b/802.11g/802.11n |
| Wireless Frequency Range | 2.4 GHz |
| Wireless Security Encryption | WPA/WPA2;WPA-PSK/WPA2-PSK |
| Casing | PC + ABS |
| Alarm Input | 6 |
| Alarm Output | 1 |
| Door Bell | Yes (use any alarm input port) |
| Network | One two-wire port and one 10Mbps/100Mbps Ethernet port (one of them can be selected) |
| Appearance Color | Black |
| Power Supply | 48 VDC 1.25 A |
| Installation | Surface Mount |
| Certifications | THERE IS; FCC |
| Dimensions | 189.6 mm × 134.6 mm × 26.0 mm (7.50" × 5.30" × 1.00") |
| Operating Temperature | –10°C to +55°C (+14°F to 131°F) |
| Operating Humidity | 10%–95% RH (non-condensing) |
| Operating Altitude | Beneath 3000 m (9842.52 ft) |
| Power Consumption | Standby ≤ 2W; working ≤ 6 W |
| Net Weight | 0.34 kg (0.74 lb) |
| Gross Weight | 0.58 kg (1.27 lb) |
Further details
![]() | 7" TFT Touch Screen 1024x600 display |
| Two-way audio (Built-in Audio Input and Speaker) | |
![]() | 6 Alarm Inputs + 1 Alarm Output |
| This product is covered by a 24 month warranty. |
