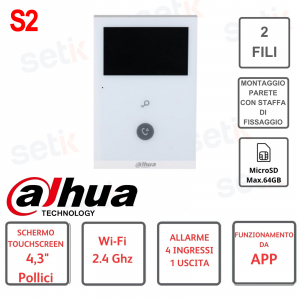

WI-FI MONITOR - 4.3 INCH TFT - TOUCHSCREEN - 2 WIRES - TWO-WAY AUDIO - SPEAKER - ALARM - DAHUA - VTH5113H-W-S2

 DESCRIPTION:
 The VTH5113H-W-S2 station from Dahua is one of the best indoor monitors on the market.
 Equipped with 4.3" 480 x 272 TFT Capacitive Touch Screen Display, Two-way Audio, Speaker and Echo Suppression - 4 Alarm Inputs / 1 Alarm Output - Micro SD Card Slot up to 64GB (sold separately).
 Ideal for wall mounting (bracket included) - Doorbell - RS485 - Wi-Fi 2.4 GHz - Operating System
 Color White.
Product Details:

- Indoor Wi-Fi Monitor 4.3 inch TFT capacitive touchscreen - Dahua - VTH5113H-W-S2
 - Embedded Processor
 - 2-wire interface
 - 4.3" TFT capacitive touch screen display, 480x 272
 - Alarm integration, with 4 inputs and 1 output
 - Two-way audio
 - Built-in speaker
 - Echo suppression
 - Doorbell
 - Supports DND (Do Not Disturb) mode
 - Interface 1 RS-485
 - Wi-Fi 2.4 GHz IEEE802.11b/802.11g/802.11n
 - Micro SD Card Slot (Max 64GB, sold separately)
 - Number of interiors 5
 - Wall mountable, with bracket included
 - Power supply: 2-wire switch
 - Serving temperature: -10°C to +55°C
 - Relative humidity: 10%-95% RH (non-condensing)
 - Altitude: maximum 3000m
 - S2 Version
 - Dimensions: 176.3mm × 119.3mm × 20.0mm
 - Item net weight: 548.5g
 - High quality product
 - Material: Polycarbonate + ABS
 - Color: White
 - 24 month warranty

Technical data sheet
System  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Processor  | Embedded Processor  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating System  | Embedded Operating System  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol  | IPv4;UDP;DNS;TCP  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Basic  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Screen Type  | Capacitive Touchscreen  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Display Screen  | 4.3" TFT  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Screen Resolution  | 480 (H) × 272 (V)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Compression  | G.711a; G.711u; PCM  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input  | 1 channel  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output  | Built-in speaker  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Mode  | Two-way audio with VTO (half–duplex); Two-way audio with app (full-duplex)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Enhancement  | Echo suppression/digital noise reduction  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Bitrate  | 16kHz; 16bit  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Function  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Leave Videos  | Yes (SD card needed)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DND Mode  |  Do not disturb period can be set;  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Number of Extensions  |  Villa: 4  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wi-Fi  | Yes  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wireless Standard  | IEEE802.11b/802.11g/802.11n  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wireless Frequency Range  | 2.4GHz  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage  |
 Micro SD card (up to 64 GB)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-485  | 1  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Input  | 4  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AlarmOutput  | 1 channel  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Output  | 1 (12V, 200mA)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Door Bell  | Yes (use the alarm input port)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Performance  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing Material  | PC + ABS  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Appearance Color  | White  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply  | 2-wire controller  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Adapter  | Optional  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation  | Surface Mount  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications  | THERE IS  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Accessories  |  Included: Power cord, alarm ribbon cable, bracket, branch terminal  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions  | 176.3 mm × 119.3 mm × 20.0 mm (6.94" × 4.70" × 0.79") (L × W × H)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature  |
–10 °C to +55 °C (+14 °F to +131 °F)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity  | 10%–95% (RH)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Altitude  | 0 m–3000 m (0 ft–9842.52 ft)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption  | ≤2.2W (standby), ≤10W (working)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight  | 548.5g (1.21lb)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
