VTO4202FB-P1 - Onvif PoE two-wire IP outdoor station with integrated camera with 2MP CMOS sensor of 1/2.9" and viewing angle of 168.6°. Compatible with two-wire and RJ45 interface. 1 exit button, 2-way voice communication. Power supply 48 VDC, 1 A; PoE. IP65 and IK07. Black color. Dahua.
DAHUA: LOSS LEADER×
INCREDIBLE DISCOUNTS
on a selection of DAHUA products
Check out the promo now >>
CLEARANCE SALE ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

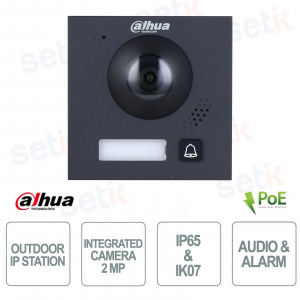

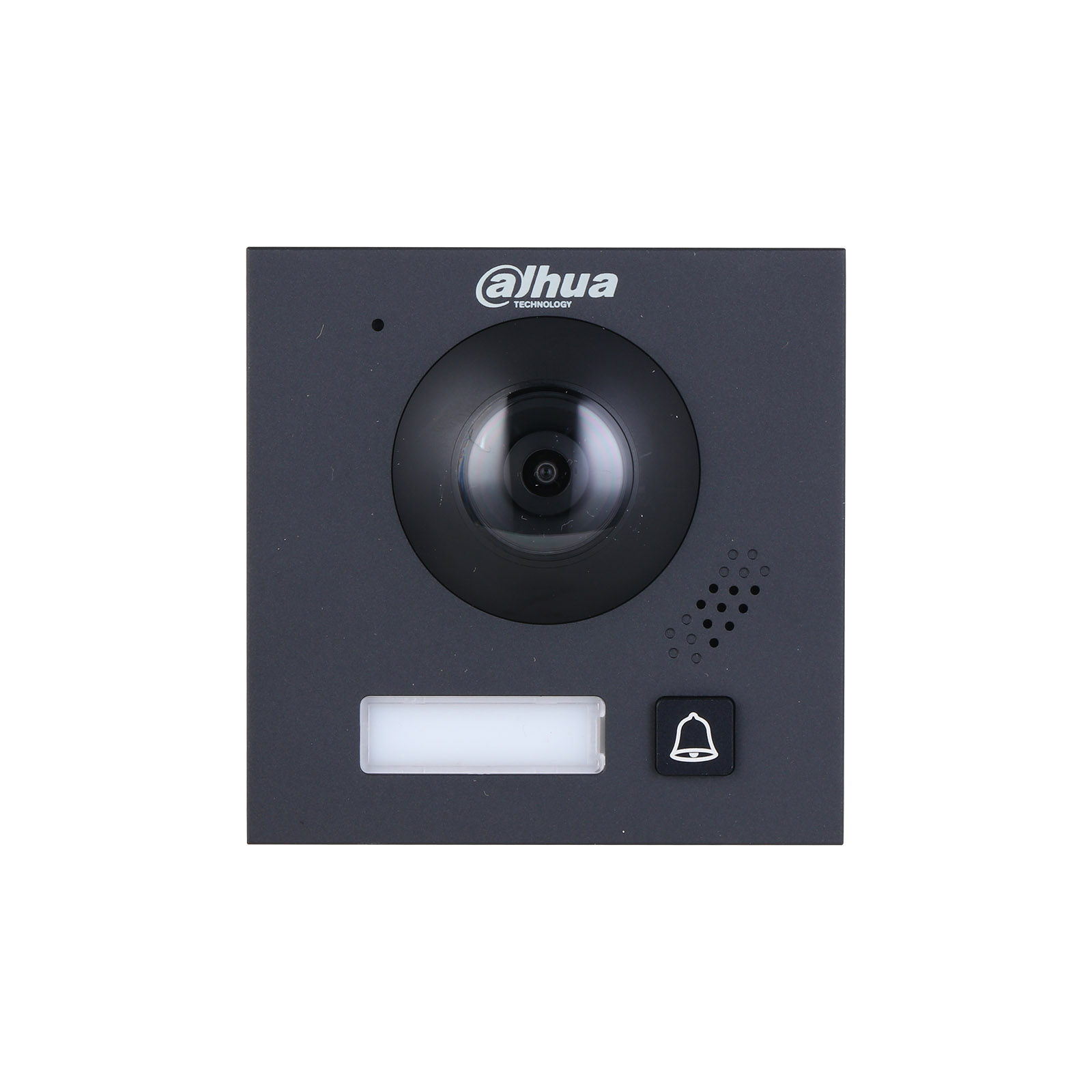

STEEL OUTDOOR STATION WITH CAMERA - SPEAKER - BLACK - DAHUA
DESCRIPTION:
The external station Dahua's VTO4202FB-P1 is one of the best stations on the market
Ideal for installations in villas thanks to its refined design.
Equipped with adjustable camera with 2Mp CMOS sensor, it allows a viewing angle of about 168.6°. Black color
Product Details:
|
Technical data sheet
| Model | VTO4202FB-P1 |
| System | |
| Main Processor | Embedded processor |
| Operating System | Embedded Linux Operation System |
| Button Type | Mechanical |
| Number of Buttons | 1 |
| Interoperability | ONVIF®; CGI |
| Network Protocol | UDP; TCP; IPv4; DNS; RTSP; UPnP; SIP; P2P; RTP |
| Basic | |
| Room | 1/2.9" 2MP CMOS |
| Field of View | Horizontal: 168.6°; vertical: 87.1; diagonal:176.7° |
| WDR | 120dB |
| Noise Reduction | 3D NR |
| Video Compression | H.265; H.264 |
| Video Resolution | Main stream:720p; WVGA; D1; CIF Sub stream:1080p; WVGA; D1; QVGA; CIF |
| Video Frame Rate | 25fps |
| Video Bitrate | 256Kbps to 8Mbps |
| Light Compensation | Auto IR |
| Day/Night | Auto (ICR)/Color/B/W; Color/B/W |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 channel |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression/digital noise reduction |
| Audio Bitrate | 16KHz, 16Bit |
| Function | |
| Communication Mode | Digital 2-wire |
| Unlock Mode | Remote |
| Leave Videos | Yes (SD card is inserted in the indoor monitor or door station) |
| Storage | Supports Micro SD card (up to 256 GB) |
| WebConfiguration | Yes |
| Performance | |
| Casing Material | Aluminum |
| Capacity | |
| Card Capacity | 3000 |
| Fingerprint Capacity | 3000 |
| Port | |
| Electric Lock | 1 |
| AlarmOutput | 1 |
| Power Output | 1 port, 12V/600mA |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1 |
| Network Port | 1 × RJ-45 port, 10/100 Mbps network port |
| Alarm | |
| Tamper Alarm | Yes |
| General | |
| Appearance color | Black |
| Power Supply | Dahua 2-wire switch (max. power supply distance 50 m) 48 VDC, 1 A; PoE (802.3af/at) |
| Power Adapter | Optional |
| Installation | Flush Mount; Surface Mount |
| Certifications | THERE IS |
| Accessories | Surface mount box (optional); flush mount box (optional); rain cover (optional) |

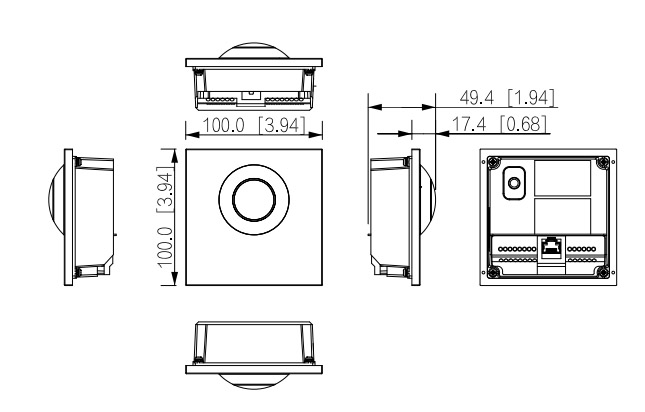

| Product Dimensions | 100.0 mm × 100.0 mm × 49.4 mm (3.94" × 3.94" × 1.94") |
| Protection | IK07; IP65 |
| Operating Temperature | –30°C to +60°C (–22°F to 140°F) |
| Operating Humidity | 10%–90% (RH, non-condensing) |
| Operating Environment | Outdoor |
| Operating Altitude | 0 m–3000 m (0 ft–9842.52 ft) |
| Power Consumption | ≤4W (standby), ≤5W (working) |
| Gross Weight | 0.43 kg (0.95 lb)) |
| Storage Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
| Storage Humidity | 30%–75% (RH), non-condensing |
Further details
![]() |
Camera built into the device. 2Mp CMOS image sensor |
![]() |
Connection via RJ-45 Ethernet LAN port (10M/100Mbps) |
![]() |
1 Alarm Output |
![]() |
Possibility of integration into a VOIP system , as if it were a common VoIP line. It is possible to answer from any internal VoIP station.
|
![]() |
Station suitable for outdoor environments thanks to the Waterproof feature |
![]() |
Vandal-resistant all-steel panel |
|
|
Power 48 VDC, 1 A; PoE (802.3af/at) |
| This product is covered by a 24 month warranty. |
