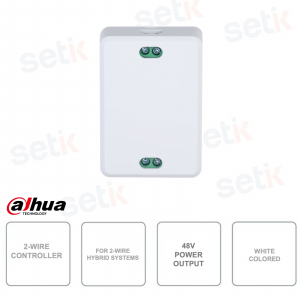

VTNC1003C-D | TWO-WIRE CONTROL UNIT - FOR HYBRID TWO-WIRE SYSTEMS

Dahua

The Dahua VTNC1003C-D controller is the ideal solution for managing 2-wire video intercom systems stably and efficiently. Easy to install on a DIN rail, it ensures separation between power and signal, reducing interference and improving video and audio transmission quality.

Main specifications:

- Quick and easy installation on DIN rail

- Isolation between power and signal for stable performance

- 48V low consumption power supply (3.5W)

- Compact and lightweight: only 74.9×46.7×28.7 mm

- Resistant to extreme temperatures from -10°C to +55°C

- CE certified, ideal for safe and professional installations

Further details

Two-Wire Hybrid System:
The VTNC1003C-D controller operates in hybrid two-wire systems, separating power and signal. This technology improves transmission stability by preventing interference and signal loss during video and audio communication, with simple wiring and DIN-rail installation.
Quality Certification :
The device is CE certified, synonymous with quality and compliance with European standards for electrical safety and reliability. It is therefore suitable for residential and professional installations throughout Europe.
Reduced Energy Consumption :
With a maximum power consumption of only 3.5W and a 48V (0.9A) power supply, the VTNC1003C-D ensures maximum energy efficiency, reducing operating costs even in continuous and long-term installations.

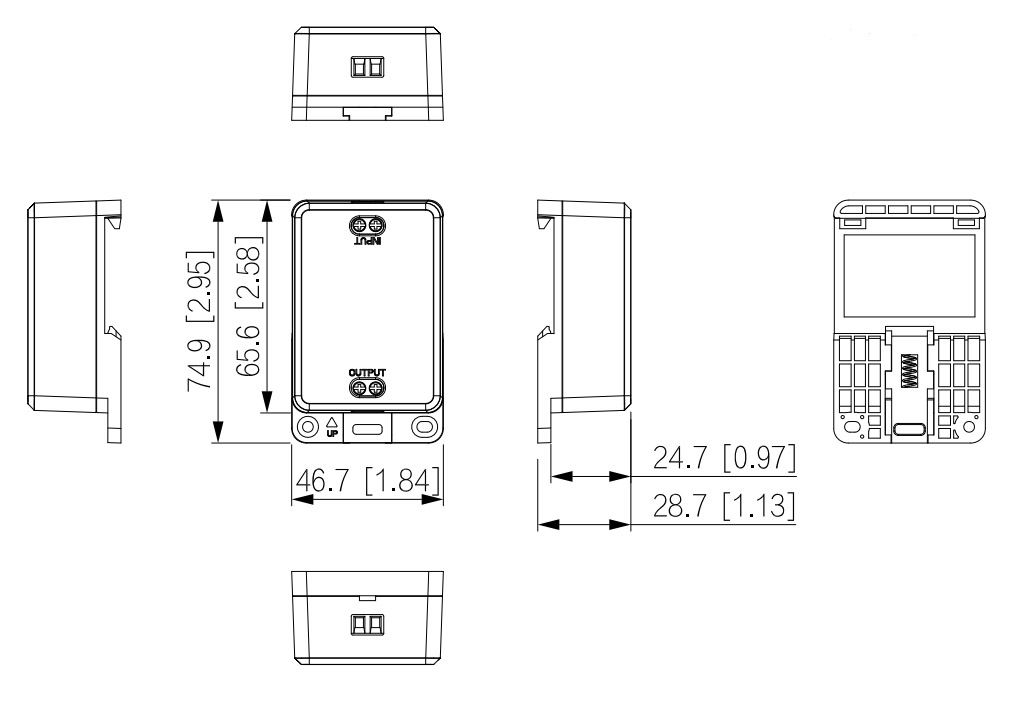

VTNC1003C-D dimensions

Technical data sheet

VTNC1003C-D

Performance

Casing Material

PC + ABS

General

Appearance Color

White

Power Supply

48V 0.9A

Certifications

THERE IS

Product Dimensions

74.9 mm × 46.7 mm × 28.7 mm (2.95" × 1.84" × 1.13") (L × W × H)

Operating Temperature

–10 °C to +55 °C (14 °F to +131 °F)

Operating Humidity

10%–95% (RH)

Operating Altitude

0 m–3,000 m (0 ft–9,842.51 ft)

Power Consumption

3.5 W

Gross Weight

0.31 kg (0.68 lb)

Storage Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Storage Humidity

≤95% (RH), non-condensing

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
