The ICS-MBE-1C is a column base designed for the professional installation of D-Volt Air and D-Volt Pro charging stations in areas without wall supports. Made with a high-strength steel structure , it offers high stability, robustness and long life even in outdoor environments. The free-standing design allows for the creation of tidy, safe and easily accessible charging stations in public car parks, companies, hospitality facilities and residential contexts, ensuring perfect integration with Dahua EV Chargers .

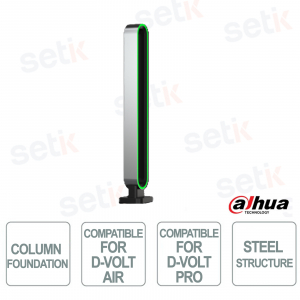

ICS-MBE-1C | COLUMN BASE FOR EV D-VOLT AIR & EV D-VOLT PRO

The Dahua ICS-MBE-1C column base is the ideal solution for installing D-Volt Air and D-Volt Pro charging stations in environments where wall mounting is not available. Made with a high-strength steel structure , it guarantees maximum stability, robustness and long life even in outdoor installations. The free-standing design allows for professional and tidy installation, making it perfect for car parks, companies, hospitality facilities and public areas, ensuring seamless integration with Dahua EV Chargers .
Main specifications:
- Type: Self-supporting column base
- Compatibility: Dahua D-Volt Air and D-Volt Pro
- Material: High strength steel
- Installation: Stable and professional floor mounting
- Use: Ideal for car parks, businesses and public areas
- Advantages: High stability, durability and integration with Dahua EV charging stations
Further details
Technical data sheet
| ICS-MBE-1C | |
| Power Input | |
| Input Voltage | 100–240 VAC |
| Frequency | 50–60 Hz |
| Standby Power Consumption | <0.5 w="" td=""> |
| Input Current | Max 0.11 A (Green), 0.09 A (Blue) |
| Structure Design | |
| Status Indicator Light | The green light indicates that the EV charger is available, and the blue light indicates it is unavailable. |
| Strength | Supports cold start at temperatures as low as –40 °C (–40 °F). |
| Protection | IP65 |
| Communication | |
| Port | RS-485 |
| Update Method | Update through RS-485 port |
| Environment Indicator | |
| Operating Humidity | ≤95% (RH), non-condensing |
| Operating Temperature | –30 °C to +50 °C (–22 °F to +122 °F) |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Package Information | |
| Product Dimensions | 250.0 mm × 268.0 mm × 1,600.0 mm (9.84" × 10.55" × 62.99") (L × W × H) |
| Packaging Dimensions | 1,729.0 mm × 383.0 mm × 303.0 mm (68.07" × 15.08" × 11.93") (L × W × H) |
| Net Weight | 20.0 kg ±1.0 kg (44.09 lb ± 2.20 lb) |
| Gross Weight | 26.0 kg ± 1.5 kg (57.32 lb ± 3.31 lb) |
| Installation | |
| Installation Environment | Supports both indoor and outdoor installation in well-ventilated areas, suitable for environments that are free from oil, flammable materials, explosives, and harsh chemicals. |
| Installation | Vertical pole mount |
| Input Wire | Wire cross-section: 3 × 0.75 mm2 (18 AWG) 1-Phase |
| Safety Protection | |
| Security Protection | Protects against surges, overtemperature, overvoltage, overcurrent, lightning and short circuits. |
| Certifications | THERE IS; EN 60598-1; EN 60598-2-1; EN 62031; IEC TR 62778; EN 62471 |
