RS2768 - The 27U RACK 19" cabinet is a professional, ready-to-assemble floor-standing solution, ideal for integrating CCTV, LAN, RTV, AC and I&HAS systems . It offers external dimensions of 600 × 1388 × 800 mm and a mounting depth of 560 mm , with adjustable front and rear RACK rails. The SPCC RAL 9004 cold-rolled steel structure integrates a 5 mm tempered glass front door , removable side panels and a rear door. It supports a static load of up to 1000 kg , has cable ducts, provision for up to 3 RAWP ventilation units , 4 wheels and 4 leveling feet. Designed for indoor use, it guarantees IP20 protection and RoHS compliance. Pulsar

Technical data sheet

Reference: RS2768

Brand: Pulsar

Manufacturer Object ( [id] => 37 [name] => Pulsar [description] =>

The company is a leader in Poland in this sector but is present in many countries in Asia and Europe, so much so that it is growing both in terms of number of sales and the number of new markets in which it is making its way. The quality of the products and the service provided to customers are the strong points that have made the Pulsar brand so successful. The company is attentive to the production process and to the development of new research methods in order to guarantee a service that always meets the needs of customers. Pulsar is constantly expanding the range of products offered, ranging from accessories for alarm systems to those for video surveillance systems. Among the proposals of Pulsar are: accessories for metal containers and for RACK power supplies and cabinets and accessories for cabinets.

[short_description] =>

Accessori impianti allarme Pulsar

Since 1994, Pulsar has been distinguished by the production of access controls and accessories and components for alarm systems and video surveillance systems.

[id_address] => [date_add] => 2019-06-07 15:19:24 [date_upd] => 2020-06-18 15:49:37 [link_rewrite] => pulsar [meta_title] => Alarm components Pulsar [meta_keywords] => Alarm components Pulsar, box pulsar [meta_description] => Pulsar is a manufacturer of components for alarm and active access control systems from 1994. Discover now the wide range of Pulsar accessories available online! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER

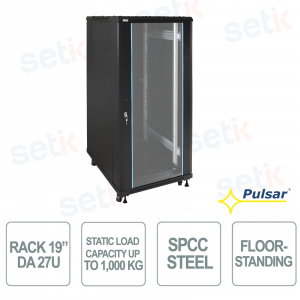

RS2768 | 27U 19" FLOOR-STANDING RACK CABINET

Dahua

The 27U Pulsar RS2768 19" RACK cabinet is a ready-to-assemble floor-standing solution, ideal for integrating CCTV, LAN, RTV, AC and I&HAS systems in professional installations. With external dimensions of 600 × 1388 × 800 mm and a useful depth of 560 mm , it offers adjustable front and rear RACK rails. The SPCC RAL 9004 cold-rolled steel structure integrates a 5 mm tempered glass front door , removable side panels and a rear door. It supports a static load of up to 1000 kg , has cable channels, provision for up to 3 RAWP ventilation units , 4 wheels and 4 levelling feet. For indoor use it guarantees IP20 protection and RoHS compliance.

Main specifications:

  • Format: RACK 19" – 27U
  • Dimensions: 600 × 1388 × 800 mm
  • Depth: 560 mm
  • Static load: 1000 kg
  • Structure: SPCC steel
  • Door: 5mm tempered glass
  • Ventilation: up to 3 RAWP
  • Mobility: 4 wheels + 4 feet
  • Protection: IP20
  • Compliance: RoHS

Further details

Static load :
The Pulsar RS2768 RACK cabinet is designed to support a maximum static load of 1000 kg when installed on the levelling feet , offering a robust solution for housing professional CCTV, LAN, RTV and security system equipment.
Structure:
Made of SPCC cold rolled steel , it features 2 mm RACK guides, 1.5 mm horizontal guides and 1.2 mm welded frame with RAL 9004 finish ; it also integrates a 5 mm tempered glass front door , removable side panels and a hinged rear door.
Ventilation:
Designed to promote proper air circulation , it features ventilation holes on the front door and on the top and bottom panels ; the top panel also allows the installation of up to 3 RAWP fan units , improving the thermal management of the installed equipment.
Mobility :
The cabinet comes with 4 non-locking castors , which make it easy to move and position during installation, and 4 leveling feet , which are useful for ensuring stability and properly supporting the static load of up to 1000 kg .

Technical data sheet

MODEL RS2768
Mounting dimensions 19" x 27U x 560 mm
Dimensions 600 x 1388 x 800 [+/-2 mm]
distance from the substrate: 72 mm
Type Cabinets floor standing, self-assembly
Supported weight 1000kg - with leveling legs
Lock front door – lock (RAZ-S, same code)
rear door – lock (RAZ25, same code)
side panel – Click (possibility of mounting the key lock – RAZB16)
Feasibility SPCC cold formed steel, 1.2mm, 1.5mm, 2mm, RAL9004 (black), metallic
Protection grade EN60529 IP 20
Warranty 1 year from date of manufacture
Attention - including 4 casters without brakes, 4 leveling legs
- possibility to move the door from left to right
