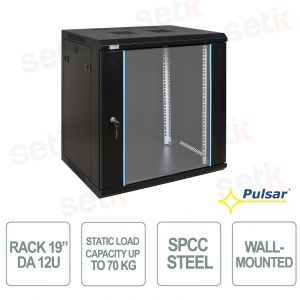

RW1264 19" 12U 600x450 Wall-Mounted IP20 RACK Cabinet for CCTV, LAN and Security Systems - Pulsar

RW1264 19" 12U 600x450 Wall-Mounted IP20 RACK Cabinet for CCTV, LAN and Security Systems - Pulsar

-58%

RW1264 - The 12U 19" RACK cabinet is a professional, fully assembled wall-mounted solution, ideal for integrating CCTV, LAN, RTV, AC and I&HAS systems in homes and small businesses. With external dimensions of 600 × 636 × 450 mm and a mounting depth of 270 mm , it offers adjustable RACK rails and a robust SPCC RAL 9004 steel structure. The 5 mm tempered glass front door is lockable and reversible with right or left opening. The cabinet supports a static load of up to 70 kg , has top and bottom cable glands, ventilation provision and lockable side panels. Designed for indoor use, it guarantees IP20 protection and RoHS compliance. Pulsar

Technical data sheet

Reference: RW1264

Brand: Pulsar

Manufacturer Object ( [id] => 37 [name] => Pulsar [description] =>

The company is a leader in Poland in this sector but is present in many countries in Asia and Europe, so much so that it is growing both in terms of number of sales and the number of new markets in which it is making its way. The quality of the products and the service provided to customers are the strong points that have made the Pulsar brand so successful. The company is attentive to the production process and to the development of new research methods in order to guarantee a service that always meets the needs of customers. Pulsar is constantly expanding the range of products offered, ranging from accessories for alarm systems to those for video surveillance systems. Among the proposals of Pulsar are: accessories for metal containers and for RACK power supplies and cabinets and accessories for cabinets.

[short_description] =>

Accessori impianti allarme Pulsar

Since 1994, Pulsar has been distinguished by the production of access controls and accessories and components for alarm systems and video surveillance systems.

[id_address] => [date_add] => 2019-06-07 15:19:24 [date_upd] => 2020-06-18 15:49:37 [link_rewrite] => pulsar [meta_title] => Alarm components Pulsar [meta_keywords] => Alarm components Pulsar, box pulsar [meta_description] => Pulsar is a manufacturer of components for alarm and active access control systems from 1994. Discover now the wide range of Pulsar accessories available online! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


RW1264 | 12U 19" WALL-MOUNTED RACK CABINET

Dahua

The 12U Pulsar RW1264 19" RACK cabinet is a fully assembled wall-mounted solution, designed to organize CCTV, LAN, RTV, AC and I&HAS systems in homes and small businesses. It offers external dimensions of 600 × 636 × 450 mm and a mounting depth of 270 mm , with adjustable front and rear RACK guides. The SPCC RAL 9004 steel structure integrates a 5 mm tempered glass front door , reversible with right/left opening and equipped with a lock. It supports a static load of up to 70 kg , has top and bottom cable passages and provision for ventilation. For indoor use it guarantees IP20 protection and RoHS compliance.

Main specifications:

  • Format: RACK 19" – 12U
  • Dimensions: 600 × 636 × 450 mm
  • Depth: 270 mm
  • Static load: 70 kg
  • Structure: SPCC steel
  • Door: 5mm tempered glass
  • Opening: reversible right/left
  • Ventilation: pre-arranged
  • Protection: IP20
  • Compliance: RoHS

Further details

Static load :
The Pulsar RW1264 RACK cabinet supports a maximum static load of 70 kg , offering adequate capacity to accommodate CCTV, LAN, RTV, AC and I&HAS systems in wall-mounted installations for homes and small businesses.
Structure:
Made from SPCC cold rolled steel , it features 1.5mm RACK guides and mounting plate , while the cabinet and side panels are made from 1.2mm SPCC RAL 9004 steel ; the 5mm tempered glass front door is lockable and can be reversed for right or left opening.
Ventilation:
The top panel integrates 2 105 × 105 mm ventilation holes , designed to promote air circulation and contribute to the correct thermal management of the equipment installed inside the 12U RACK cabinet .
Mobility :
Being a wall-mounted RACK cabinet , the RW1264 model does not include wheels or mobility systems ; it comes fully assembled and is designed for a fixed, compact and tidy installation on the wall.

Technical data sheet

MODEL RW1264
Mounting dimensions 19" x 12U
Dimensions 600 x 636 x 450 [+/-2 mm]
Supported weight 70kg
Lock front door – lock (RAZ25, same code)
side panel – Click (possibility of mounting the key lock – RAZB16)
Feasibility SPCC cold formed steel, 1.2mm, 1.5mm, RAL9004 (black), metallic
Protection grade EN60529 IP 20
Warranty 2nd year
Attention - possibility to move the door from left to right
