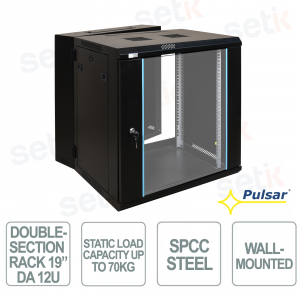

RWD1266 19" 12U Double Section 600x600 Wall Mount Rack Cabinet, 70 kg, IP20 - Pulsar

RWD1266 19" 12U Double Section 600x600 Wall Mount Rack Cabinet, 70 kg, IP20 - Pulsar

 
-58%

RWD1266 - The 19" 12U double-section RACK cabinet is designed for wall mounting of CCTV, LAN, RTV, alarm and automation systems compatible with 19" standard. The SPCC cold-rolled steel structure guarantees robustness and supports a static load of up to 70 kg , while the 5 mm tempered glass front door and the lockable rear door ensure protection and ease of access. With external dimensions of 600 × 635 × 600 mm , it has adjustable RACK guides , cable channels and ventilation provisions. The IP20 protection rating, the reversible front door and RoHS compliance complete a professional solution for indoor installations. Pulsar

Technical data sheet

Reference: RWD1266

Brand: Pulsar

Manufacturer Object ( [id] => 37 [name] => Pulsar [description] =>

The company is a leader in Poland in this sector but is present in many countries in Asia and Europe, so much so that it is growing both in terms of number of sales and the number of new markets in which it is making its way. The quality of the products and the service provided to customers are the strong points that have made the Pulsar brand so successful. The company is attentive to the production process and to the development of new research methods in order to guarantee a service that always meets the needs of customers. Pulsar is constantly expanding the range of products offered, ranging from accessories for alarm systems to those for video surveillance systems. Among the proposals of Pulsar are: accessories for metal containers and for RACK power supplies and cabinets and accessories for cabinets.

[short_description] =>

Accessori impianti allarme Pulsar

Since 1994, Pulsar has been distinguished by the production of access controls and accessories and components for alarm systems and video surveillance systems.

[id_address] => [date_add] => 2019-06-07 15:19:24 [date_upd] => 2020-06-18 15:49:37 [link_rewrite] => pulsar [meta_title] => Alarm components Pulsar [meta_keywords] => Alarm components Pulsar, box pulsar [meta_description] => Pulsar is a manufacturer of components for alarm and active access control systems from 1994. Discover now the wide range of Pulsar accessories available online! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


RW1266 | 12U 19" DOUBLE-SECTION WALL-MOUNTED RACK CABINET

Dahua

The Pulsar RWD1266 19" 12U double-section RACK cabinet is designed for wall-mounted installations of CCTV, LAN, RTV, alarm and automation systems compatible with 19" standard. The SPCC cold-rolled steel structure supports a static load of up to 70 kg and integrates a 5 mm tempered glass front door and a lockable rear door . The external dimensions are 600 × 635 × 600 mm , with adjustable RACK guides , cable channels and upper ventilation provisions. The IP20 protection rating, reversible front door and RoHS compliance complete a professional solution for indoor environments.

Main specifications:

  • Format: 19", 12U
  • Structure: double section
  • Dimensions: 600 × 635 × 600 mm
  • Static load: 70 kg
  • Material: SPCC steel
  • Front door: 5 mm tempered glass
  • Protection: IP20
  • Compliance: RoHS

Further details

✅ Static load :
The Pulsar RWD1266 RACK cabinet supports a maximum static load of 70 kg , offering high capacity for the installation of CCTV, LAN, RTV, alarm systems and standard 19" professional devices .
✅ Structure:
The RACK 19" 12U double section configuration is made of SPCC cold rolled steel , with 1.5mm rails and 1.2mm cabinet, side panels and rear door; the 5mm tempered glass front door and front and rear locks provide protection and accessibility.
✅ Ventilation:
The top panel integrates 2 105 × 105 mm ventilation holes , allowing the installation of ventilation systems dedicated to the thermal management of the equipment housed inside the 12U RACK cabinet .
✅ Mobility :
The RWD1266 is designed for fixed wall mounting and does not include casters; the double-section structure facilitates rear access, while the adjustable RACK rails and reversible left- or right- opening front door increase flexibility during installation and maintenance.

Technical data sheet

MODEL RWD1266
Mounting dimensions 19" x 12U x 269 mm
Dimensions 600 x 635 x 600 [+/-2 mm]
front / rear section – 450/150mm
Supported weight 70kg
Lock front door – lock (RAZ25, same code)
rear door – lock (RAZ-D, same code)
side panel – Click (possibility of mounting the key lock – RAZB16)
Feasibility SPCC cold formed steel, 1.2mm, 1.5mm, RAL9004 (black), metallic
Protection grade EN60529 IP 20
Warranty 2nd year
Attention - possibility to move the door from left to right
