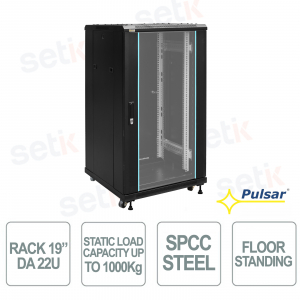

ZRS2266 - The 22U RACK cabinet is a professional, fully assembled floor-standing solution designed to integrate CCTV, access control, intrusion detection, RTV and LAN systems in medium and large installations. Compatible with standard 19" devices, it has external dimensions of 600 × 1166 × 600 mm and a sturdy SPCC cold-rolled steel structure with a 5 mm tempered glass front door. It supports a static load of up to 1000 kg with leveling feet and features adjustable RACK guides, removable side panels and ventilation provision. It also integrates 4 wheels , cable channels and lockable front and rear doors, ensuring order, safety and practicality in professional infrastructures. Suitable for indoor use IP20 , it complies with the RoHS directive. Pulsar

Technical data sheet

Reference: ZRS2266

Brand: Pulsar

Manufacturer Object ( [id] => 37 [name] => Pulsar [description] =>

The company is a leader in Poland in this sector but is present in many countries in Asia and Europe, so much so that it is growing both in terms of number of sales and the number of new markets in which it is making its way. The quality of the products and the service provided to customers are the strong points that have made the Pulsar brand so successful. The company is attentive to the production process and to the development of new research methods in order to guarantee a service that always meets the needs of customers. Pulsar is constantly expanding the range of products offered, ranging from accessories for alarm systems to those for video surveillance systems. Among the proposals of Pulsar are: accessories for metal containers and for RACK power supplies and cabinets and accessories for cabinets.

[short_description] =>

Accessori impianti allarme Pulsar

Since 1994, Pulsar has been distinguished by the production of access controls and accessories and components for alarm systems and video surveillance systems.

[id_address] => [date_add] => 2019-06-07 15:19:24 [date_upd] => 2020-06-18 15:49:37 [link_rewrite] => pulsar [meta_title] => Alarm components Pulsar [meta_keywords] => Alarm components Pulsar, box pulsar [meta_description] => Pulsar is a manufacturer of components for alarm and active access control systems from 1994. Discover now the wide range of Pulsar accessories available online! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER

ZRS2266 | 22U FLOOR-STANDING 19" RACK CABINET

Dahua

The Pulsar ZRS2266 22U RACK cabinet is a fully assembled floor-standing solution, ideal for integrating CCTV, access control, intrusion, RTV and LAN systems in medium and large professional installations. Compatible with standard 19" devices, it features a robust SPCC cold-rolled steel structure with a 5 mm tempered glass front door. The external dimensions are 600 × 1166 × 600 mm , with adjustable RACK guides and a static load capacity of up to 1000 kg with leveling feet. It features ventilation holes , provision for up to 2 RAWP units, removable side panels, cable channels, 4 wheels and lockable front and rear doors. Designed for IP20 indoor use and RoHS compliant, it offers practicality, safety and organisation for network and security infrastructures.

Main specifications:

  • Format: 19", 22U
  • Dimensions: 600 × 1166 × 600 mm
  • Static load: up to 1000 kg
  • Structure: SPCC steel + tempered glass
  • Ventilation: prepared for 2 RAWP units
  • Mobility: 4 wheels + 4 feet
  • Protection: IP20

Further details

✅ Static load :
The Pulsar ZRS2266 RACK cabinet is designed to support a maximum static load of 1000 kg when installed on the leveling feet, providing a sturdy base for CCTV, networking, access control and professional security systems equipment.
✅ Structure:
Constructed from SPCC cold rolled steel , it features 2 mm RACK guides, 1.2 mm RAL 9004 welded frame, removable side panels and 5 mm tempered glass front door , ensuring solidity and protection of the installed equipment.
✅ Ventilation:
Airflow management is aided by ventilation holes on the front door and on the top and bottom panels; the top panel also allows for the mounting of up to 2 RAWP fan units , improving heat dissipation inside the RACK cabinet.
✅ Mobility :
Supplied with 4 brakeless casters for easy movement and 4 levelling feet to ensure stability during use, the cabinet combines ease of movement with secure support of equipment once positioned.

Technical data sheet

MODEL ZRS2266
Mounting dimensions 19" x 22U x 360 mm
Dimensions 600 x 1166 x 600 [+/-2 mm]
distance from the substrate: 72 mm
Type Cabinets floor standing, assembled
Supported weight 1000kg - with leveling legs
Lock front door – lock (RAZ25, same code)
rear door – lock (RAZ-D, same code)
side panel – Click (possibility of mounting the key lock – RAZB16)
Feasibility SPCC cold formed steel, 1.2mm, 1.5mm, RAL9004 (black), metallic
Protection grade EN60529 IP 20
Warranty 1 year from date of manufacture
Attention - including 4 brakeless casters, 4 leveling legs
- possibility to move the door from left to right
