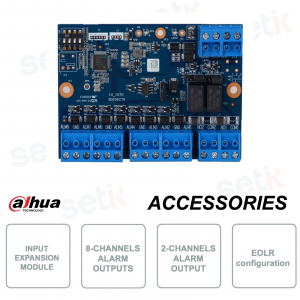

ARM808-RS | EXPANSION MODULE - CARD WITH 8 INPUTS AND 2 ALARM OUTPUTS - RS-485 - EOLR CONFIGURATION

- Expansion module - Dahua - ARM808-RS
 - Board with 8 input channels and 2 alarm output channels
 - EOLR configuration (2K7, 4K7 and 6K8)
 - DIP Switch for address setting
 - Status switch between NO (Normally Opened) and NC (Normally Closed) via jumper
 - Remote update, via dedicated software client
 - Zone Terminations: NC, NO, 1EOL, 2EOL, 3EOL, INERTIAL(ARC3008), IMPULSE(ARC3008)
 - RS-485 interface with maximum range up to 300m over RVV2×1.5 type cable
 - Power supply: 12VDC
 - Dimensions: 90.0mm × 62.0mm × 12.6mm
 - Optimal operating temperature: –10 °C to +55 °C
 - Item weight: ≤ 1kg
 - Relative Humidity: 10%–90% (RH)

Data sheet
| ARM808-RS | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Port  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Alarm Output  |
 2  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Alarm I output  |
 8  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 RS-485  |
 1, connected to a maximum of 300 m ( 984.25 ft )  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Function  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Device Address  |
 0–15( ARC9 series, ARC2 series )  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Zone Terminations  |
 NC, NO, 1EOL, 2EOL, 3EOL, INERTIAL(ARC3008), and IMPULSE(ARC3008)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 EOL extension  |
 2K7, 4K7, and 6K8  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Alarm Output Mode  |
 Switch between NO and NC with jumpers  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Output Capacity  |
 30VDC/500mA  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Update  |
 Remote update by client software  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 General  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Power Supply  |
 12VDC  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 power consumption  |
 1.2W  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Operating Temperature  |
 –10°C to +55°C (+14°F to +131°F)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Operating Humidity  |
 10%–90% ( RH )  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Product Dimensions  |
 90.0 mm × 62.0 mm × 12.6 mm ( 3.54" × 2.44" × 0.5" ) ( L × W × H )  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Net Weight  |
 ≤1kg (2.20lbs)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
