PARTNERSHIP HELVETIA-UR FOG:
Anti-theft Fog System UR FOG FAST 6000 PUMP PRO PLUS WIDE, ideal for protecting large areas (hypermarkets, warehouses, etc.) or objectives in open spaces. It fires up to 45,00 m3 of dense fog in approximately 200 seconds with a single shot. Easy wall installation (bracket included) - equipped with a compartment for inserting additional cards and accessories. FPU14000PP
https://www.setik.biz/en/fog-cannons/9846-ur-fog-fpu14000pp-fog-generator-ur-fog-pump-technology-fast-14000-pump-pro-plus-wide-anti-theft.html
€5,673.00
€7,564.00 -25%
taxes included
Do you have a commercial business? Discover the advantages you can get from this collaboration! |

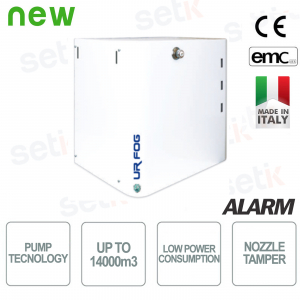

ANTI-THEFT FOG GENERATOR FAST 14000 PUMP PRO PLUS WIDE UR FOG
URFog FAST 14000 PUMP PRO PLUS Ideal misting system for protecting large areas (hypermarkets, warehouses, etc.) or targets in open spaces. |
Product details
- Fog generator - UR FOG
- Emission of up to 14000m3 of fog
- Smoke liquid certified as not harmful to health
- Single 5000ml bag (supplied)
- Battery powered 7.2 Ah 12V (not included)
- Complies with standards: CE and EMC
- Complies with European standards
- Wall mountable (vertical or horizontal)
- Lower compartment for installing additional cards and accessories
- White color
- Dimensions: 44.0X30.5Xh43.5
- Weight: 59kg (without packaging)
Data sheet
| Model | FPU14000PP |
| WEIGHT OF THE FOG MACHINE | About 59 kg |
| WEIGHT WITH PACKAGING | About 63 kg |
| UNITS ON ONE PALLET 100X120 | 4 |
| DIMENSION OF THE MACHINE | 44.0X30.5Xh43.5 |
| DIMENSION OF THE PACKAGING | 61.0X49.0XH62.5 |
| Colors | White |
| WORKING TIME WITHOUT MAINS POWER | About 4 hours |
| HEAT UP TIME FROM COLD | about 5 hours |
| VERTICAL OR CORNER MOUNTING | yes (bracket included) |
| HORIZONTAL OR CORNER MOUNTING | no |
| SERIAL/USB PORT FOR MONITORING | yes |
| NOZZLE TAMPER | yes |
| RS232 serial interface with standard UR FOG protocol | yes |
| Active Cloud Network | Optional |
| Fog Generator | |
| LAYER HEATING SYSTEM | yes |
| MAX FOG SINGLE SHOT 1.5M VISIBILITY | up to 14000 m3 |
| MAX FOG SINGLE SHOT ZERO VISIBILITY | up to 4500 m3 |
| MAX SECONDS OF FOG | 200 sec |
| MAX FOG EMISSION WITH FULL FOG TANK | 9000 m3 |
| NUMBER OF CYLINDERS | 1 |
| FOG TANK CAPACITY | 1 x 5000ml |
| SHOOTING SPECIFICATIONS | programmable in seconds |
| CYLINDER INCLUDED | 1 |
| Electrical Specifications | |
| POWER SUPPLY | 230 OR 120V |
| AVERAGE POWER CONSUMPTION | 80W |
| BATTERY 7.2AH 12 V (not included) | YES |
| PIR INPUT | YES |
| OUTPUT CONFIRM SHOT | YES |
| POWER SUPPLY | YES |
Further details
 | For operation: To operate the fog generator, you need: - 230V power supply (for the exchanger heating system) - 7.2Ah battery (for cylinder engines) - power supply not included - 12V power supply for electronic board power It is recommended to supply 12V via the alarm control unit. For the connections between the alarm control unit - switches, etc., refer to the installation and use manual. |
 | The fastest fog generators in the world Up to 200 m3 in 15 seconds. It is impossible to steal what is impossible to see this phrase makes a lot of sense when we mean UR Fog since in a few seconds you can't see anything. |
 | The thickest fog Thanks to the innovative formulation of the fluid with a high percentage of glycol it ensures a dense fog that is totally impenetrable to visibility. |
 | Removable cylinders Removable and without the need for charging. |
 | Low energy consumption The perfect insulation system offers very low energy consumption which saves costs compared to other misting systems. |
 | Nozzle tamper Another unique, patented and very useful advantage that automatically detects if the nozzle is tampered with and sends a warning signal |
 | Smart bus standard protocol A single serial bus to connect an additional card to the electronic board that allows you to easily interface the machine with alarms and control the misting system even remotely. A standard protocol for all machines. |
 | Innovative technology and performance UR FOG misting systems are innovative in their technology and performance, in order to guarantee maximum protection against theft. |
 | Safe and certified UR FOG misting systems are certified according to European legislation. The fog liquid is tested and is absolutely safe. They are not dangerous for objects, animals or people and do not leave residues. |
Accessories
UR-FOG ACCESSORIES:
 | F01STH - Wall bracket for FAST 01 |
| F23STHPRO - Wall bracket for FAST PRO 02/03 |
 | F23PRUG7 - Nozzle Extension 7CM |
 | F1MO3UG3 - 3 Hole Nozzle |
 | F23KITD - Demo Kit for FAST 01/02 and FAST/FAST PRO |
 | URTR - Remote control with receiver |
 | URT - Additional remote control |
 | F123KEY - Arming key |
 | F23KITA - Anti-theft cable |
 | F23PA - Anti-robbery button |
 | URRS232 - 5/12V rs232 transceiver |
 | URRE - Relay board |
 | URCL - Cloud Lan tab |
 | F1SO4PS - Power supply |
 | F1M04BATT - 2Ah battery |
Downloads
No brochures available
WHO IS UR FOG?
UR Fog is one of the most solid Italian companies in the fog systems market.
The UR FOG team is made up of professionals and engineers with over 20 years of experience both in the development of new products and in managing distribution throughout the world. From 2012 to today they have obtained several patents, created new technologies such as the single and double cylinder one born right at the beginning of the business and introduced important innovations such as that of the adjustable nozzle.
One of the strong points of this company and thanks to which they are very often chosen, is the speed of fog ejection, a critical aspect for the products of many other competing brands.
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification
