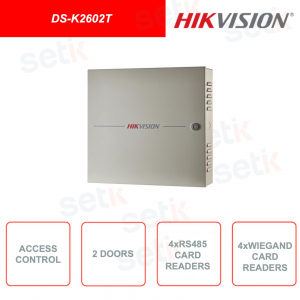

DS-K2602T - HIKVISION - Access control module - RS485 Interface - Wiegand Interface - Control on 2 doors
DS-K2602T - HIKVISION - Reader for access control, 4x Card Reader RS485 interface and 4x Card Reader Wiegand interface - 32-bit processor - TCP / IP communication - Supports up to 100,000 cards (of which 3,000 with visitor access) - IP address conflict detection - Storage memory depletion alarm - Encryption for M1 Card - Access control for two doors - Tamper alarm - Door Relay - Alarm Relay - HIKVISION - DS-K2602T
CLEARANCE SALE ×
 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

DS-K2602T | ACCESS CONTROL TERMINAL - TWO DOOR CONTROL - WIEGAND - RS485 - M1 CARD


MAIN FEATURES:
- High-performance, 32-bit processor
 - TCP / IP, EHome 5.0, ISAPI communication support
 - Supports up to 100,000 scehede (of which 3,000 for visitors)
 - Supports M1 card encryption
 - Access control for two doors
 - Conflict detection IP addresses
 - Tamper alarm
 - Dimensions: 373mm × 345mm × 98mm (14.7 "× 13.6" × 3.6 ")
 - Operating temperature: 10% to 90%
 - 4x Wiegand Card Readers
 - 4x RS485 Card Readers
 - Capacity up to 300,000 events
 - Permanent data recording after shutdown
 - Storage: 32M

Data sheet
|
 Model  |
 DS-K2602T  |
||
|
 Working voltage  |
 DC 12V / 1A  |
||
|
 Power supply (with Load)  |
 ≤ 100 W  |
||
|
 Power supply (Without Load)  |
 ≤4W  |
||
|
 Processor  |
 32-bit  |
||
|
 Storage  |
 32 M  |
||
|
 Communication  |
 TCP / IP, RS-485, Wiegand (W26 / W34)  |
||
|
 Capacity  |
 100,000 cards 300,000 events  |
||
|
 LED Indicator  |
 Power supply status, communication status, and work status  |
||
|
 Built-in Clock  |
 Support  |
||
|
 Accessible Card Reader  |
 4 card readers (RS-485 interface), and 4 card readers (Wiegand interface)  |
||
|
 Input interface  |
 Alarm input × 4, door contact × 2, exit button × 2, case input × 4, tamper alarm × 1  |
||
| Output Interface |
 Door relay × 2, alarm relay × 4  |
||
|
 Working temperature  |
 -20 ° C to +65 ° C (-4 ° F to +149 ° F)  |
||
|
 Working humidity  |
 10% to 90% (Non-condensing)  |
||
|
 Dimensions (L × W × H)  |
 373 mm × 345 mm × 98 mm (14.7 "× 13.6" × 3.6 ")  |
||
|
 Approval  |
 CE, FCC, CB  |
||
