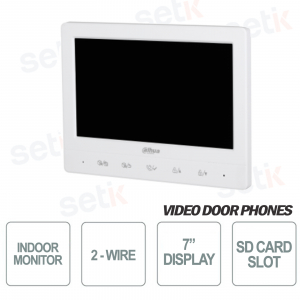

DAHUA 2-WIRE INTERNAL STATION 7" COLOR MONITOR
DESCRIPTION:
Dahua's VTH1023J station is one of the best indoor two-wire stations on the market.
Equipped with a 7" display, 1 audio input and integrated speaker and SD card slot.
Quality product. Brand Dahua Security
Product Details:
![]()
|
Technical data sheet
| MODEL | VTH1023J |
| System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded Linux operating system |
| Button Type | Touch button |
| Basic | |
| Screen Type | Non-touchscreen |
| Display Screen | 7.0" TFT |
| Screen Resolution | 1024 (H) × 600 (V) |
| Audio Input | 1 channel |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way audio (half-duplex) |
| Function | |
| Communication Mode | Analog |
| Leave Videos | Yes (SD card inserted in VTH is needed) |
| DND Mode | Do not disturb mode can be set |
| Number of Extensions | 2 |
| Storage | Supports Micro SD card storage, up to 64 GB |
| Performance | |
| Casing Material | PC + ABS |
| General | |
| Appearance Color | White |
| Power Supply | The power is provided by the distributor. |
| Installation | Surface Mount |
| Certifications | THERE IS |
| Accessories | Includes: Power cord and bracket |
| Product Dimensions | 133.9 mm × 182.7 mm × 20.7 mm (5.27" × 7.19" × 0.82") |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 10%–95% (RH) |
| Operating Altitude | 0 m–3000 m (0 ft–9842.52 ft) |
| Power Consumption | ≤1W (standby), ≤6.3W (working) |
| Gross Weight | 513.5g (1.13lb) |
| Storage Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
| Storage Humidity | 30%–75% |
| Operating Environment | Indoor |
Further details
![]() | 7" TFT 1024x600 color display
|
![]() | Intercom Station. This means it can communicate freely with other internal monitors. |
![]() | 1x MicroSD Slot - card not included |
![]() | LIVE connection with Dahua IP cameras |
| This product is covered by a 24 month warranty. |
