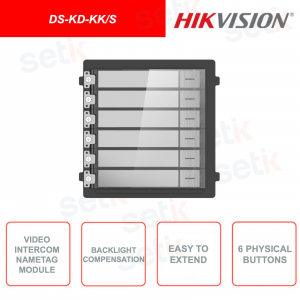

DS-KD-KK / S HIKVISION Expansion Module - Outdoor pushbutton panel, Supports the call to the internal station, Compensatory backlighting, 6 physical pushbuttons, 2W max, Operating temperature -40 ° C / + 55 ° C, IP65 protection degree from dust and water splashes, Flush or wall mounting - In stainless steel.
DS-KD-KK / S | EXTERNAL EXPANSION MODULE - PUSH BUTTON - 6 PHYSICAL BUTTONS - IP65 PROTECTION - STAINLESS STEEL
Pushbutton expansion module for outdoor use, Supports the call to the internal station with a touch, Compensatory backlighting, 6 physical buttons, 2W max, Operating temperature -40 ° C / + 55 ° C, Degree of protection IP65 from dust and splashes 'water, 1xDebug, 8xDIP Switch, Processor: Embedded MCU Processor, Operating Humidity: 10% -95% - Flush / Wall Mount, Stainless Steel, Dimensions: 98.2 mm × 100.2 mm × 33.7 mm - HIKVISION - DS-KD -KK / S
|
6 PHYSICAL KEYS: The module integrates 6 physical buttons |
|
INSTALLATION: The module can be installed on the wall or recessed. |
|
PROTECTION: IP65, guarantees the protection of the device from dust and water jets |
Data sheet
| DS-KD-KK / S | |
| System parameters | |
| Processor | Embedded MCU Processor |
| Interfaces | |
| Module connecting |
2 (1 input, 1 output) |
| Debug | 1 |
| General | |
| Physical button |
6 |
| DIP switch |
8 |
| Power Supply |
Powered by DS-KD8003-IME1 |
| Power consumption |
≤2W |
| Working temperature |
-40 ° C to + 55 ° C (-40 ° F to 131 ° F) |
| Working humidity |
10% to 95% |
| IP protection level |
IP65 |
| Installation |
Flush mounting, surface mounting |
| Dimension |
98.2 mm × 100.2 mm × 33.7 mm (3.87 "× 3.95" × 1.33 ") |
| Material |
Stainless Steel |
Further details
Download
Download the English brochure
