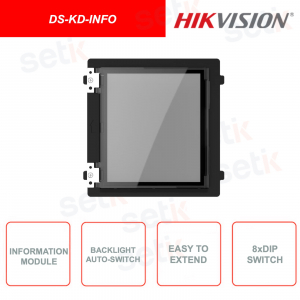

DS-KD-INFO - Frame-filling blind module - Automatic adaptive backlighting - Easy to extend

DS-KD-INFO - Frame-filling blind module - Automatic adaptive backlighting - Easy to extend

 
-35%

Hikvision DS-KD-INFO Module - Blind Module. for filling the frame, with information display, easy to extend, with automatic adaptive backlighting - 1x Debugging Port - 8x DIP Switches - Power supply: 12V DC - Operating temperature from -20°C to + 60°C - Humidity: 10% - 90% - 1x input and 1x output for connecting modules.

Reference: DS-KD-INFO

Brand: Hikvision

EAN: 6941264032106

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER



Made by Hikvision

DS-KD-INFO | HIKVISION BLIND FRAME-FILLING MODULE

Blind Frame Filler Module, Dimensions: 98.42 mm × 94.4 mm × 33.8 mm - Wall or flush mountable - Operating temperature: -20°C to 60°C - Operating humidity: 10% to 95% - 1 Port for debugging - 8 DIP Switches - 12V DC power supply, input and output - Automatic adaptive lighting, according to environmental conditions - Module connection: 2 (1 input, 1 output) - HIKVISION - DS-KD-INFO

Technical data sheet

DS-KD-INFO
System Parameters
Operation Method Backlight controlled via client software
Interfaces
Module connecting 2 (1 input, 1 output)
Debugging port 1
General
DIP switches 8
Power supply 12 VDC (powered by the other module)
Power output 12 VDC (powered for the other module)
Power consumption ≤ 1.5 W
Working temperature -20 °C to 60 °C(-4 °F to 140 °F)
Working humidity 10% to 95%
Installation Flush mounting, surface mounting
Dimension 98.42mm × 94.4mm × 33.8mm
Approval
CE-EMC

a. EN 55032:2015
b. EN 61000-3-2:2014
c. EN 61000-3-3:2013
d. EN 50130-4:2011 +A1:2014

CE-LVD EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
CB IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013

C-
TICK(EMC)

AS/NZS CISPR 32:2015
ROHS 2011/65/EU
REACH Regulation (EC) No 1907/2006
WEEE 2012/19/EU

Further details

Download

Download the English Brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
