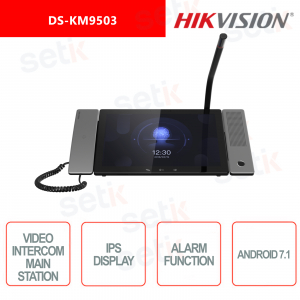

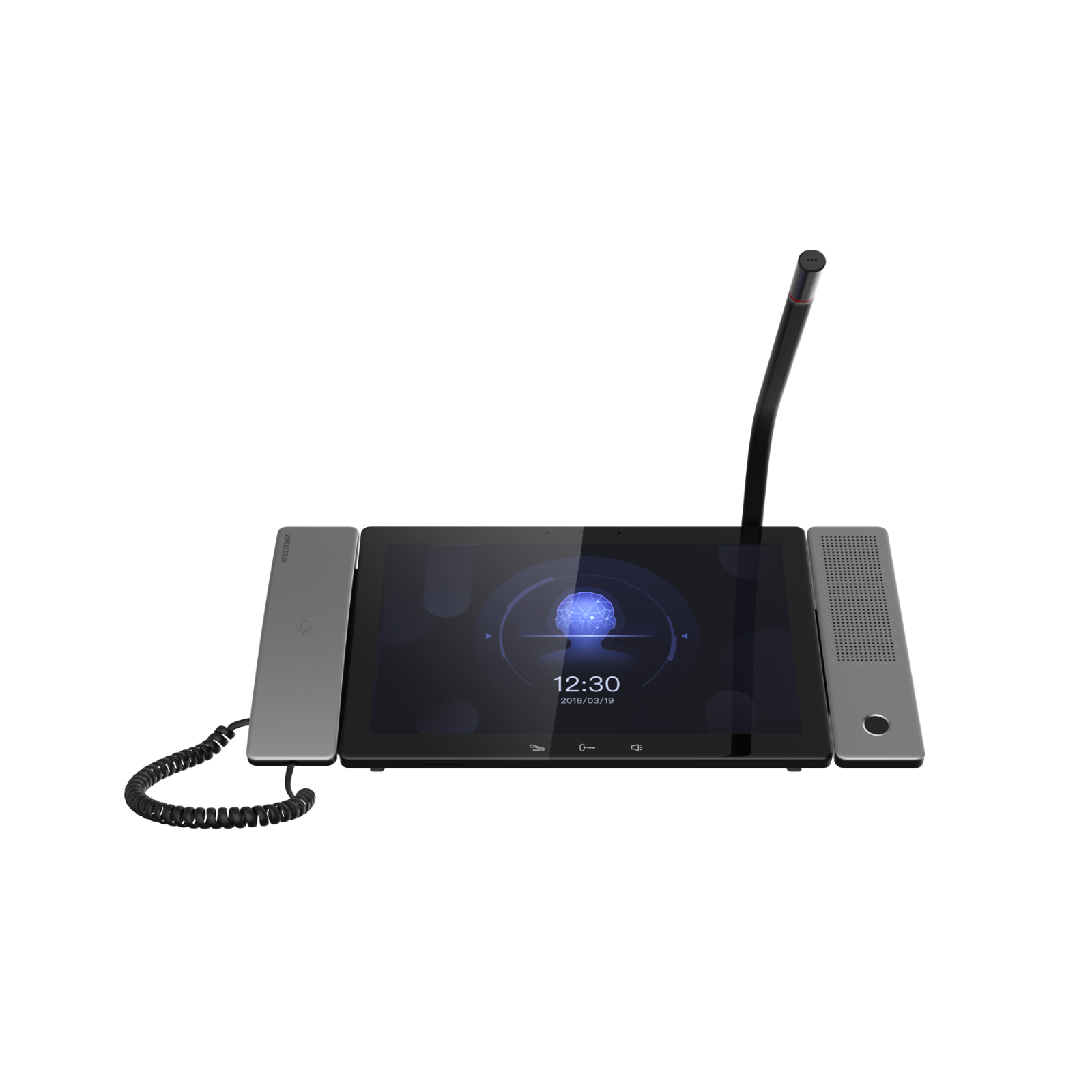

Hikvision - Video Intercom Android 7.1 10.1 inch LCD Monitor DS-KM9503 . Connection up to 126 network cameras, SIP, swiveling display, PoE, 2MP video resolution, speaker , built- in microphone, noise suppression and echo cancellation, alarm, netwirk interface, TF card, H.264.
CLEARANCE SALE ×
 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

Description Product Details Data Sheet Further Details Download
DS-KM9503 | INTERCOM VIDEO WITH IPS MONITOR - 2MP VIDEO RESOLUTION - SIP - POE - HIKVISION
 Hikvision - Android Video Intercom 10.1 inch LCD Monitor DS-KM9503 .
 Connection up to 126 network cameras, SIP, swiveling display, PoE
 2MP video resolution, speaker , microphone , noise suppression and echo cancellation, alarm, netwirk interface, TF card, H.264.

Data sheet
| DS-KM9503 | |
| System parameters | |
| Operetang system | Android 7.1 |
| ROM | 8GB |
| RAM | 2GB |
| CPU | Embedded processor |
| Display parameters | |
| Screen size | 10.1-inch |
| Operation method | Capacitive touch screen |
| Type | IPS |
| Resolution | 1280x800 |
| Video parameters | |
| Resolution | 2MP |
| FOV | Horizontal: 64.1 °, Vertical: 48.1 °, Diagonal: 80.2 ° |
| WDR | / |
|  Supplement light  | / |
| V ideo compression standard | H.264 |
| Audio parameters | |
| Standard audio compression | G.711U? G.711A |
| Audio input | Built-in omnidirectional microphone, external speaker, external goose neck microphone, external earphone (3.5 mm) |
| Audio output | Built-in loudspeaker, external speaker, external voice box or earphone (3.5 mm) |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable via software |
| Capacity | |
| Notice capacity | 128 |
| Linked doorphone capacity | 10000 |
| Network parameters | |
| Communication protocol | TCP / IP, SIP, RTSP |
| Wired network | 2 10/100/1000 M self-adaptive Ethernet |
| Standard Wi-Fi | / |
| 3G / 4G standard | / |
| Z igbee | / |
| Device interfaces | |
| Alarm input | 2 |
| Network interface | 2 |
| TAMPER | 0 |
| RS-485 | 1 |
| USB | 3 |
| TF card | Max to 128 G |
| Lock control | 2 Relay output |
| General | |
| Button | 3 touch buttons |
| Installation | Table mounting & wall mounting |
| Indicator | 3 |
| Weight |  Without package: 1.285 kg With package: 2.305 kg  |
| Protective level | / |
| Working humidity | 10% to 90% |
| Language | English, French, Portuguese (Europe), Spanish (Europe), Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Lithuanian, Estonian, Latvian, Norwegian, Greek, Danish |

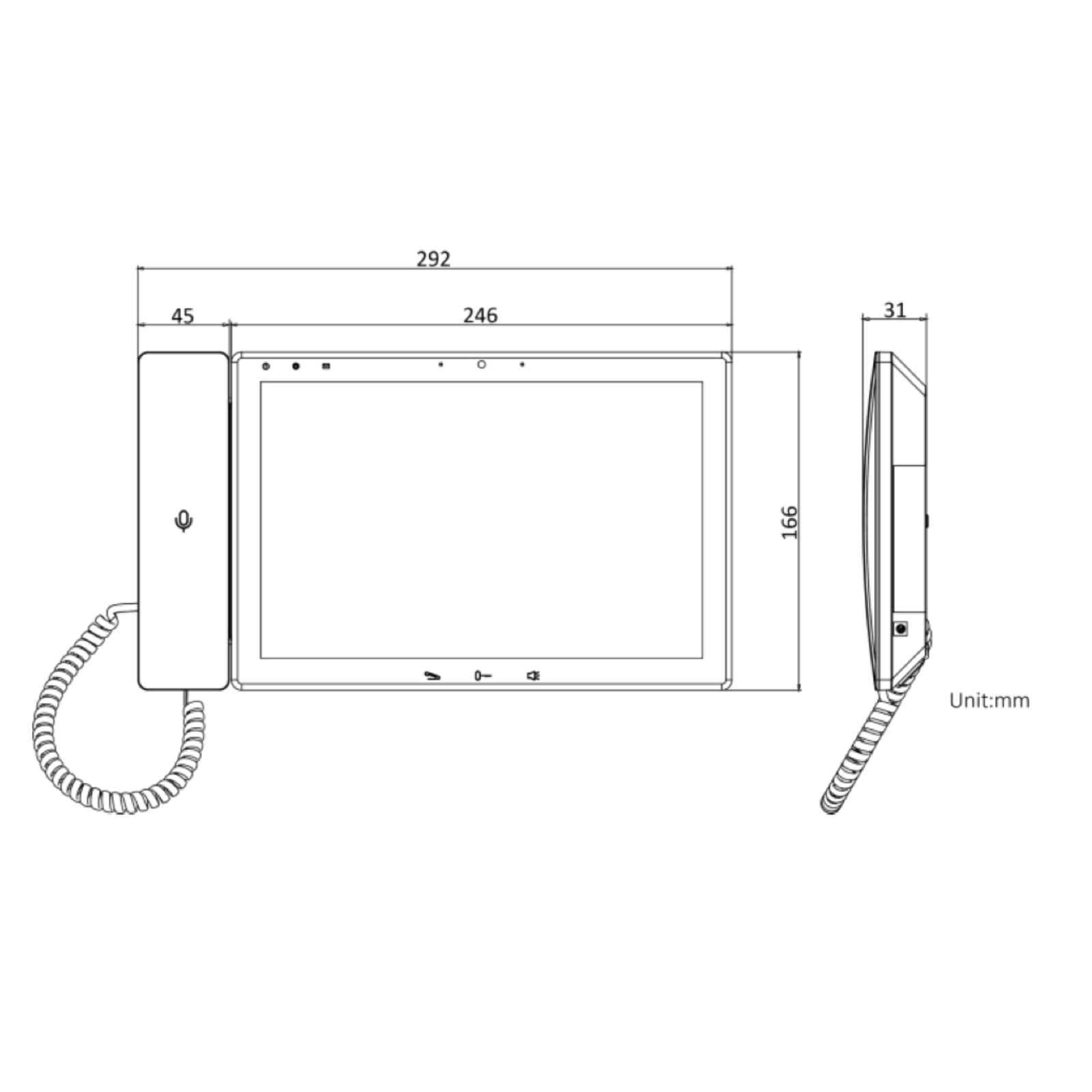

| Dimensions | 292 mm × 166 mm × 31 mm (11.5 "× 6.5" × 1.2 ") |
| Battery | / |
| Power supply |  PoE standard (LAN1) 12 VDC  |
| Application environment | Indoor |
|  Power consumption Dimension  | ≤ 12 W |
