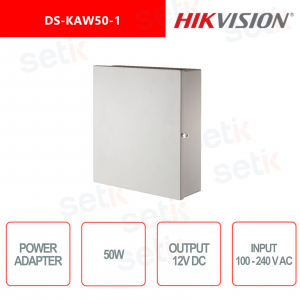

Hikvision Power Adapter with Case DS-KAW50-1 50W power supply - 100-200V AC input - 12V DC output - Tolerates overvoltage up to 300V AC - LED indicator - Natural heat dissipation - Dimensions: 246 mm × 266.4 mm × 79.6 mm
DS-KAW50-1 | 50W POWER SUPPLY - 100 TO 240 V AV INPUT - 12V DC OUTPUT - WITH CASE - HIKVISION
Hikvision Power Adapter with case DS-KAW50-1 50W power supply
100-200V AC input - 12V DC output - Tolerates overvoltage up to 300V AC - LED indicator
Natural heat dissipation - Dimensions: 246mm × 266.4mm × 79.6mm
Working temperature 70 degrees
Data sheet
| DS-KAW50-1 | |
| Input voltage | 100 VAC to 240 VAC |
| Output voltage | 12V DC |
| Output current | 4.17 A |
| Output power | 50 W |
| Noise and ripple | <150 mVpp @ 25 ° C |
| Voltage adjustment range | 11 VDC to 14 VDC |
| Cooling system | Convection |
| Working temperature | Operating: -10 ° C to +70 ° C (14 ° F to 158 ° F) Storage: -25 ° C to +85 ° C (-13 ° F to 185 ° F) |
| Working humidity | <95% (No Condensation) |
| Dimension (L x W x D) | 246 mm × 266.4 mm × 79.6 mm (9.69 "× 10.49" × 3.13 ") |
| Weight | 1.68 kg (3.70 lb) |
Further details
Download
Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification
fill out this form
