Outdoor Station HIKVISION - DS-KD9633-E6 - IPS 10.1" 1280x800 color touchscreen display - Authentication: Face recognition - 13.56Mhz card reader - Omnidirectional microphone and speaker - WDR - 2MP camera - H.264 - 10,000 faces - 100,000 files access - Up to 20,000 users - 4in/2out alarm - 2xUSB - 2xRJ45 - 2xRS485 - IP65 and IK07 protection (Ideal for outdoor) - For recessed or direct wall installation.
CLEARANCE SALE ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

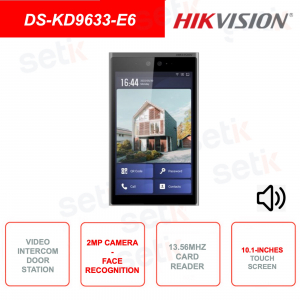

DS-KD9633-E6 | HIKVISION OUTDOOR STATION - ALARM AUDIO - 2MP CAMERA - FACE RECOGNITION - 13.56MHZ CARD READER - IP65 AND IK07 PROTECTION

|
CAMERA INTEGRATED IN THE DEVICE: with 2 megapixel resolution, IR illuminator, equipped with infrared illuminator, with face recognition function |
|
DISPLAY: 10.1-inch IPS touchscreen display with 1280x800 resolution, color. |
|
AUTHENTICATION: Allows authentication via face recognition or 13.56MHZ card reading Up to 100,000 cards and 10,000 faces can be registered. It supports up to 20,000 users. |
|
CONNECTIONS: Connection via 10/100/1000M Mbps self-adaptive Ethernet LAN port 2xUSB 2xRS-485 |
|
AUDIO: Omnidirectional microphone and speaker integrated into the device! |
|
IN/OUT ALARM: 4 Inputs and 2 Alarm Outputs |
|
PROTECTION: IP65, ideal solution to guarantee device protection from dust and water jets + 1 tampering alarm (with anti-tampering function) |
|
DIET: 12VDC power supply |
Data sheet
|
System parameters |
|
|
operating system |
Android 7.1 |
|
ROM |
4GB |
|
RAM |
2GB |
|
CPUs |
Embedded Processor |
|
Display parameters |
|
|
Screen size |
10.1-inch |
|
Operation method |
Touch screen |
|
Type |
Colorful IPS |
|
Resolution |
1280×800 |
|
Video parameters |
|
|
Supplement light |
Low illumination, IR supplement lights |
|
Standard videos |
H.264 |
