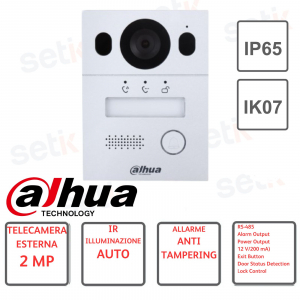

DAHUA 2 WIRE OUTDOOR STATION Hybrid Villa Door Station

DAHUA 2 WIRE OUTDOOR STATION Hybrid Villa Door Station
-57%

Dahua VTO2003F 2-wire Villa station with 2 Megapixel 1080P FULL-HD 2MP camera and Auto IR, video intercom and access control functions with support for 1 lock + 1 secondary. IK07 and IP65 protection. Surface and recessed installation. 130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12")



Reference: VTO2003F

Brand: Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

DAHUA 2-WIRE HYBRID STATION VILLA | 2MEGAPIXEL FULLHD 1080P CAMERA AND SENSOR

DESCRIPTION:
The outdoor station VTO2003F by Dahua, is one of the best 2-wire stations on the market
Ideal for installations in Villas thanks to its refined design.
Equipped with a camera with 2MP CMOS sensor, it allows a viewing angle of approximately 110°.

Product Details:

Postazione esterna in acciaio Dahua
  • External 2-wire station - Dahua
  • Integrated camera with 2MP CMOS image sensor, 110° viewing angle
  • Video door entry functions
  • Mechanical buttons
  • DWDR- 3D NR - Day/Night (ICR)
  • Audio: 1 input / Integrated speaker / Two-way communication -
  • Access control functions that support 1 local lock +1 secondary lock
  • Doors: 1x RS-485, 1x alarm output, 1 ignition output 12 VDC 200mA, 1x exit button, 1x door status detection, 1x lock control
  • SD card (SD card inserted into VTH is required)
  • IP65 and IK07 protection
  • Surface or recessed installation
  • Front panel in anodized aluminium
  • 130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12")
  • 24 month warranty

System

Main Processor

Embedded Processor

Button Type

Mechanical

Basic

Room

1/2.8" 2 MP CMOS HDR Camera

Field of View

H: 110°; V: 60°

WDR

DWDR

Noise Reduction

3D NO

Video Resolution

D: 960(H)×576(V)
N: 960(H)×480(V)

Video Frame Rate

P: 25fps
N: 30fps

Light Compensation

Auto IR

Day/Night

Auto(ICR)/Color/B/W

Audio Input

1

Audio Output

Built-in speaker

Audio Mode

Two-way audio (half-duplex)

Function

Unlock Mode

Remote unlock

Leave Videos

Yes (SD card inserted in VTH is needed)

Performance

Casing Material

Aluminum Alloy

Port

RS-485

1

Alarm Output

1

Power Output

1(12V/200mA)

Exit Button

1

Door Status Detection

1

Lock Control

1

Alarm

Tamper Alarm

Yes

General

Appearance Color

Silver

Power Supply

2- wire controller

Power Adapter

Optional

Installation

Flush Mount;Surface Mount

Certifications

THERE IS; FCC

Accessories

Sold separately: surface box, rain cover, flush box, 2-wire controller

Product Dimensions

130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12")

Protection

IP65
IK07

Operating Temperature

–40 °C to +60°C (–40 °F to +140 °F)

Operating Humidity

10%–90% (RH), non-condensing

Operating Altitude

0 m–3000 m (0 ft – 9842.52 ft)

Power Consumption

≤ 1.5 W (standby), ≤ 10 W (working)

Gross Weight

0.326 kg (0.72 lb)

Storage Temperatures

–40 °C to +70 °C (–40 °F to +158 °F)

Storage Humidity

95% (RH), non-condensing

Videocitofono con telecamera integrata

Camera integrated into the device.
2Mp CMOS image sensor.
Viewing angle approximately 110°

Image sensor: 1/2.8" 2MP CMOS Auto IR

1x Mechanical Button



1 Uscita Relè per comando apri porta mono famigliare

DOORS ON BOARD:
1x Alarm output
1x 1 channel 12 VDC 200mA power output
1x exit button
1x door status detection
1x Lock Control

Protezione Antivandalo Panel completely made of steel, resistant to vandalism. IK07 / IP65

12VDC_Supply

2 wire power supply
Materiale con cui è stato creato il dispositivo Panel made entirely of anodized aluminium.
Italian Guarantee icon This product is covered by a 24 month warranty.
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
