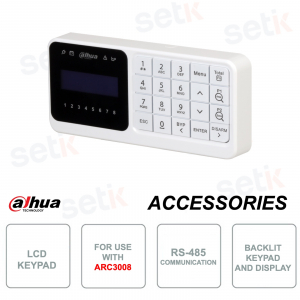

Dahua ARK30C Wired Keyboard – LCD Control with Badge and Quick Alarms

Dahua ARK30C Wired Keyboard – LCD Control with Badge and Quick Alarms

-35%

ARK30C - is a wired LCD keypad, designed to control ARC3008 control panels via RS‑485, perfect for residential or commercial environments. It has a 32-character display, backlight and 4 status LEDs, and supports arming/disarming with password or IC/Desfire card. Thanks to the hotkeys, you can activate Panic, Burglar, Fire or Medical Emergency alarms with a simple touch. It integrates an acoustic buzzer and tamper function, real-time anomaly notification and offers interaction in Italian and English, all in an elegant wall-mounted design. Dahua

Technical Data Sheet

Reference: ARK30C

Brand: Dahua

EAN: 6939554928284

Disponibilità: 20

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

ARK30C| DAHUA WIRED KEYBOARD


Dahua

The Dahua ARK30C is a wired keypad designed for advanced control of the ARC3008 control panel via RS‑485, perfect for residential and commercial contexts. Equipped with a 32-character blue LCD display and backlight, it offers intuitive management of the 8 areas and shows the status of the zones in real time. It allows arming/disarming with password or IC/Desfire badge, includes hotkeys for Panic, Burglar, Fire and Medical alarms, and has an acoustic buzzer, tamper function and double menu in Italian and English. The wall-mounted design, status LEDs and clear interface ensure ease of use and reliability in every situation.

Further details

32-character backlit LCD display with illuminated keys
4 status LEDs (power, battery, fault, bypass) + LEDs for 8 areas
Arm/disarm with password or IC card/Desfire, dual language support
Shortcuts for Panic, Theft, Fire and Medical Assistance
Built-in buzzer and tamper function for tamper protection
Connection via RS‑485 to the ARC3008 control unit, installer/user menu

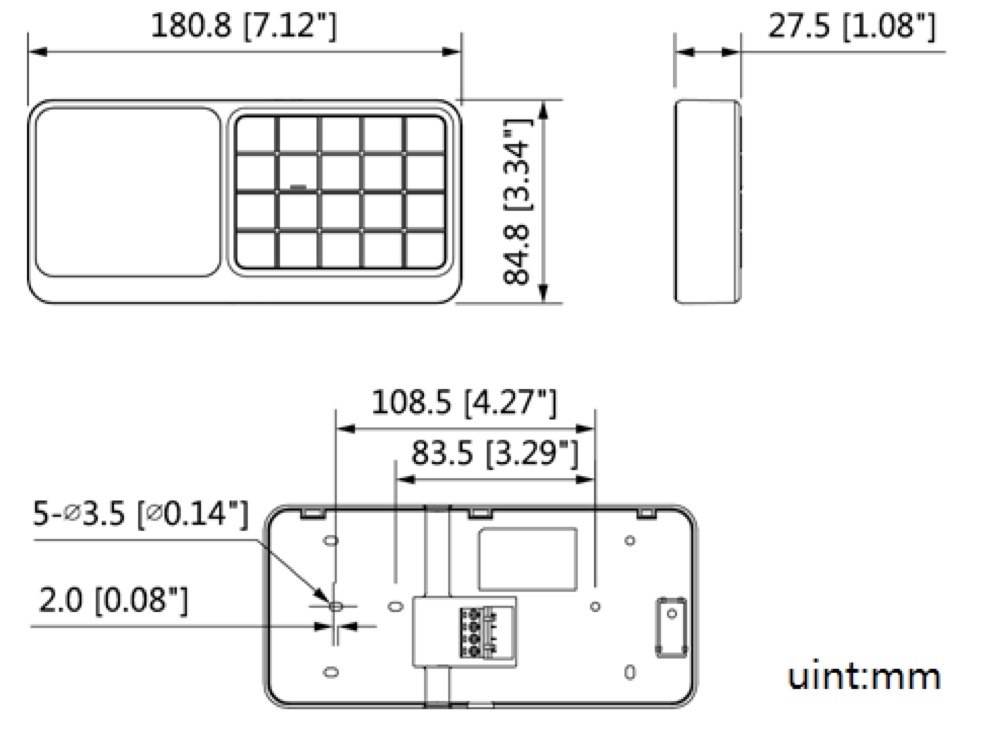

ARD311-W installation diagram

Technical data sheet

ARK30C

Technical Specs

Environmental Class

II

Supply Voltage

12V DC

Enclosure dimensions

180 × 84 × 27 mm

Operating Temperature

-10? ~ +55?

Humidity

10% ~ 90%

Device Weight

?280g

Max. Current Consumption

70mA

Tamper Function

Case tamper and leave-wall tamper supported

Installation

Wall mounting

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
