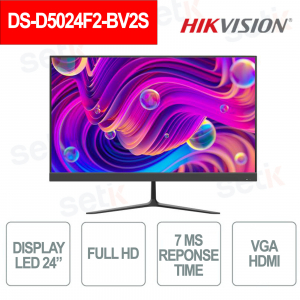

24 INCH LED MONITOR - FULL HD - 7MS - 100HZ - SPEAKER - VGA - HDMI - HIKVISION - DS-D5024F2-BV2S

DESCRIPTION:
DS-D5024F2-BV2S is a 24-inch Full HD (1920x1080) LED display monitor , designed for video surveillance and security . Thanks to anti-glare technology and a wide viewing angle , it guarantees clear and detailed images in all conditions. Equipped with HDMI and VGA inputs , it offers maximum compatibility with DVRs and NVRs. The slim design, low power consumption and 24/7 reliability make it ideal for professional installations.
Quality product.
Product Details:
|
Technical data sheet
| DS-D5024F2-BV2S | |
| Display | |
| Screen Size | 23.8 inches |
| Active Display Area | 527.04 (H) mm × 296.46 (V) mm |
| Resolution | 1920 × 1080 |
| Backlight | E-LED |
| PixelPitch | 0.2745 (H) mm × 0.2745 (V) mm |
| Brightness | 250 cd/m² |
| Viewing Angle | 178° (H) / 178° (V) |
| Color Depth | 8 bit, 16.7M |
| Contrast Ratio | 4000 : 1 |
| Response Time | 7 ms |
| Refresh Rate | Typ. 60 Hz , Max. 100Hz |
| Haze | Haze 25% |
| Reliability | 7 × 24 H |
| Color Gamut | 72% NTSC |
| Interface | |
| Video & Audio Input | VGA × 1,HDMI 1.4 × 1, Audio IN × 1 |
| Video & Audio Output | Speaker × 2 (4Ω 2W) |
| Data Transmission Interface | It is not |
| Control Interface | It is not |
| Power | |
| Power Supply | DC 12V, 2.0A |
| Power Consumption | ≤ 24W |
| Standby Consumption | ≤ 0.5W |
| Working Environment | |
| Working Temperature | 0℃ to 40 ℃ (32 ℉ to 104 ℉) |
| Working Humidity | 20% to 90% RH (Non-Condensing) |
| Storage Temperature | -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉) |
| Storage Humidity | 10% to 90% RH (Non-Condensing) |
| General | |
| Casing Material | Plastic |
| VESA | 75mm × 75mm (4 - M4 × 6mm) |
| Bezel Width | 2.0 mm (top/left/right), 23.55 mm (bottom) |
| Product Dimensions (W × H × D) | With base: 539.7 (W) mm × 399.9 (H) mm × 164.72(D) mm 21.25 (W) inch × 15.74 (H) inch × 6.49 (D) inch Without base: 539.7 (W) mm × 327.33 (H) mm × 43.5 (D) mm 21.25 (W) inch × 12.89 (H) inch × 1.71 (D) inch |
| Package Dimensions (W × H × D) | 652 (W) mm × 445 (H) mm × 116 (D) mm (25.67(W) × 17.52 (H) × 4.57 (D) ) inch |
| Net Weight | 2.85 ± 0.5 kg |
| Gross Weight | 3.85±0.5kg |
| Packing List | Monitor × 1, Component base × 1, Power adapter (12 V, 2.0 A) × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1 |
| Remarks | The base is included by default. The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information |
Further details
![]() |
24" 1920 × 1080 (FullHD) LED display |
![]() |
VESA mount VESA mount compatibility means you can easily mount the LCD to any VESA compatible stand. This model has VESA dimensions of 75x75mm.
|
|
|
This product features 1x HDMI port and 1x VGA port |
| This product features a response time of 7ms. | |
| This product is covered by a 24 month warranty. |
