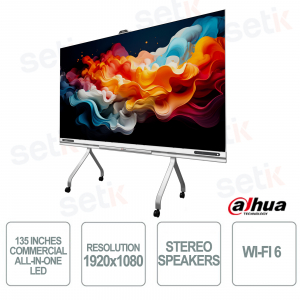

Commercial All-In-One LED - 135 Inch - WiFi 6 - Corner Camera - Dahua

Commercial All-In-One LED - 135 Inch - WiFi 6 - Corner Camera - Dahua
-58% New

PHMIA135-AC - Commercial All-In-One LED - Resolution 1920 x 1080 - Android 11.0 - Wi-fi 6 - Contrast 4000:1 - 10 bit color - 4x15W Stereo Speakers - RJ45 ×1, USB 3.0 ×4, Type-C ×1, HDMI ×2, 1 x Bluetooth 1 x 3.5 mm jack Mic - Ideal for advertising billboards - 160°/140° angle camera - For horizontal use - maximum consumption 2400W - Includes wireless projector, remote control. Dahua



Reference: PHMIA135-AC

Brand: Dahua

EAN: 6923172576804

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

Description Product Details Technical Sheet Further Details Download

COMMERCIAL ALL IN ONE LED - 135 INCHES - 1920 X 1080 - WIFI6 - ANDROID 11.0 - DAHUA - PHMIA135-AC

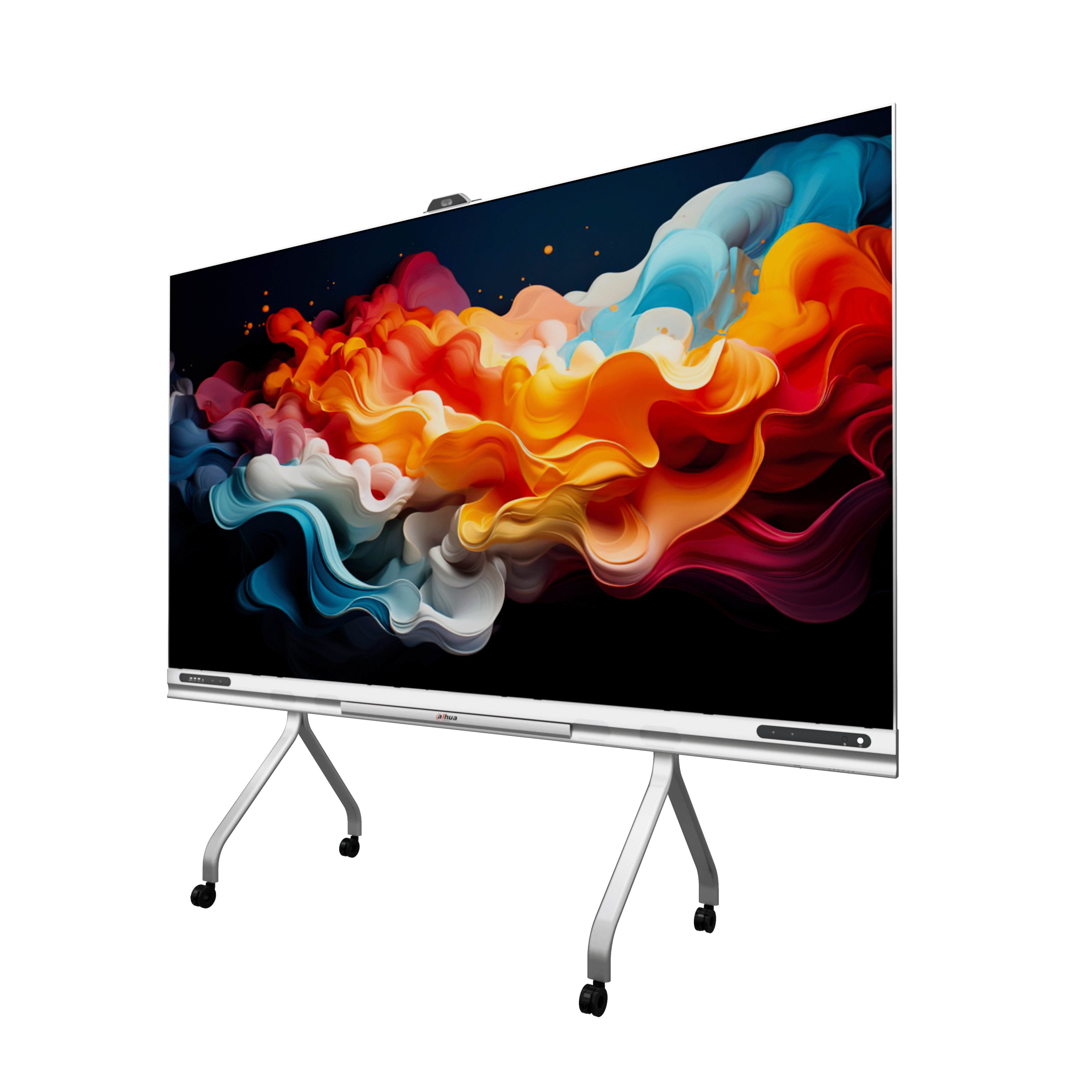

PHMIA135-AC_1


MAIN FEATURES:

  • Commercial All-In-One LED - Dahua - PHMIA135-AC
  • 135-inch integrated display
  • Resolution 1920 x 1080
  • Contrast 4000:1
  • Brightness: 600nits
  • Suitable for horizontal use
  • Built-in camera: 160°/140°
  • RAM 8GB
  • ROM 64GB
  • Android 11.0 operating system
  • Wi-Fi 6 (2.4G and 5G bands)
  • Integrated 2x10W Stereo Speakers
  • Inputs: RJ45x1, USB 3.0x4, Bluetooth×1, Light perception×1, Infrared remote control×1, HDMIx2(1 in 1 out), TYPE-C ×1
  • Power cord, HDMI cable and remote control included
  • Power supply: AC110~220V (+/-10%)
  • Power supply unit: internal
  • Operating temperature: 10 °C to +40 °C
  • Dimensions: 3013.3mm × 1823.7mm × 18.8mm

Technical data sheet

Model PHMIA135-AC
Parameters
PixelPitch 1.56mm
Pixel Configuration 1R1G1B
LED Type SMD 3 IN 1
Brightness(Max) 600 nits
Viewing Angle (H/V°) 160°/140°
Pixel Density 409,600 dots/m2
Module Size 300mm×168.75mm
Display Resolution(W×H) 1920×1080
Visible Area (H x V) 3000mm×1687.5mm
Overall Size (W×H×D) 3013.3mm × 1823.7mm × 18.8mm
Weight 120kg±0.5
Display Size 135 inches
Cabinet Material Die cast aluminum
IP Rating Front IP30/Rear IP30
Operating Temperature/Humidity -10℃~+40℃/10%~90%RH
Storage Temperature/Humidity -20℃~+60℃/10%~60%RH
Grayscale 14bits
Contrast Ratio 4000:1
Refresh Rate 3840 Hz
Input Voltage AC110~220V (+/-10%)
Input Power (Max) 2400W
Input Power (Avg.) 1000W
Installation Mode Movable base/Wall mounted(customizable)
Maintenance Mode Front Maintenance
System / Storage Memory 8G / 64G
Control Interface RJ45x1,USB 3.0x4,Bluetooth×1,WIFI6×1,Light perception×1,Infrared remote control×1
Video Interface HDMIx2(1 in 1 out),TYPE-C ×1
Audio Interface Built-in 4x15W speakers,3.5mm Line Out ×1
System Android 11/Windows 11(Optional)
Standard Accessories Wireless Projector, Remote Control
Vacuum Front Maintenance Tool

Further details

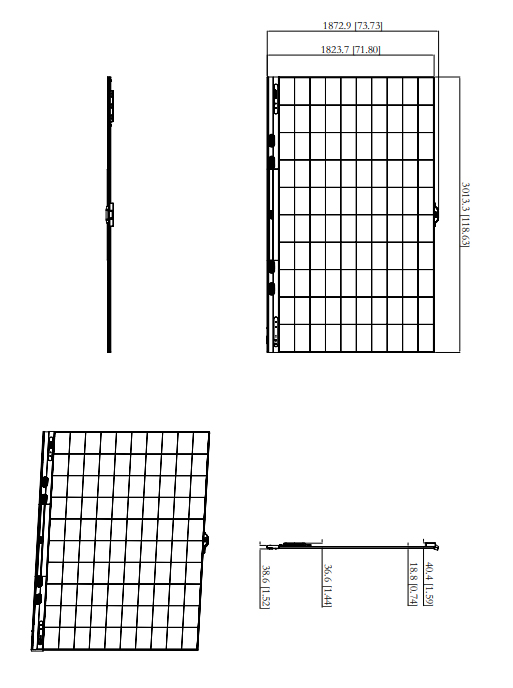

PHMIA135-AC dimensions

Download

Download the English Brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
