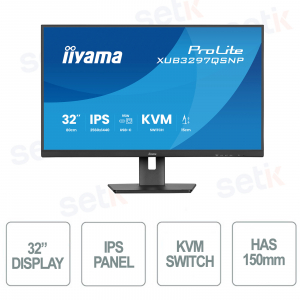

XUB3297QSNP-B1 - 32" QHD IPS Monitor with USB-C Docking, KVM Switch, LAN and Visual Comfort - IIYAMA
The ProLite XUB3297QSNP-B1 is a premium 32-inch QHD (2560×1440) IPS display, ideal for professionals looking for visual quality, productivity and a clean workstation. It integrates a 95W USB-C docking , a KVM switch to control two PCs with a single keyboard and mouse, and an RJ45 LAN port for a direct wired connection. The height-adjustable stand (150 mm) ensures ergonomic use, while Flicker-Free and Blue Light Reducer protect your eyesight. It also offers HDMI, DisplayPort connectivity, a USB hub, stereo speakers and DisplayPort daisy-chaining for multi-monitor setups.
CLEARANCE SALE ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>
XUB3297QSNP-B1 – 32" QHD IPS monitor with USB-C docking, KVM and LAN connection

The ProLite XUB3297QSNP-B1 is a 32” QHD (2560×1440) professional monitor with IPS panel, designed to increase productivity while reducing desk clutter. Equipped with 95W USB-C docking, it allows you to transfer video, data and power with a single cable, also integrating a KVM switch to control two PCs with a single keyboard and mouse, and an RJ45 LAN port for wired networking. The ergonomic height-adjustable stand (150 mm), combined with Flicker-Free and Blue Light Reducer technologies, ensures viewing comfort for long work sessions. In addition, it includes DisplayPort-out for daisy-chaining, a USB hub, stereo speakers and a thin bezel for a modern and efficient workstation.
Main features:
- 32" QHD (2560×1440) display with IPS panel, 350 cd/m² brightness, 1000:1 contrast
- 95W USB-C docking , video/data/voltage support with one cable and RJ45 LAN port
- Built-in KVM switch : Control two computers from one location
- Flicker-Free + Blue Light Reducer : daily visual protection
- Ergonomic support adjustable in height 150 mm for personalized comfort
- DisplayPort‑out with daisy‑chain , 4-port USB hub, 2×2.5 W speakers
Further details
A single cable for power, data and video transmission, reducing clutter.
Switch between PCs with a single keyboard/mouse combo, perfect for multitasking environments.
More workspace and sharp details with 2560×1440 pixels on a 32” screen.
Height, tilt and pivot adaptable to your ergonomic needs.
Technical data sheet
Model | XUB3297QSNP-B1 |
DISPLAY CHARACTERISTICS | |
Design | 3-sided borderless |
Diagonal | 32", 80cm |
Panel | IPS Panel Technology LED, matte finish |
Touch Glass | Anti-Glare Glass with Anti-Gloss treatment, Smooth writing, Zero Gap - Air Bonded, DeepContrast PCAP |
Native resolution | 2560 x 1440 @100Hz (3.7 megapixel QHD) |
Aspect ratio | 16:9 |
Panel brightness | 350 cd/m² |
Static contrast | 1000:1 |
Advanced contrast | 80M:1 |
Response time (MPRT) | 1ms |
Viewing areas | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
Colour support | 1.07B 8bit (sRGB: 99%; NTSC: 72%) |
Horizontal Sync | 30 - 150kHz |
Viewable area W x H | 698.1 x 392.7mm, 27.5 x 15.5" |
Pixel pitch | 0.273mm |
Bezel color and finish | black, matte |
INTERFACES/CONNECTORS/CONTROLS | |
Signal input | HDMI x1 (v.2.0) DisplayPort x1 (v.1.4) USB-C x1 (PD95W) |
Signal output | DisplayPort x1 (Daisy Chain MST max. 2560 x 1440) |
USB HUB | x4 (v.3.2 Gen 1, 2x Type A (5Gbps, 4.5W), 2xType C (5Gbps, 7.5W)) |
USB-C DOCK | x1 (Power delivery 95W, LAN, DP out, USB v.3.2 (Gen 1, 5Gbit)) |
RJ45 (LAN) | x1 |
FEATURES | |
KVM Switches | yes |
Blue light reducer | yes |
Flicker-free | yes |
Adaptive Sync support | yes |
Extra | i-Style colour |
OSD languages | EN, DE, FR, ES, IT, RU, CZ, NL, PL |
Control buttons | Power, Menu, Adjust/Volume/Mute, Adjust/Eco, Input/Exit |
User controls | picture adjust (brightness, contrast, black tuner, sharpness, OD, ACR, Eco, USB-C, USB Charge, MST DP-out), setup menu 2 (video mode adjust, HDMI RGB range, direct drive, adaptive sync, Motion blur reducer, HDR, opening logo, power LED, memory recall) |
Speakers | 2 x 2.5W |
Convenience | Kensington-lock™ prepared, DDC/CI, DDC2B |
MECHANICAL | |
Display position adjustments | height, swivel, tilt |
Height adjustment | 150mm |
Swivel stand | 90°; 45° left; 45° right |
Tilt angle | 23rd up; 5th down |
VESA mounting | 100 x 100mm |
Cable management system | yes |
ACCESSORIES INCLUDED | |
Cables | Power, HDMI, DP, USB-C |
Other | quick start guide, safety guide |
POWER MANAGEMENT | |
Power supply unit | internal |
Power supply | AC 100 - 240V, 50/60Hz |
Power usage | 40W typical, 0.5W stand by, 0.3W off mode |
SUSTAINABILITY | |
Regulations | TCO Certified, CE, TÜV-GS, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA |
Energy efficiency class (Regulation (EU) 2017/1369) | F |
REACH SVHC | above 0.1%: Lead |
Warranty | 5 years (for details and eligible countries please check the Warranty section of our website) |
DIMENSION/WEIGHT | |

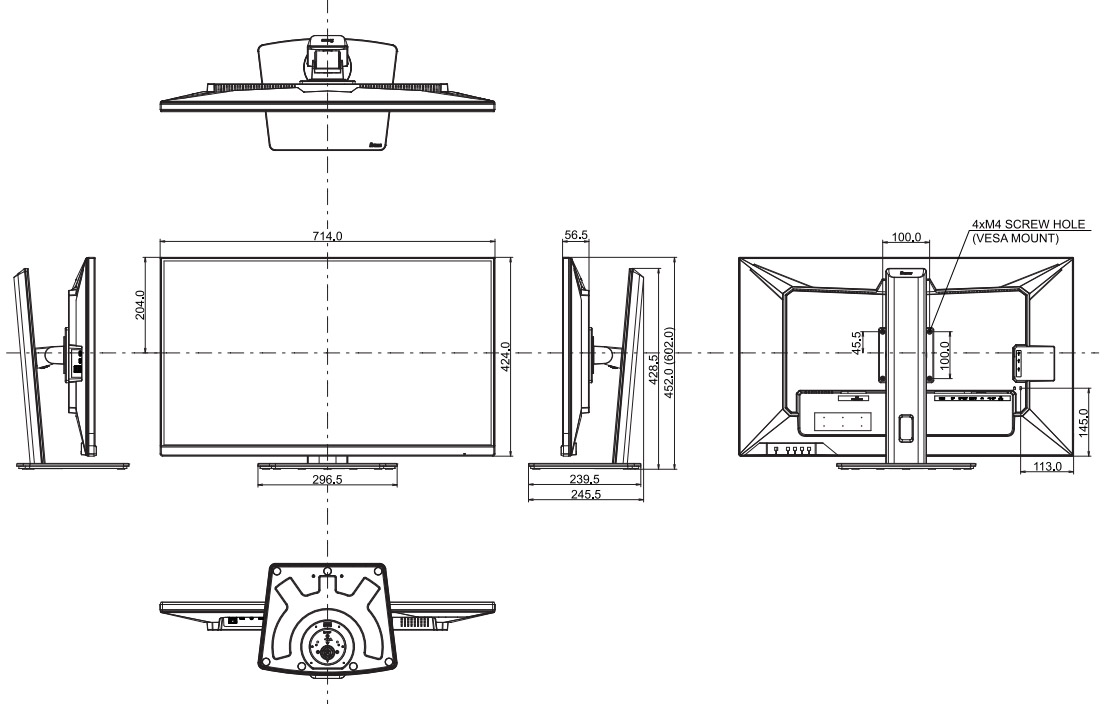

Product dimensions W x H x D | 714 x 452 (602) x 245.5mm |
Box dimensions W x H x D | 795 x 506 x 185mm |
Weight (without box) | 9.5kg |
Weight (with box) | 11.6kg |
