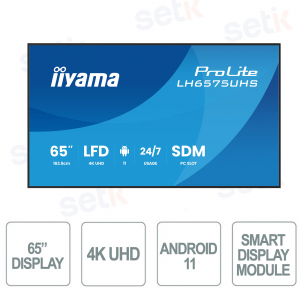

LH6575UHS‑B2AG – 65" 4K UHD Android 11 Display for Digital Signage 24/7

Made by IIYAMA

The ProLite LH6575UHS-B2AG is a 65" 4K UHD (3840x2160) professional display with a 500 cd/m² IPS panel, designed for critical digital signage applications with continuous 24/7 operation in both landscape and portrait modes. It features Android OS 11 and the iiSignage² platform for secure remote content management, a Smart Display Module (Intel SDM) slot for embedded PC modules and Signal FailOver technology to ensure messages remain active even if the signal is lost. It also features integrated stereo speakers, neat cable management, DP-Out ports for daisy-chaining and wireless control with iiControl, iiShare and EShare.

Main features:

- 65" 4K UHD (3840×2160) display with high brightness IPS panel (500 cd/m²)

- Android 11 system + iiSignage², for remote viewing and management of contents

- Smart Display Module (SDM): Supports embedded PC modules for flexibility and security

- Signal FailOver: Automatic input selection for always-on content

- 24/7 flexible orientation: continuous operation in landscape or portrait mode

- Built-in speakers (2×10 W) for full-range audio, perfect for multimedia

- Cable management system: channels and clips for clean and professional installations


Further details

The ProLite LH6575UHS-B2AG is a 65" professional monitor designed for advanced digital signage applications with 24/7 use. Running Android 11 , it offers maximum flexibility in local and remote management with the iiSignage² CMS . The Smart Display Module (SDM) integration allows the addition of PC modules for advanced functions, while Signal FailOver technology ensures business continuity in the event of signal interruptions. With flexible orientation, integrated stereo speakers and optimised cable management, it is ideal for retail, corporate and educational environments.

Android OS :
Integrated operating system for easy app installation and management
iiSignage²:
Digital signage platform for secure remote control of content
Signal FailOver:
Automatically switches to a backup source if signal is lost
Smart Display Module (Intel® SDM):
Slot for integrable PC modules, maximum expandability
Flexible Orientation:
Vertical or horizontal installation, 24/7 continuous operation
Speakers:
Built-in dual 10W stereo speakers for powerful and clear audio
Cable Management:
Integrated system to keep cables tidy and protected

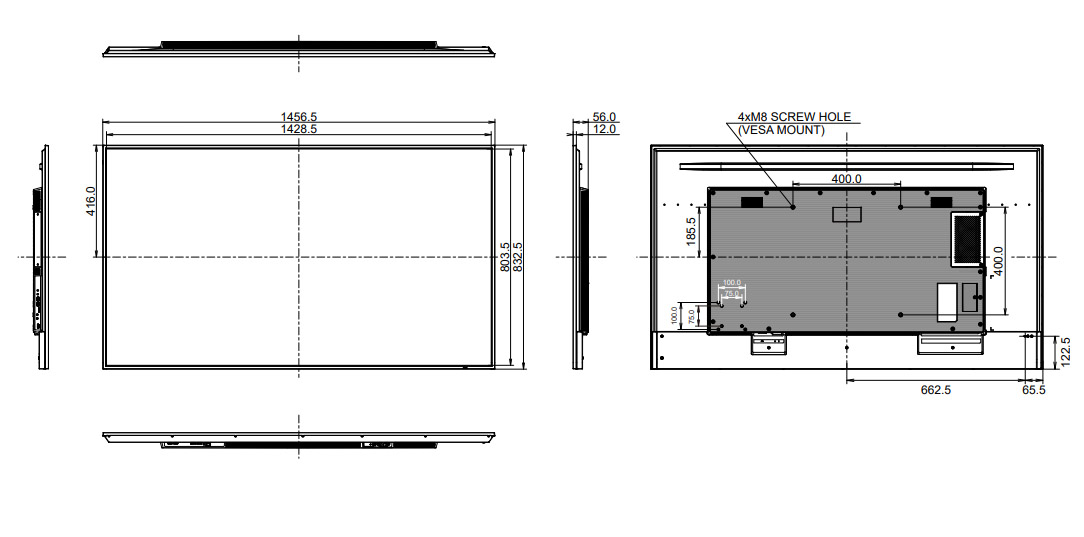

LH6575UHS-B2AG dimensions

Technical data sheet

Model LH6575UHS-B2AG
DISPLAY CHARACTERISTICS
Design Thin bezel
Diagonal 64.5", 164cm
Panel IPS, Anti-Glare Coated Glass, haze 25%
Native resolution 3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD)
Aspect ratio 16:9
Panel brightness 500 cd/m²
Static contrast 1200:1
Response time (GTG) 8ms
Viewing areas horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 1.07B 8bit+FRC (NTSC 72%)
Horizontal Sync 28 - 160kHz
Viewable area W x H 1428.5 x 803.5mm, 56.2 x 31.6"
Bezel width (sides, top, bottom) 14.9mm, 14.9mm, 14.9mm
Pixel pitch 0.372mm
Bezel color and finish black, matte
INTERFACES/CONNECTORS/CONTROLS
Signal input HDMI x3 (2.0, max. 3840x2160 @60Hz, ARC on HDMI #3)
DisplayPort x1 (1.2, max. 3840x2160 @60Hz)
Monitor control input RS-232c x1 (2.5mm sub-mini jack)
RJ45 (LAN) x1 (3.5mm stereo mini)
IR x1 (3.5mm stereo mini)
Digital signal output DisplayPort x1 (max. 3840x2160 @60Hz, MST-out Daisy Chain v.1.2)
Audio output Mini-jack x1 (3.5mm)
Speakers 2 x 10W
Monitor control output RS-232c x1 (2.5mm sub-mini jack)
IR loop through x1 (3.5mm stereo mini)
HDCP 2.2
USB ports x2 (2.0)
FEATURES
Integrated software Android 11 OS, iiSignage², iiControl, iiShare, EShare, FailOver
WiFi yes (Built-in, 802.11ac)
Adaptive Sync support CPU: A311D2 Octa-core A73*4+A53*4, GPU: G52 MP8, RAM: 4GB, ROM: 32GB
Extra Intel® SDM-L, micro SD card slot
Max. non-stop operating time 24/7
Anti-image retention yes
Video wall / daisy chain Yes, from any input signal, (MST-output via DP-Out)
Media playback yes
Housing (bezel) metal
GENERAL
OSD languages EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB
Control buttons Power (longpress for Quick Menu)
User controls picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, color temp., color control, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out, max. volume, min. volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), configuration 2 (OSD timeout, OSD H-Position, OSD V-position, system rotation, info OSD, logo and animation, logo setting, animation setting, monitor ID, group ID, monitor info, DP version, DP monitors, HDMI version, configuration 2 reset), advanced options (no signal image, motorized stand, IR control, power LED light, tiling, off timer, schedule, HDMI with One Wire, HDMI with One Wire power off, Signal FailOver, language, OSD transparency, power saving, auto power off, SDM settings, advanced options reset), Android settings (network & internet, apps & notifications, display, signage display, security, language & input, date & time, about device)
Plug&Play DDC2B
MECHANICAL
Orientation landscape, portrait
Fanless design yes
VESA mounting 400 x 400mm
Mini PC mount VESA 75 x 75, VESA 100 x 100
Operating temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C
MTBF 44,000 hours (excluding backlight)
ACCESSORIES INCLUDED
Cables power, HDMI, RS-232c
Guides quick start guide, safety guide
Other Stickers for screw holes, wire buckles
Remote control yes (batteries included)
POWER MANAGEMENT
Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 172W typical, 0.5W stand by, 0.3W off mode
SUSTAINABILITY
Regulations CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH
Energy efficiency class (Regulation (EU) 2017/1369) G
DIMENSION/WEIGHT
Product dimensions W x H x D 1456.5 x 832.5 x 56mm
Box dimensions W x H x D 1645 x 1016 x 162mm
Weight (without box) 21.2kg
Weight (with box) 29.2kg
