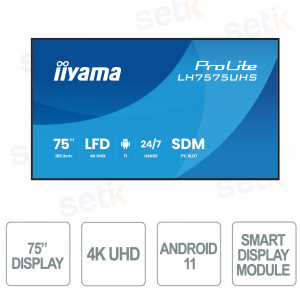

LH7575UHS-B2AG - 75" 4K monitor iiyama ProLite – Android 11 and Digital Signage 24/7

LH7575UHS-B2AG - 75" 4K monitor iiyama ProLite – Android 11 and Digital Signage 24/7

New

The iiyama ProLite LH7575UHS‑B2AG is a 75" 4K UHD professional display with a 500 cd/m² IPS panel, designed for mission-critical digital signage with 24/7 operation in landscape or portrait mode. Powered by Android 11 and the iiSignage² platform, it enables secure remote control of content, while the Intel SDM slot facilitates the integration of PC modules. Signal FailOver ensures message continuity in the event of signal interruption, while DP-Out support for daisy-chaining , built-in stereo speakers and professional cable management complete a reliable, flexible and enterprise-ready solution.

Technical Data Sheet

Reference: LH7575UHS-B2AG

Brand: IIYAMA

EAN: 4948570125272

Manufacturer Object ( [id] => 23 [name] => IIYAMA [description] =>

You can choose and buy online the monitor for video surveillance that best suits your needs, given the wide range of monitors and high quality. It is a multinational brand among the first for importance in the field of video surveillance monitors and now on Setik you can buy it comfortably in Italy, directly online.

Why adopt a Iiyama monitor?
Iiyama offers a wide range of monitors for video surveillance, ideal for meeting rooms and interactive experiences both among colleagues and between company and customers.

[short_description] =>

Monitor Videosurveillance IIYAMA

IIYAMA MONITOR
Setik is distributor for Italy of the brand IIYAMA, manufacturer of monitors of the highest quality and ideal for the video surveillance sector.

[id_address] => [date_add] => 2016-06-10 09:07:26 [date_upd] => 2022-04-07 12:19:37 [link_rewrite] => iiyama [meta_title] => Monitor IIYAMA [meta_keywords] => Iiyama monitor, monitors videosurveillance [meta_description] => A wide range of Iiyama monitors are available on Setik.biz, monitors for video surveillance of the highest quality. Discover Iiyama monitors on Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

LH7575UHS-B2AG – 75" 4K UHD Android Display for Digital Signage 24/7

Made by IIYAMA

The ProLite LH7575UHS-B2AG is a powerful 75" 4K UHD professional display designed for mission-critical digital signage with 24/7 operation. It features Android OS, iiSignage² CMS for secure remote control and Signal FailOver, which ensures display even in the absence of a signal. It includes a Smart Display Module (SDM) slot for integrated PC modules, supports flexible orientation (landscape or portrait), integrates stereo speakers and a clean cable management system, making it perfect for retail, corporate or educational environments.

Main features:

- 75" 4K UHD (3840×2160) display with high brightness IPS panel (500 cd/m²)

- Android OS: Integrated operating system for native apps and content

- iiSignage² : CMS for remote management and secure content publishing

- Smart Display Module (SDM): slot for inserting an internal PC module

- Signal FailOver: automatic switching between sources in case of signal interruption

- Flexible Orientation: use in both landscape and portrait modes without stopping

- Built-in speakers: Built-in stereo speakers for clear and powerful multimedia audio

- Cable Management: integrated system to hide and organize cables


Further details

The ProLite LH7575UHS-B2AG is a 75-inch 4K UHD display designed for enterprise-grade digital signage solutions. It offers 24/7 operation, maximum reliability and installation flexibility, with simplified content management thanks to the Android operating system and the iiSignage² platform. Perfect for corporate, retail and public environments.

Android OS :
Integrated operating system for apps, local management and intuitive customization.
iiSignage²:
Integrated CMS software for remote and secure management of digital content.
Signal FailOver:
Automatic switching to secondary source if main signal is lost.
Smart Display Module (SDM):
Intel SDM PC Module slot, ideal for advanced features without external hardware.
Flexible Orientation:
Support both vertical and horizontal mode installation, with 24/7 continuous operation.
Speakers:
Built-in 10W stereo speakers for clear audio communication in public environments.
Cable Management:
Tidy system to hide and protect cables, improving aesthetics and safety.

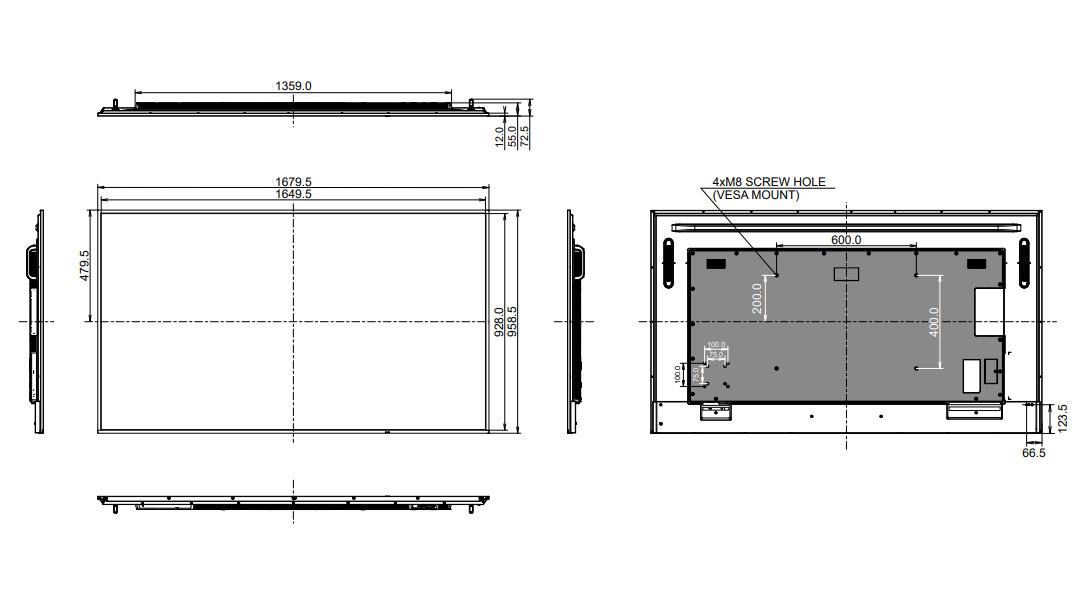

LH7575UHS-B2AG dimensions

Technical data sheet

Model LH6575UHS-B2AG
DISPLAY CHARACTERISTICS
Design Thin bezel
Diagonal 75", 189.3cm
Panel IPS, Anti-Glare Coated Glass, haze 25%
Native resolution 3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD)
Aspect ratio 16:9
Panel brightness 500 cd/m²
Static contrast 1200:1
Response time (GTG) 8ms
Viewing areas horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 1.07B 8bit+FRC (NTSC 72%)
Horizontal Sync 28 - 160kHz
Viewable area W x H 1650 x 928mm, 65 x 36.5"
Bezel width (sides, top, bottom) 14.9mm, 14.9mm, 14.9mm
Pixel pitch 0.429mm
Bezel color and finish black, matte
INTERFACES/CONNECTORS/CONTROLS
Signal input HDMI x3 (2.0, max. 3840x2160 @60Hz, ARC on HDMI #3)
DisplayPort x1 (1.2, max. 3840x2160 @60Hz)
Monitor control input RS-232c x1 (2.5mm sub-mini jack)
RJ45 (LAN) x1 (3.5mm stereo mini)
IR x1 (3.5mm stereo mini)
Digital signal output DisplayPort x1 (max. 3840x2160 @60Hz, MST-out Daisy Chain v.1.2)
Audio output Mini-jack x1 (3.5mm)
Speakers 2 x 10W
Monitor control output RS-232c x1 (2.5mm sub-mini jack)
IR loop through x1 (3.5mm stereo mini)
HDCP 2.2
USB ports x2 (2.0)
FEATURES
Integrated software Android 11 OS, iiSignage², iiControl, iiShare, EShare, FailOver
WiFi yes (Built-in, 802.11ac)
Adaptive Sync support CPU: A311D2 Octa-core A73*4+A53*4, GPU: G52 MP8, RAM: 4GB, ROM: 32GB
Extra Intel® SDM-L, micro SD card slot
Max. non-stop operating time 24/7
Anti-image retention yes
Video wall / daisy chain Yes, from any input signal, (MST-output via DP-Out)
Media playback yes
Housing (bezel) metal
GENERAL
OSD languages EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB
Control buttons Power (longpress for Quick Menu)
User controls picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, color temp., color control, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out, max. volume, min. volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), configuration 2 (OSD timeout, OSD H-Position, OSD V-position, system rotation, info OSD, logo and animation, logo setting, animation setting, monitor ID, group ID, monitor info, DP version, DP monitors, HDMI version, configuration 2 reset), advanced options (no signal image, motorized stand, IR control, power LED light, tiling, off timer, schedule, HDMI with One Wire, HDMI with One Wire power off, Signal FailOver, language, OSD transparency, power saving, auto power off, SDM settings, advanced options reset), Android settings (network & internet, apps & notifications, display, signage display, security, language & input, date & time, about device)
Plug&Play DDC2B
MECHANICAL
Orientation landscape, portrait
Fanless design yes
VESA mounting 600 x 400mm
Mini PC mount VESA 75 x 75, VESA 100 x 100
Operating temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C
MTBF 44,000 hours (excluding backlight)
ACCESSORIES INCLUDED
Cables power, HDMI, RS-232c
Guides quick start guide, safety guide
Other Stickers for screw holes, wire buckles
Remote control yes (batteries included)
POWER MANAGEMENT
Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 187W typical, 0.5W stand by, 0.3W off mode
SUSTAINABILITY
Regulations CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH
Energy efficiency class (Regulation (EU) 2017/1369) G
DIMENSION/WEIGHT
Product dimensions W x H x D 1679.5 x 958.5 x 55mm
Box dimensions W x H x D 1883 x 1140 x 186mm
Weight (without box) 29.5kg
Weight (with box) 41kg
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
