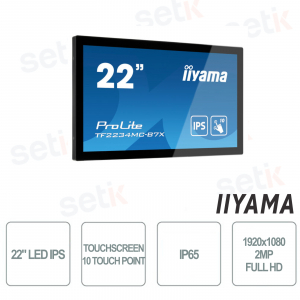

IIYAMA - Monitor With 10-point 22-inch touchscreen - IPS LED - FULL HD

IIYAMA - Monitor With 10-point 22-inch touchscreen - IPS LED - FULL HD
CERCHI ASSISTENZA O UN INSTALLATORE?

The ProLite TF2234MC-B7X is a 21.5 "Touch monitor with 1920x1080 FULL HD resolution and touch technology . LED backlit LCD screen with IPS panel technology, anti-fingerprint coating . Static contrast 1000: 1 with touch, fast response times 8 ms, VGA , Display Port, HDMI, USB, Vesa connection 100x100mm, energy class F - Matt black color.



Reference: TF2234MC-B7X

Brand: IIYAMA

EAN: 4948570118366

€464.82

taxes included
Tax included
 Available in 5 days

PRODUCT NOT AVAILABLE, DISCOUNT NOW 5%



22 "IIYAMA PROLITE MONITOR WITH TOUCHSCREEN DISPLAY - IP65

Made by IIYAMA
22 "IPS IIYAMA monitor
Size: 21.5 " - IPS Display Panel LED technology - 1920x1080 resolution - Touchscreen , scratch resistant
VGA - DISPLAY PORT - HDMI - USB
Response Time 8ms - 3 Year Direct Manufacturer Warranty

Product details


  • 22 " IPS Monitor - IIYAMA TF2234MC-B7X
  • Type: IPS LED Technological Panel
  • 21.5 Inch Touch Touchscreen Display - PCAP
  • 1920x1080 resolution
  • VGA - DISPLAY PORT - HDMI
  • Response time 8 ms
  • USB
  • Static contrast ratio: 1000: 1 with touch
  • VESA mount support
  • Dimensions: 517.5 x 313.5 x 46mm
  • Color: black, matte

Data sheet

Model TF2234MC-B7X
DISPLAY CHARACTERISTICS
design Open Frame
Diagonal 21.5 ", 54.6cm
Panel IPS LED
Native resolution 1920 x 1080 (2.1 megapixel Full HD)
Aspect ratio 16: 9
Brightness 350 cd / m² typical
Brightness 305 cd / m² with touch
Static contrast 1000: 1 with touch
Light transmittance 87%
Response time 8ms
Viewing zone horizontal / vertical: 178 ° / 178 °, right / left: 89 ° / 89 °, up / down: 89 ° / 89 °
Color support 16.7mln (8bit)
Horizontal Sync 30 - 84kHz
Viewable area W x H 476.0 x 267.7mm, 18.7 x 10.5 "
Pixel pitch 0.247mm
Color black, matte
TOUCH
Touch technology projective capacitive
Touch points 10 (HID, only with supported OS)
Touch method stylus, finger, glove
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Through-Glass 6mm
Palm rejection yes
INTERFACES / CONNECTORS / CONTROLS
Analog signal input VGA x1
Digital signal input HDMI x1 DisplayPort x1
HDCP Yes
FEATURES
Extra anti-fingerprint coating, touch through-glass
Glass thickness 1.5mm
Water and dust protection IP65 (front)
GENERAL
OSD languages EN, DE, FR, ES, IT, CN, JP
Control buttons Menu, Scroll up / Brightness, Scroll down / Contrast, Select, Power
User controls picture (contrast, brightness, H-position, V-position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H-position, V-position), option (reset, language, source select, display mode, factory)
Plug & Play DDC2B
MECHANICAL
Orientation landscape, portrait, face-up
VESA mounting 100 x 100mm
ACCESSORIES INCLUDED
Cables power, USB, HDMI, DP
Guides quick start guide, safety guide
Othe AC adapter
POWER MANAGEMENT
Power Supply Unit external
Power Supply DC 12 V
Power Usage 18W typical, 1.5W stand by, 0.3W off mode
SUSTAINABILITY
Regulations CE, EAC, RoHS support, ErP, WEEE, cULus, REACH
Energy efficiency class (Regulation (EU) 2017/1369) F.
Other RREACH SVHC above 0.1%: Lead
DIMENSIONS & WEIGHT
Product dimensions W x H x D 517.5 x 313.5 x 46mm
Box dimensions W x H x D 610 x 405 x 160mm
Weight (without box) 4.4kg
Weight (with box) 6.8KG
EAN code 4948570118366

Further details

Risoluzione 2.0 Megapixel Full-HD 1920x1080

FULL HD resolution (1920 x 1080)

FULL HD

With a resolution of 1920 x 1080p the monitor displays high definition images. This means that it is possible to have more information on the screen; for example it captures 60% more info than a 1280 x 1024 monitor.

Risoluzione FULL HD 1920x1080 Monitor E2280HS-B1

capacitive touchscreen

Touch technology - Capacitive

This technology uses a grid of micro-wire sensors built into the glass that covers the screen. Contact is detected because the electrical characteristics of the sensor grid change when the human finger is placed on the glass. Thanks to the glass cover this technology is highly durable and the touch function remains unaffected even if the glass is scratched. It offers perfect image performance and works with the human finger (even with latex gloves) and stylus pen.

Projective capacitive touchscreen

Backlit LED display

LED backlit LED monitor

21.5 " backlit LED display.
High quality images.

Common LCD CCFL monitors use 4 backlit bulbs.
Using LED diodes considerably reduces energy consumption and CO2 emissions into the environment making this LCD a true ECO-FRIENDLY product

Scratch resistant display

Scratch resistant

Scratch resistance is essential for tactile solutions used in public places and schools. This result is achieved thanks to a glass plate that covers the screen. It guarantees a long life of the touch function and, more importantly, the touch function remains unchanged even if the glass is scratched.



USB

Questo DVR presenta 1 porta HDMIVGA output

Display port

This product features 1x HDMI port , 1x VGA port and 1x DVI

Vesa attack

VESA connection

VESA mount compatibility means you can easily mount the LFD to any VESA compatible mount.

This model has VESA dimensions for mounting equal to 100x100mm.

VESA connection

Garanzia diretta fornitore 3 anni

This product is covered by the manufacturer's 3 YEAR DIRECT Warranty .

Download

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
