The iiyama ProLite TF2738MSC-B2 27" monitor with 10-point PCAP multitouch technology is ideal for kiosks, interactive applications and industrial environments. The Full HD IPS panel offers accurate colors and wide viewing angles, while the reinforced edge-to-edge glass ensures durability and a modern design. It supports horizontal, vertical and face-up installation. The Open Frame chassis facilitates integration into custom structures. Compatible with smart systems and AI solutions for advanced interactive experiences.
CLEARANCE SALE ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>
TF2738MSC-B2 – 27" monitor with touchscreen display

The 27" iiyama ProLite TF2738MSC-B2 monitor is designed to deliver high performance in interactive and professional environments such as digital kiosks, retail applications, vending machines, control rooms and industrial automation. Equipped with PCAP (Projected Capacitive) technology with 10 simultaneous touches, it ensures smooth, precise and responsive user interaction even with external protective glass. The Full HD IPS panel ensures true-to-life colors and wide viewing angles (178°), while the tempered edge-to-edge glass protects against bumps and scratches. The open frame metal structure allows for seamless integration into custom installations. The monitor supports horizontal, vertical and face-up mounting, with 24/7 operation, making it ideal for always-on contexts and compatible with smart ecosystems and AI-based platforms. Robust design, operational reliability and maximum flexibility make it a strategic choice for interactive and intelligent digital projects.
Main features:
- 10-point PCAP touch technology
- 27" Full HD (1920x1080) display with IPS panel
- Reinforced edge-to-edge glass
- Versatile installation: horizontal, vertical, face-up
- Open Frame Structure
- Continuous operation 24/7
- AI & smart systems compatibility
Further details
It offers accurate, uniform colors and wide viewing angles (178°), perfect for public, retail and smart information kiosk applications.
Supports up to 10 simultaneous touches with absolute precision, ideal for advanced multitouch interfaces and AI-based interactions.
Metal structure designed for integration into kiosks, embedded systems or customized solutions at industrial or commercial level.
Maximum protection in high traffic environments, with a continuous surface that is easy to clean and designed to last over time.
Embedded stereo audio for multimedia, interactive guides or voice feedback in intelligent and interactive systems.
Technical data sheet
Model | TF2738MSC-B2 |
DISPLAY CHARACTERISTICS | |
design | Open Frame |
Diagonal | 27", 68.6cm |
Panel | IPS LED |
Native resolution | 1920 x 1080 (2.1 megapixel Full HD) |
Aspect ratio | 16:9 |
Brightness | 500 cd/m² typical |
Brightness | 425 cd/m² with touch |
Static contrast | 1000:1 with touch |
Advanced contrast | 12M:1 |
Light transmittance | 85% |
Response time (GTG) | 5ms |
Viewing areas | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
Colour support | 16.7mln (8bit) |
Horizontal Sync | 30 - 80kHz |
Viewable area W x H | 597.6 x 336.2mm, 23.5 x 13.2" |
Bezel width (sides, top, bottom) | 24.5mm, 24mm, 24mm |
Pixel pitch | 0.311mm |
Bezel color and finish | black, matte |
TOUCH | |
Touch technology | projective capacitive |
Touchpoints | 10 (HID, only with supported OS) |
Touch method | stylus, finger, glove |
Touch interface | USB |
Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
INTERFACES / CONNECTORS / CONTROLS | |
Digital signal input | DVI x1 HDMI x1 DisplayPort x1 |
HDCP | Yes |
Audio output | Speakers 2 x 3W |
FEATURES | |
Max. non-stop operating time | 16/7 |
Glass thickness | 3.6mm |
Glass hardness | 6H |
60950 Ball drop test | yes |
OSD key lock | yes |
Water and dust protection | IPX1 (front) |
GENERAL | |
OSD languages | EN, DE, FR, ES, IT, CN, JP |
Control buttons | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
User controls | picture (contrast, brightness, H-position, V-position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H-position, V-position), option (reset, language, source select, display mode, factory) |
Plug&Play | DDC2B |
MECHANICAL | |
Orientation | landscape, portrait, face up |
Fanless design | Yes |
VESA mounting | 100x100mm, 200x100mm |
ACCESSORIES INCLUDED | |
Cables | Power, USB, HDMI, DP |
Guides | quick start guide, safety guide |
Cable cover | yes |
POWER MANAGEMENT | |
Power Supply Unit | internal |
Power Supply | AC AC - 100V, 240/V, 50Hz |
Power Usage | 25W typical, 1.5W stand by, 0.3W off mode |
SUSTAINABILITY | |
Regulations | CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
Energy efficiency class (Regulation (EU) 2017/1369) | F |
Other | REACH SVHC above 0.1%: Lead |
DIMENSIONS & WEIGHT | |

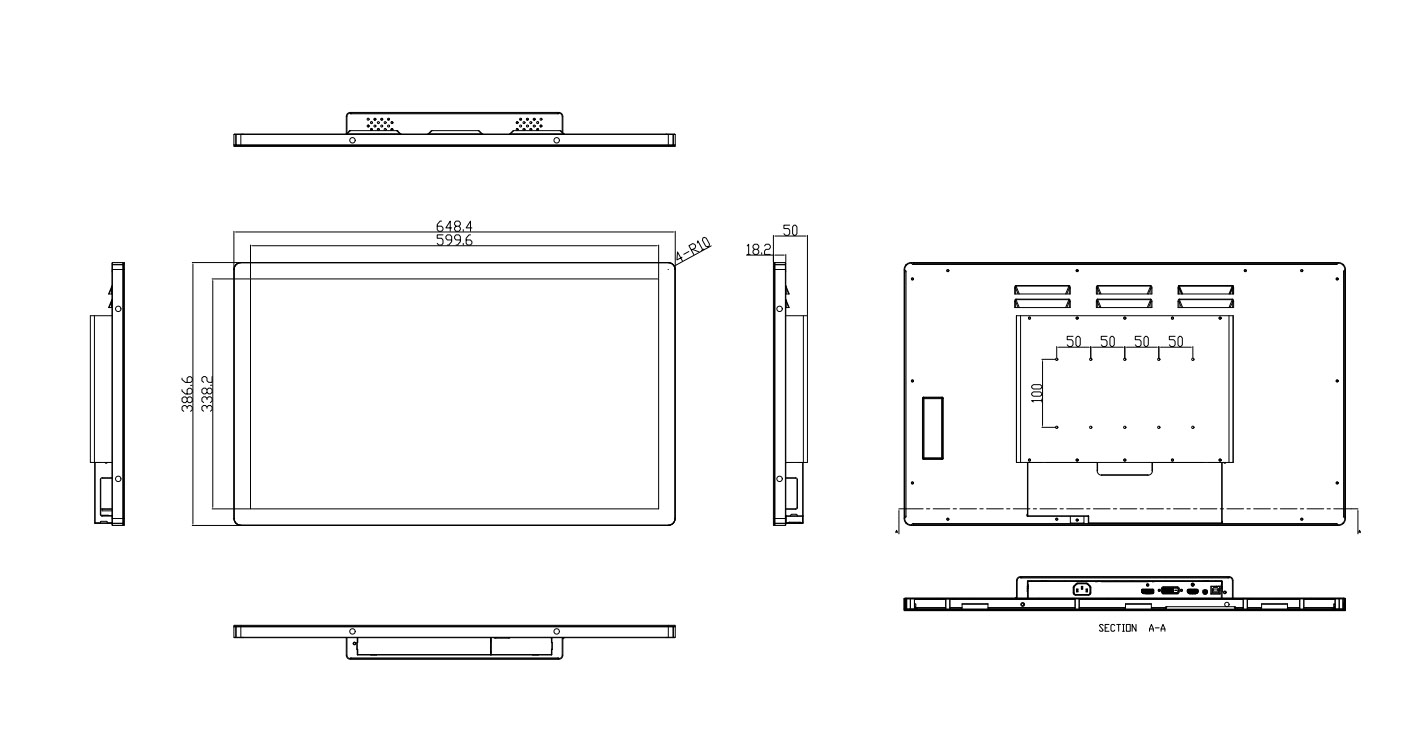

Product dimensions W x H x D | 648.5 x 386.5 x 52mm |
Box dimensions W x H x D | 746 x 500 x 123mm |
Weight (without box) | 8.3kg |
Weight (with box) | 9.4KG |
