The ProLite _ _ Response times in 0.8ms, advanced contrast ratio 80M:1, Display Port 1x, HDMI 2x, USB-C 1x, Speakers and Headphones output. IIYAMA
discover the available quantity

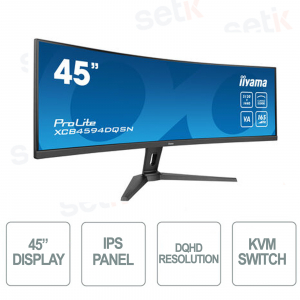

PROLITE CURVED 45" MONITOR WITH SPEAKERS AND HEADPHONES OUTPUT FLICKER FREE - FREESYNC - BLUE LIGHT - KVM SWITCH - USB-C - IIYAMA
Size: 45" - DUAL Curved Display - D QHD - KVM Switch
Speakers - Headphones Output - Inputs ( Display Port + HDMI 2x + USB-C ) - Flicker Free and Blue Light - Freesync
3 Years Direct Manufacturer's Warranty
Product details
- Curved Monitor - IIYAMA
- Type: UWQHD IPS monitor
- 45 Inch Display
- Flicker Free Technology (Anti Flicker) and Blue Light Reducer (Anti Eye Fatigue) & FreeSync
- Integrated speakers ( 2 x 3 W)
- Headphone output
- KVM Switch ( allows you to share devices connected via USB to the monitor with two different PCs )
- USB-C
- Vesa connection support
- HDMI - Display Port - USB-C
- Response time 0.8 ms
- Static contrast ratio 3 000 : 1
- Energy efficiency class: F
- Dimensions: 1090 x 409 (539) x 275mm
- Color: Black, Matte
Data sheet
| Model | XCB4594DQSN-B1 |
| DISPLAY CHARACTERISTICS | |
| Design | 3-side borderless |
| Diagonal | 45", 113cm |
| Panel | VA panel |
| Curved | 1500R |
| Native resolution | 5120 x 1440 @165Hz (7.4 megapixel DQHD) |
| Aspect ratio | 32:9 |
| Brightness | 450 cd/m² |
| Static contrast | 3000:1 |
| Advanced contrast | 80M:1 |
| Response time | 0.8ms |
| Viewing zones | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Color support | 16.7m (sRGB: 100%; NTSC: 80%) |
| Horizontal Sync | 30 - 260kHz |
| Viewable area W x H | 1087.5 x 305.9mm, 42.8 x 12" |
| Pixel pitch | 0.212mm |
| Colour | crazy, Black |
| INTERFACES / CONNECTORS / CONTROLS | |
| Signal input | HDMI x2 (v.2.1) DisplayPort x1 (v.1.4) USB-C x1 (Power delivery 90W) |
| USB HUB | x3 (v.3.2 (Gen 1, 5Gbit, DCSV, 900 mA)) |
| USB-C Dock | x1 Power delivery 90W, LAN, USB 3.2 (Gen 1, 5Gbit) |
| HDCP | yes |
| Headphone Connector | yes |
| RJ45 (LAN) | x1 |
| FEATURES | |
| KVM Switches | yes |
| Blue light reducer | yes |
| Flicker free | yes |
| FreeSync support | yes |
| Extra | i-Style Colour |
| HDR | 400 |
| OSD language | EN, DE, FR, ES, IT, PT, RU, JP, NL, PL |
| Control buttons | Navigation (power) button: Center (Menu/Excurtion), Down (i-Style Colour), Up (input Select), Right (Volume), Left (ECO Mode), Power |
| User controls | picture (brightness, contrast, black tuner, sharpness, OD, ACR, ECO mode, X-Res, technology), color (warm, normal, cool, user colour, i style colour, blue light reducer), Input select, PBP ( PBP mode, sub win input, PBP swap, audio input), audio (volume, mute), language, OSD, setting (OSD H.position, OSD V. position, OSD background, OSD time out, information), setup menu 1 (MST, DSC, KVM, USB-C, USB BC), setup menu 2 (video mode adjust, HDMI RGB range, direct drive, adaptive sync, MBR, HDR, opening logo LED, memory recall) |
| Speakers | 2 x 3W |
| Convenience | Kensington-lock™ prepared, DDC/CI, DDC2B, Mac OSX |
| MECHANICAL | |
| Display position adjustments | height, tilt |
| Height adjustment | 130mm |
| Tilt angle | 20th up; 3rd down |
| VESA mounting | 200 x 100mm |
| Cable management system | yes |
| ACCESSORIES INCLUDED | |
| Cables | power, USB, HDMI, DP, USB-C |
| Others | quick start guide, safety guide |
| POWER MANAGEMENT | |
| Power Supply Unit | internal |
| Power Supply | AC 100 - 240V, 50/60Hz |
| Power Usage | 37W typical, 0.5W stand by, 0.3W off mode |
| SUSTAINABILITY | |
| Regulations | CE, TÜV-Bauart, EAC, PSE, RoHS support, ErP, WEEE, VCCI, REACH, UKCA |
| Energy efficiency class | F |
| REACH SVCH | above 0.1%: Leads |
| Others | REACH SVCH above 0.1%: Lead |
| DIMENSIONS & WEIGHT | |
| Product dimensions W x H x D | 1090 x 409 (539) x 275mm |
| Box dimensions W x H x D | 1260 x 470 x 315mm |
| Weight (without box) | 11.2kg |
| Weight (with box) | 16.4kg |
Further details
 | ULTRA WIDE Resolution - UWQHD (5120 x 1440) UDUAL - DQHD DQHD (Dual QHD) resolution offers an ultra wide (32:9) viewable area.
|
 | FREESYNC TECHNOLOGY AMD FreeSync™ technology is a dynamic refresh rate feature that helps resolve processor-monitor synchronization issues by eliminating effects that cause images to appear misaligned and blurry. |
 | CURVED DESIGN 1500R Inspired by the human field of vision, the screen's 1500R curvature ensures a realistic and comfortable viewing experience allowing you to truly immerse yourself in the game. |
 | Flicker Free + Blue Light Reducer technology As we all know, looking at a monitor for many hours a day, especially at a close distance, makes our eyes tired. This effect is much stronger with computer screens than with TV equipment. One of the factors responsible for this phenomenon is the blue light emitted by the screen. Devices such as the XUB3493WQSU-B1 integrate advanced functions such as the " Blue Light Reducer " easily accessible from the OSD menu. Using this function, brightness and color temperature can be adjusted to reduce visual fatigue. In addition, this device avoids flickering thanks to Flicker Free technology. |
 | Stereo Speakers The monitor is equipped with 2 2W speakers. High quality sound
|
 | Don't want to disturb those around you? Use the headphone output to connect your earphones |
 | VESA attachment VESA mount compatibility means you can easily mount the LFD to any VESA compatible mount.
|
 | x3 (v.3.2 (DC5V, 900mA) ) |
| This product features 1x HDMI port, 1x DISPLAY PORT, 1x USB-C |
 | This product features a response time of 0.8ms Fast response time is the key to having an ultra-smooth game. It reduces unappreciated circumstances such as Ghosting and Blurring, guaranteeing the player a truly sensational gaming experience.
|
 | This product is covered by a 3 YEAR DIRECT manufacturer's warranty . |
