The HS4208-4GT-60 from Dahua is an 8-port Hardened network switch with 4 PoE ports + 2 SFP + 2RJ-45 10/100/1000 Mbps with fast transmissions up to 1000 Mbps. Power supply IEEE802.3af; IEEE802.3at; Hi-PoE. IEEE802.3 communication standard; IEEE802.3u; IEEE802.3x; IEEE802.3ab. PoE Watchdog, transmissions up to 250 meters - MAC Table Size 8K, PoE power on/off, Supports Intelligent PoE.
DAHUA: LOSS LEADER×
 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>
CLEARANCE SALE ×
 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

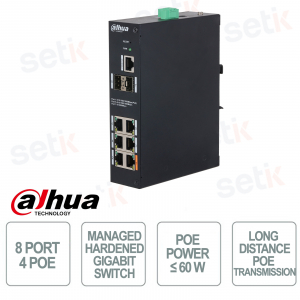

NETWORK SWITCH 8 HARDENED PORTS - 4 POE PORTS + 2 SFP PORTS 1000 Mbps + 2 RJ-45 PORTS 10/100/1000Mbps - DAHUA

Product details

- PoE Network Switch - Dahua
 - 4 PoE Ports + 2 SFP + 2RJ-45 10/100/1000 Mbps
 - PoE protocol: IEEE802.3af; IEEE802.3at
 - 60W PoE Power
 - Supported standards: IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab
 - 8K MAC address list capacity
 - Designed to resist high temperatures
 - Dimensions: 162mm × 123.6mm × 42mm

Data sheet
Basic  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Switching Capacity  | 16Gbps  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packet Forwarding Rate  | 11.90 Mpps  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Description of Function Slots  |  Port 1-4: 4 × RJ-45 10/100/1000 Mbps (PoE)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PoE Power  | Port 1 ≤ 60W, Port 2-4 ≤ 30W, total ≤ 60W  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Layers  | Layer 2  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Management Type  | Yes  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature  | –30 °C to +65 °C (-22 °F to +149 °F)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity  | 5%–95% (RH), non-condensing  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption  | Idling: ≤4W ; Full load: 65W  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply  | External power supply: 53 VDC, 1.22 A  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Statics Protection  | Air discharge: 8 kV; Contact discharge: 6 kV  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lighting Protection  | Common mode: 4 kV; Differential mode: 2 kV  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight  | 0.66 kg (1.45 lb)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions  | 162 mm × 123.5 mm × 42 mm (6.38" × 4.86" × 1.65") (L × W × H)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Hardware  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Included Power Adapter  | Yes  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PoE  | Yes  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ethernet Port  | 4  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ethernet Port Speed  | 10/100/1000Mbps  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ethernet Port Uplink Speed  | 10/100/1000Mbps  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Optical Port Uplink Speed  | 1Gbps  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Debugging  |
1 × Portable Console  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Reset Button  | 1  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperatures  | –40 °C to +70 °C (–40 °F to +158 °F)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity  | 5%–95% (RH), non-condensing  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Performance  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packet Buffer Size  | 4 Mbit  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Jumbo Frames  | 15K Bytes  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MAC Table Size  | 8K  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VLAN Number  | 32  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Communication Standards  | IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Features  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PoE Protocol  | IEEE802.3af; IEEE802.3at; Hi-PoE  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PoE Power Consumption Management  | Yes  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PoE Pin Assignment  | 1,2,4,5 (V+),3,6,7,8 (V-)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Long Distance PoE Transmission  | Yes  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Spanning Tree Protocol  | STP/RSTP  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VLAN Function  | Port-based VLAN  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IEEE 802.3x Flow Control  | Yes  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DHCP Function  | DHCP Client  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
QoS/ACL  | Qos  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Equipment Management  |  Web (http and https)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight  | 1.37 kg (3.02 lb)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions  | 311.5 mm × 251.5 mm × 128.5 mm (12.26" × 9.90" × 5.06") (L × W × H)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing Material  | Sheet metal  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation  | Desktop mount; DIN-Rail mount  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
