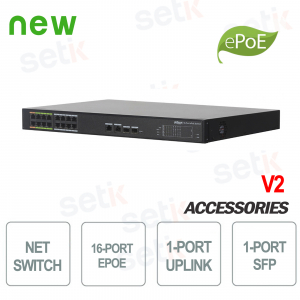

PoE Switch 16 Ports Industrial ePoE + 2 Combo SFP Uplink - V2 - Dahua

PoE Switch 16 Ports Industrial ePoE + 2 Combo SFP Uplink - V2 - Dahua
-57%

Dahua LR2218-16ET-240-V2 is a 16-Port PoE (14 PoE + 2 Orange Hi-PoE) + 2 SFP Uplink industrial network switch. Maximum total power 240W, fast transmissions at rates of 10 / 100 / 1000 Mbps even up to 250 meters away, ideal for extending your home or business network. Support PoE, PoE+, Hi-PoE. PFS4218-16ET-240-V2



Reference: LR2218-16ET-240-V2

Brand: Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

INDUSTRIAL NETWORK SWITCH 16 POE/EPOE PORTS + 2 SFP/UPLINK COMBO - V2 - DAHUA

Dahua Technology
Dahua Industrial Switch
16 PoE/ePoE Ports + 2 Combo Uplink / SFP Ports - 10 / 100 / 1000 Mbps - Up to 800 meters
Standard support IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE - Ring mode

Product details

Switch di rete industriale 18 porte poe epoe combo sfp uplink
  • Manageable industrial ePoE/PoE network switch (L2+) - Dahua
  • 16 PoE Ports: 8 PoE ports + 8 ePoE ports
  • - 2x Combo port: SFP (100/1000 Base-X) / RJ45 (10/100/1000 Base-T) - Uplink
  • - 2 x RJ45 10/100 Base-T + Hi-PoE / PoE (802.3af/at) / ePoE
  • - 6 x RJ45 10/100 Base-T + PoE (802.3af/at) / ePoE
  • - 8 x RJ45 10/100 Base-T + PoE (802.3af/at)
  • PoE transmissions over 800 meters over Ethernet cable at 10Mbps, or 300 meters at 100Mbps via ePoE technology (requires ePoE camera)
  • ePoE technology: long distance transmission between IP camera and network switch via Cat5e or coaxial cable (adapters required)
  • 2 Combo Ports: SFP (100/1000 Base-X) / RJ45 (10/100/1000 Base-T) - Uplink
  • Fast transmissions at rates of 10 / 100 / 1000 Mbps
  • ePoE transmissions even up to 800 meters away
  • Supported standards: IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE
  • Maximum total power 240W
  • PoE Management, Green PoE
  • Supported Protocols: PoE, PoE+, Hi-PoE
  • STP Protocol: Support ring mode
  • Supports half-duplex and full-duplex
  • Compatible with Fiber Modules: PFT3950 - PFT3960 - PFT3970
  • High lightning protection (4KV, common mode / 2KV (differential mode)
  • Version 2
  • Power supply included
  • Seamless video transmissions

Technical data sheet

PFS4218-16ET-240-V2
Hardware
Power adapter included

Yes

PoE

Yes

Ethernet Port 16
Ethernet Port Speed 10/100Mbps
Ethernet Port Uplink Speed 10/100/1000 Mbps
Optical Port Uplink Speed 1 Gbps
Description of Function Slots Port1–16: 16 × RJ–45 10/100 Mbps;
Port17–18: 2 × RJ–45 10/100/1000 Mbps;
Port17–18: 2 × SFP 1000Mbps (combo)
Debugging 1 × Console port
Reset Button

1

Power Supply

Built-in power supply: 100–240 VAC, 50/60 Hz, 6 A

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

5%–95% (RH)

Storage Temperature

–20 °C to +70 °C (–4 °F to +158 °F)

Storage Humidity

5%–95% (RH)

Power Consumption

Full load: 240W

Performance
Layer

Layer 2

Management Type

Yes

Switching Capacity 8.8 Gbps
Packet Forwarding Rate 5.36 Mpps
Packet Buffer Size 2.75 Mbit
MAC Table Size 4K
VLAN Number 31
Communication Standard IEEE802.3; IEEE802.3u; IEEE802.3X; IEEE 802.3ab; IEEE 802.3z
Feature
PoE Protocol

IEEE802.3af; IEEE802.3at; Hi-PoE

PoE Power

Port 1–2 ≤60W;
Port 3–16 ≤30W;
Total ≤240W

PoE Power Consumption Management PoE power consumption management;
PoE power on/off;
Turns off PoE if overload is detected;
Green PoE
PoE Pin Assignment 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
ePoE Yes
Spanning Tree Protocol STP/RSTP
VLAN Function Port-based VLAN
Link Aggregation Static link aggregation
LACP
IEEE 802.3x Flow Control

Yes

Multicast

IGMP Snooping v1/v2

DHCP Function

DHCP Client

Security

Multi-level user management and password; protection;
802.1X;
RADIUS;
Port isolation

QoS/ACL

SP/WRR queue scheduling

Equipment Management

SNMPv1/v2/v3;
System logs, and multi-level alarms;
LLDP

General
Statics Protection

Air discharge: 8 kV;
contact discharge: 6 kV

Lighting Protection

Common mode: 4 kV;
differential mode: 2kV

Net Weight 3.14 kg (6.92 lb)
Gross Weight 4.12 kg (9.08 lb)
Product Dimensions 440mm × 300mm × 44mm
(17.32"" × 11.81"" × 1.73"") (L × W × H)
Packaging Dimensions 565 mm × 530 mm × 415 mm (22.24" × 20.87" × 16.34") (L × W × H)
Casing Material Sheet metal
Installation Desktop mount; rack mount
Certifications

CE; FCC

Further details

LR2218-16ET-240-V2 dimensions.jpg

Download

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
