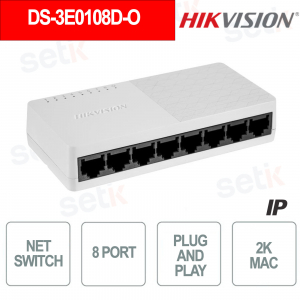

NETWORK SWITCH 8 PORTS 10 / 100 Mbps 2K MAC - HIKVISION

8 Ports - Fast 10/100 Mbps Transmission - Plug and Play
2K MAC - Max Power Consumption: 3W - Surge Protection: 2KV
Product details
- Network Switches - Hikvision
- 8 Ethernet ports
- Fast transmissions at rates of 10 / 100 Mbps
- Maximum power consumption: 3W
- Surge protection: 2KV
- Store-and-forward switching
- Support MAC address self-learning and aging support
- Simple and compact body structure
- Supports table and wall mounting
- Plug & play, and easy to use
- Dimensions: 124.00 × 22.00 × 52.00 mm
Technical data sheet
|
General |
|
| Shell | ABS |
| Weight | 0.059 kg (0.13 lb) |
| Dimensions | 124.00 mm × 22.00 mm × 52.00 mm (4.88'' × 0.87'' × 2.05'') |
| Operating temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage temperatures | –40 °C to 85 °C (–40 °F to 185 °F) |
| Operating humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power supply | 5V DC, 0.6A |
| Installation Mode | Desk Mounted |
| Max. Power Consumption | 3 W |
| Surge Protection | 2 KV |
| Network Parameters | |
| Ports | 8 × 10/100 Mbps RJ45 ports |
| MAC address table | 2K |
| Switching capacity | 1.6 Gbps |
| Packet forwarding rate | 1.19 Mpps |
| Internal Cache | 768Kbits |
| Approval | |
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020) |
| Safety | CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006) |
