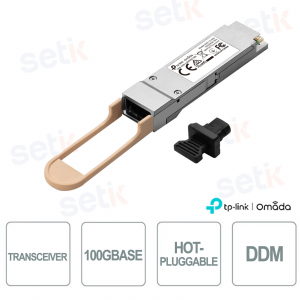

TP-Link Omada SM9110-SR4 – QSFP28 100GBASE-SR4 Multimode Transceiver

TP-Link Omada SM9110-SR4 – QSFP28 100GBASE-SR4 Multimode Transceiver

New

The TP-Link Omada SM9110-SR4 is a multimode 100GBASE-SR4 QSFP28 transceiver designed for high-speed, reliable connections in data centers and enterprise networks. It supports transmissions of up to 100 meters with OM4 fiber (70 m with OM3) and offers compatibility with 100G/40G QSFP28 modules. Thanks to Digital Diagnostic Monitoring (DDM) , it ensures advanced optical performance monitoring and real-time diagnostics. It is hot-pluggable , ensuring maximum flexibility and rapid deployment times. With low power consumption (1.8 W max) and a wide operating temperature range, it is the ideal choice for scalable and high-performance infrastructures. Omada

Technical Data Sheet

Reference: SM9110-SR4

Brand: OMADA

EAN: 8885020625493

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

A key aspect of OMADA is its ability to offer centralised management. This can be done through a dedicated hardware controller, a software controller, or the Omada SDN cloud service, which enables centralised management of networks. The solutions offered are scalable and flexible, making them suitable for both small corporate networks and large multi-site deployments.

OMADA includes wireless solutions with high-performance Wi-Fi access points, ensuring reliable, high-speed coverage. In addition, it offers managed switches and gateway routers with advanced traffic management, security and quality of service (QoS) features.

Security is another strong point of OMADA's solutions, which include advanced features such as firewalls, VPNs and access control to protect corporate networks. In addition, OMADA's cloud platform enables remote configuration and monitoring of networks, offering great flexibility in IT management.

For businesses, OMADA provides a solution that can reduce operating costs through centralised management that simplifies network maintenance. High-quality hardware components ensure stable and reliable performance, while intuitive interfaces and management tools make network administration easier even for non-technical staff.

OMADA's core products include indoor and outdoor access points with advanced technologies such as Wi-Fi 6, managed switches with Layer 2 and Layer 3 capabilities, and security and routing devices for network traffic management and threat protection. OMADA solutions are commonly used in corporate offices to manage internal networks, in schools and universities to provide Wi-Fi connections for students and staff, and in hotels to offer a stable and fast Internet connection to guests.

[short_description] =>

Tp-Link Omada

OMADA is a TP-Link brand of enterprise network management solutions. The OMADA system includes both hardware and software designed to centralise the management of wireless networks, switching and gateways. This approach is designed to improve the control and management of network infrastructures, particularly in enterprise environments.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

SM9110-SR4 | 100GBASE-SR4 QSFP28 TRANSMITTER


Made Omada

The TP-Link Omada SM9110-SR4 is a multimode 100GBASE-SR4 QSFP28 transceiver designed to ensure ultra-high-speed and reliable connections in enterprise networks and data centers. It supports dual-rate speeds of up to 103.125 Gbps and 41.2 Gbps, with transmission distances of up to 100 meters over OM4 fiber and compatibility with 100G/40G QSFP28 modules. Thanks to Digital Diagnostic Monitoring (DDM), it offers real-time diagnostics, while the hot-pluggable function ensures maximum installation flexibility. With low power consumption, a wide temperature range and compliance with international standards, it represents an efficient and scalable solution.

Main specifications:

- MTP/MPO-12 connector, QSFP28 compatible

- Speeds up to 100G and 40G dual-rate

- Transmission distance up to 100 m (OM4)

- Digital Diagnostic Monitoring (DDM) support

- Hot-pluggable, low power consumption (1.8 W)

Further details

QSFP28 Transceiver:
Based on the QSFP28 standard, it guarantees compatibility with 100G/40G devices, ensuring high performance, stability and maximum integration into professional network infrastructures.
DDM (Digital Diagnostic Monitoring) :
It includes digital diagnostic monitoring functions that allow you to monitor critical parameters such as optical power, temperature and voltage in real time, improving management and preventing malfunctions.
Hot-Pluggable:
Designed for hot insertion and removal without interrupting service, it offers deployment flexibility and rapid replacement or upgrade times in enterprise networks and data centers.

Technical data sheet

Model SM9110-SR4
TRANSCRIBER
Form Factor QSFP28
Standards & Protocols IEEE 802.3bm, IEEE 802.3ba, QSFP28 MSA,
SFF-8665, SFF-8636, SFF-8436
CPRI, eCPRI
TCP/IP
Wave Length 850 nm
Diet 3.3V
Max. Power Consumption

Max 1.8 W at 100 Gbps
Max 1.54 W at 40 Gbps

Fiber Type 50/125um MMF (Multimode)
Max. cable length 70m (OM3), 100m (OM4) @103.125Gbps (4x 25.78Gbps)
100m (OM3), 150m (OM4) @41.2 Gbps (4x 10.3 Gbps)
Data transmission speed Dual Rate 103.125 Gbps and 41.2 Gbps
Connector MTP/MPO-12
Transmission power 8.4 dBm to 2.4 dBm @103.125 Gbps
7.6 dBm to 2.4 dBm @41.2 Gbps
Transmitter Type VCSEL 850 nm
Receiver Type PIN
Receiver Sensitivity <-10.3 dbm="" 103="" 125="" gbps="" br=""> <-9.5 dbm="" 41="" 2="" gbps="" td="">
Receiver Overload >2.4 dBm @103.125 Gbps
>2.4 dBm @41.2 Gbps
Extinction Ratio >2 dB @103.125 Gbps
>3 dB @41.2 Gbps
Regulatory Compliance CE, FCC, RoHS
HARDWARE FEATURES
DDM Yes
QSFP28 MSA Yes
Hot Swappable Yes
Dimensions (L x W x H) 4.88*0.72*0.46 in (124*18.35*11.7 mm)
PACKAGE CONTENT
Package Content SM9110-SR4
Installation Guide
ENVIRONMENT
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Operating Humidity 0 to 85% RH Non-condensing
Storage Humidity 0 to 85% RH Non-condensing
