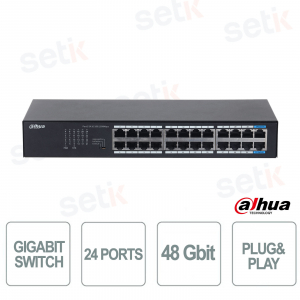

Dahua S3024-24GT 24-Port Gigabit Switch – Secure and Fast Network Performance

Dahua S3024-24GT 24-Port Gigabit Switch – Secure and Fast Network Performance

-57% New

S3024-24GT - The Gigabit switch with 24 RJ-45 10/100/1000 Mbps ports is the ideal solution for fast, secure, and lag-free networks. Thanks to its robust, fanless metal design, it offers quiet operation and excellent heat dissipation, perfect for home and professional environments. It supports advanced features such as port isolation and link aggregation , which improve security and traffic balancing. With a switching capacity of 48 Gbps and a forwarding rate of 35,712 Mpps, it guarantees reliable performance even under heavy load. Installation is simple and versatile, with desktop, rack, and wall mount support, making it suitable for homes, offices, and businesses. Dahua

Technical Data Sheet

Reference: S3024-24GT

Brand: Dahua

EAN: 6939554932663

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

S3024-24GT | 24 PORT UNMANAGED GIGABIT SWITCH


Dahua

The Dahua S3024-24GT Gigabit switch with 24 10/100/1000 Mbps RJ-45 ports ensures fast and stable network connections, perfect for homes, offices, and businesses. Its fanless metal design ensures quiet operation and long life, while features such as port isolation and link aggregation improve security and traffic management. With a switching capacity of 48 Gbps and a forwarding rate of 35,712 Mpps, it offers high performance even under heavy load, with easy installation on a desktop, rack, or wall.

Main specifications:

- 24 Gigabit RJ-45 10/100/1000 Mbps ports

- Robust fanless metal design

- Switching capacity: 48 Gbps

- Port isolation and link aggregation functions

- Desktop, wall or rack installation

Further details

Number of doors:
It has 24 RJ-45 Gigabit 10/100/1000 Mbps ports , which allow you to connect numerous devices simultaneously while ensuring stability and transmission speed.
Plug and Play:
It doesn't require any complex configurations, just plug it in and start using it right away, making installation simple even for less experienced users.
Full Line-rate Forwarding :
It ensures error-free packet forwarding and speed loss even under full load, ensuring consistent network performance.
Port Isolation :
It prevents communication between different ports without requiring VLANs, protecting data from possible leaks and isolating broadcast storms.
Performance :
With 48Gbps switching capacity and 35.712Mpps forwarding rate, it supports heavy traffic and professional applications without delays or interruptions.

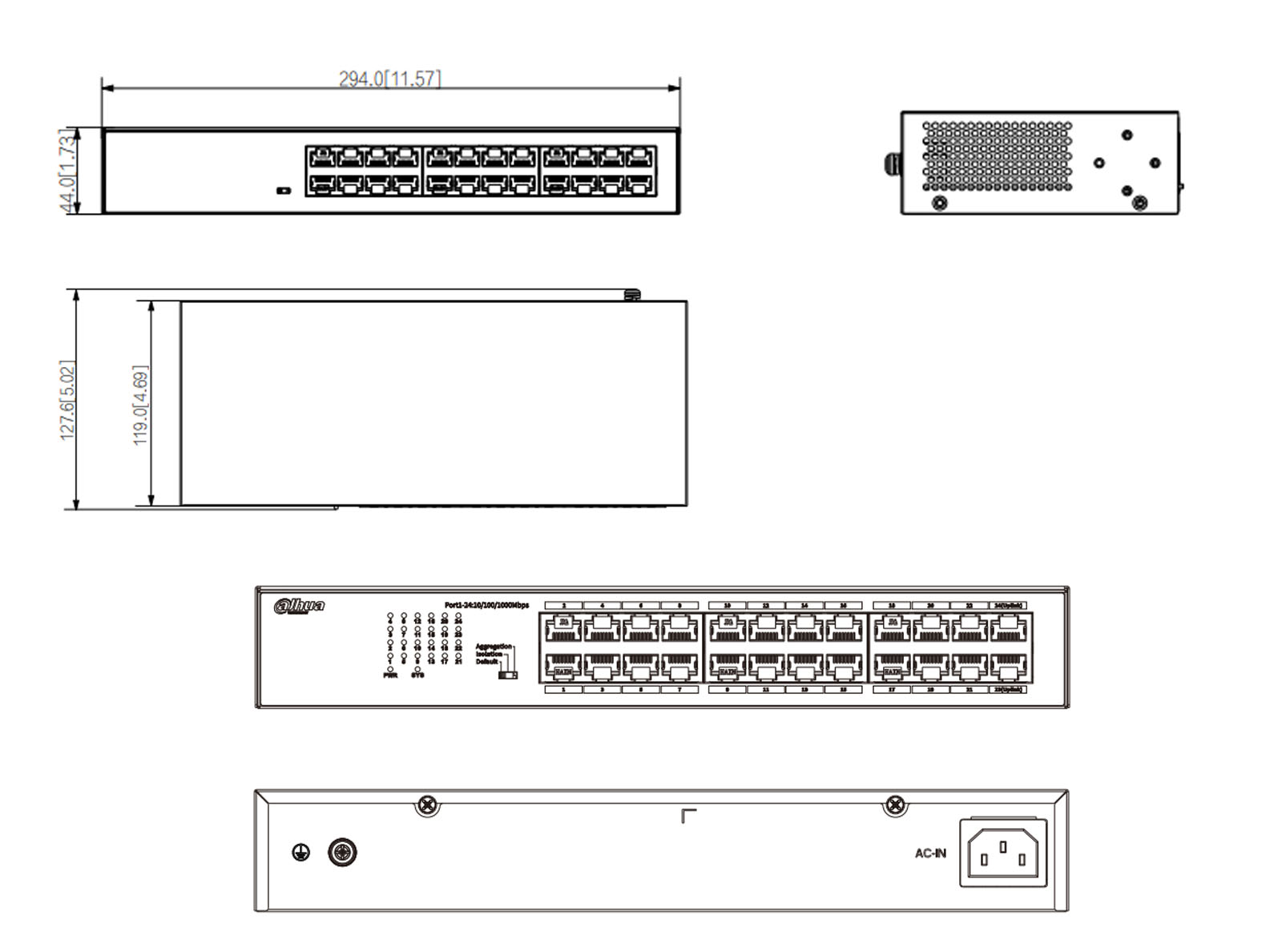

S3024-24GT dimensions

Technical data sheet

Model S3024-24GT
Basic
Layer

Layer 2

Switching Capacity

48 Gbps

Packet Forwarding Rate

35.712 Mpps

Description of Function Slots

Port 1-22: 22 × RJ-45 10/100/1000 Mbps;
Port 23-24: 2 × RJ-45 10/100/1000 Mbps (uplink)

Operating Humidity

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

10%–90% (RH), non-condensing

Operating Temperature

0 °C to +45 °C (+32 °F to +113 °F)

Storage Humidity

5%–95% (RH), non-condensing

Power Supply

Built in power supply: 100–240 VAC, 50/60 Hz, 0.4 A

Power Consumption

Idling: 2.7 W;
Full load: 12.3 W

Statics Protection

Air discharge: 8kV
Contact discharge: 6kV

Lighting Protection

Common mode: 2kV
Differential mode: 0.5 kV

Net Weight

0.83 kg (1.82 lb)

Gross Weight

1.34 kg (2.95 lb)

Dimensions

294 mm × 119 mm × 44 mm (11.57" × 4.68" × 1.73") (L × W × H)

Packaging Dimensions

353 mm × 215 mm × 75 mm (13.9" × 8.46" × 2.95") (L × W × H)

Casing Material

Sheet Metal

Installation

Desktop mount; wall mount; rack mount

Certifications

THERE IS

Hardware

DIP Switch

Default: Default setting
Post isolation: Prevents traffic from being sent between ports 1-14, but allows ports 1-14 to send its traffic to the uplink ports 15-16. These uplink ports can also send their traffic to 1-14.
Port aggregation: Aggregates uplink ports.

Performance

Packet Buffer Size

8.4 Mbit

Jumbo Frame

12K Bytes

MAC Table Size

16K

Communication Standard

IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3ad

Feature

Link Aggregation

Static link aggregation

Port Feature IEEE 802.3x traffic control
IEEE 802.3x Flow Control Yes
General
Packing List

1 × User Manual;
1 × Legal and Regulatory Information;
1 × Power Cord;
1 × Rack-mounting Kit;

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
