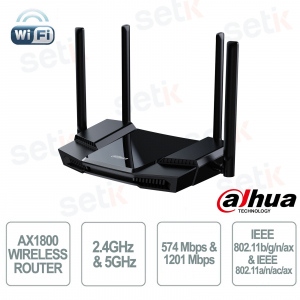

Dahua AX18 AX1800 Wi-Fi 6 Router: 1.8 Gbps Speed and WPA3 Security

Dahua AX18 AX1800 Wi-Fi 6 Router: 1.8 Gbps Speed and WPA3 Security

-57% New

AX18 - is a wireless router offering advanced performance thanks to Wi-Fi 6 AX1800 technology, ensuring ultra-fast connections up to 1.8 Gbps and stable coverage in environments with many connected devices. Equipped with WPA3 encryption with 192-bit CNSA algorithm, it ensures protection against cyber attacks and maximum data security. The Target Wake Time function reduces energy consumption by up to 30%, extending the battery life of connected devices. The WiLynk app allows simple management, parental controls, guest networking and rapid updates. Thanks to technologies such as MU-MIMO , OFDMA and beamforming , the signal is more stable and latency is reduced, perfect for 4K streaming, gaming and smart working. Ideal for homes, offices and commercial environments. Dahua

Technical Data Sheet

Reference: AX18

Brand: Dahua

EAN: 6923172562463

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

AX18 | AX1800 WIRELESS ROUTER


Dahua

The Dahua AX18 wireless router offers high performance with AX1800 Wi-Fi 6 technology, ensuring stable and fast connections up to 1.8 Gbps for streaming, gaming, and remote working. Security is enhanced by WPA3 encryption that protects against intrusions and cyber attacks, while the TWT (Target Wake Time) function reduces power consumption by up to 30%. Management via the WiLynk app makes it easy to set up the network, activate parental controls, and create a guest network. With technologies such as MU-MIMO, OFDMA, and beamforming, the signal is more efficient and low latency, perfect for environments with many connected devices.

Main specifications:

- Wi-Fi speed up to 1.8 Gbps (574 Mbps @2.4 GHz + 1201 Mbps @5 GHz)

- Advanced security with WPA3 encryption

- Reduced consumption with TWT technology

- Smart management via WiLynk app

- Stable coverage with MU-MIMO, OFDMA and beamforming

Further details

Connection ports:
Equipped with 1 Gigabit WAN port and 3 Gigabit LAN ports , the DH-AX18 offers ultra-fast wired connections of up to 1000 Mbps, perfect for devices that require stability and high bandwidth such as smart TVs, gaming consoles and PCs.
WPA3 Encryption — Maximum network security:
It implements WPA3 encryption with 192-bit CNSA algorithm , ensuring effective defense against brute force attacks and computer intrusions, improving the privacy and security of all wireless connections .
Intelligent energy efficiency:
Thanks to Target Wake Time (TWT) technology , the router optimizes consumption by reducing the energy used by connected devices by up to 30%, prolonging their battery life and making the network more sustainable .
AX1800 Dual-band Wi-Fi :
It delivers speeds of up to 1.8 Gbps combined (574 Mbps at 2.4 GHz and 1201 Mbps at 5 GHz), with greater coverage and less interference, ensuring smooth experiences for 4K streaming, video conferencing and online gaming.
Intelligent Management:
With the WiLynk app , you can easily set up your network, monitor connected devices, set parental controls, create guest networks, and update firmware with just a few taps .
High Speed and Low Latency :
MU-MIMO, OFDMA and BSS Coloring technologies improve network traffic management, reducing latency and ensuring constant speeds even with many devices connected simultaneously.

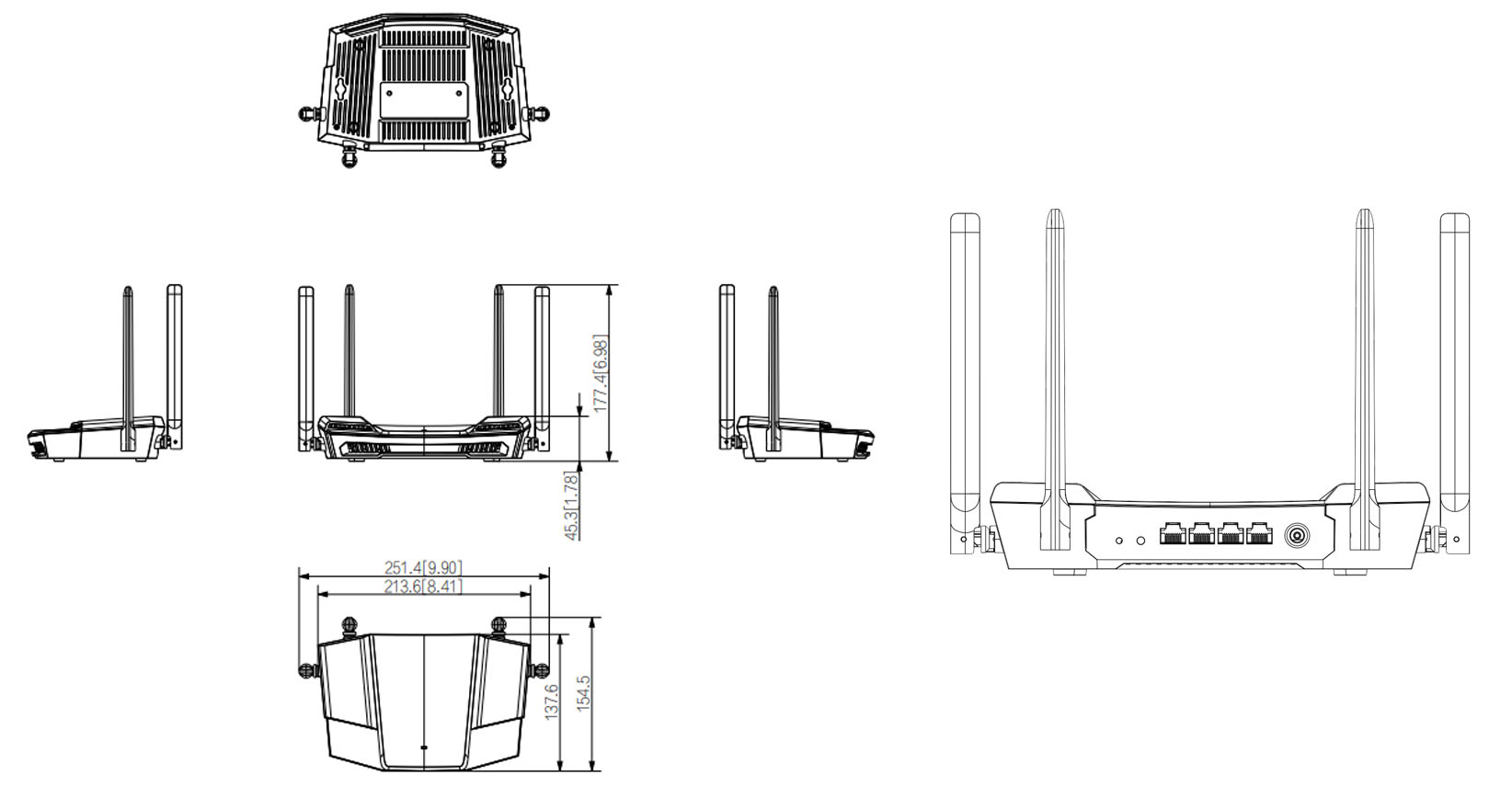

AX18 dimensions

Technical data sheet

Model AX18
Hardware
Function Slots

1 × 10/100/1000Mbps WAN
3 × 10/100/1000Mbps LAN

External Port

No

Button

1 × eSync Button
1 × Reset Button

Power Supply

12 VDC, 1.5 A

Memory

DDR 256 MB

Indicator Light

1 × SYS

Performance

Wireless Standard

2.4 GHz: IEEE 802.11b/g/n/ax
5 GHz: IEEE 802.11a/n/ac/ax

Recommended Video Channels

50-ch 4-MP IPC

Wireless Transmission Rate

2.4 GHz: 574 Mbps
5 GHz: 1201 Mbps

Operating Frequency

2.4 GHz: 2.400 GHz–2.484 GHz
5 GHz: 5.150 GHz–5.850 GHz

Channel Width

2.4 GHz: 20/40 MHz
5 GHz: 20/40/80 MHz

Max. Output Power

CE EIRP:
≤20 dBm@2400-2483.5 MHz
≤23 dBm@5150-5250 MHz
≤23 dBm@5250-5350 MHz
≤27 dBm@5470-5725 MHz
≤14 dBm@5725-5850 MHz

Transmission Distance

15 m (49.21 ft)

Optimal Transmission Distance

7 m (22.97 ft)

Connected Wireless Terminals

2.4GHz:64
5 GHz: 64

Function

Equipment Management

Web; App

Network Protocol HTTP;HTTPS;TCP/IP;IPv4;UDP;NTP;DHCP;DNS;IPv6;ICMP;ARP;TCP;WMM;802.11b;802.11g;802.11n;MAC Filter;802.11ax;802.11ac;802.11a
Network Access PPPoE; Dynamic IP; Static IP
Operating Mode Wireless Router Mode
Wireless Relay Mode (Client+AP)
Encryption Mode WPA; WPA2; WPA3; WPA/WPA2; WPA2/WPA3
Security Mechanism MAC filtering; HTTPS
OFDMA Yes
MU-MIMO Yes
DHCP Yes
NAT Port mapping
NAT No
QoS No
DDNS No
MESH NO
Firmware Update Web update; App update
Software Device Management: Quick Setup Wizard; System Management; System Log; Factory Reset; Backup Config; Config Restore; DMZ; Port Mapping; Diagnosis&Restart; Smart Control of LEDs
RF Management: Wireless mode settings; Wireless bandwidth settings; Wireless channel settings; Transmission power settings; SSID Broadcast
Network Type: Guest Wi-Fi; Wi-Fi host; Dual band 2.4/5G; Wireless timing
End Device Management: WLAN MAC address filtering; Parental Controls; End Device Name Config
General
Power Consumption

Full load: 14 W
Idling: 4.1 W

Operating Temperature

0 °C to +40 °C (+32 °F to +104 °F)

Storage Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Operating Humidity

10%–90% (RH), non-condensing

Net Weight

0.37 kg (0.82 lb)

Gross Weight

0.82 kg (1.81 lb)

Product Dimensions

237mm × 143mm × 184mm (9.33" × 5.63" × 7.24") (L × W × H)

Packaging Dimensions

310 mm × 276 mm × 74 mm (12.20" × 10.87" × 2.91") (L × W × H)

Statics Protection

Air discharge: 8 kV
Contact discharge: 4 kV

Lightning Protection

Common mode: 2 kV
Differential mode: 1 kV

Installation

Desktop mount; wall mount

Certifications

THERE IS

Packing List

1 × Device
1 × Power Adapter
1 × Quick Start Guide
1 × Legal and Regulatory Information
1 × Network Cable

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
