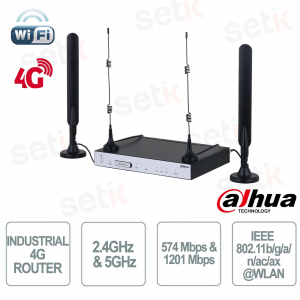

Dahua WM4720-OW Industrial 4G Router: Fast Wi-Fi 6 and Secure Network

Dahua WM4720-OW Industrial 4G Router: Fast Wi-Fi 6 and Secure Network

-57% New

The WM4720-OW is an industrial router that transforms high-speed 4G signals into stable wired and Wi-Fi connections, ideal for complex and professional environments. It supports dual-band Wi-Fi 6 up to 1800 Mbps , ensuring smooth browsing, streaming, and fast data transfers even with many connected devices. Its advanced features include L2TP/IPsec VPN for secure business networks, Multi-WAN load balancing for consistently reliable connections, and IPv6 compatibility. Built with industrial-strength protections— 15kV against electrostatic discharge and 4kV against lightning —it operates seamlessly in extreme conditions from –40°C to +75°C. Simplified web management allows for instant configuration, monitoring, and rapid updates. Dahua

Technical Data Sheet

Reference: WM4720-OW

Brand: Dahua

EAN: 6923172548443

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

WM4720-OW | INDUSTRIAL 4G ROUTER


Dahua

The Dahua WM4720-OW industrial router combines high-speed 4G connectivity with dual-band Wi-Fi 6 up to 1800 Mbps, ensuring stable and secure performance even in challenging environments. Equipped with industrial-strength 15kV ESD and 4kV lightning protection, it offers reliability in extreme conditions from –40°C to +75°C. It supports L2TP/IPsec VPN for secure corporate networks and Multi-WAN load balancing for connection continuity. Easily managed via a web interface, it ensures quick setup and compatibility with IPv6.

Main specifications:

- High-speed 4G connectivity for stable industrial networks

- Dual-band Wi-Fi 6 up to 1800 Mbps for smooth and fast connections

- Advanced protection against discharges and lightning (15kV ESD, 4kV lightning)

- L2TP/IPsec VPN for security and encrypted business networks

- Multi-WAN Load Balancing for always reliable connections

- Resistant to extreme temperatures from –40 °C to +75 °C

Further details

Connection ports:
Equipped with 3 RJ-45 Gigabit Ethernet ports with LAN/WAN support, as well as a 4G SIM slot, it offers wired connections up to 1000 Mbps, allowing you to easily integrate industrial devices and advanced network systems.
4G — Reliable and universal mobile connectivity:
It supports multiple 4G standards compatible with all major mobile networks, transforming cellular network into stable wired and Wi-Fi connections, ideal for remote areas or areas with poor wired coverage .
1800 Mbps Wireless Speed — Ultra-fast Wi-Fi 6 performance:
Thanks to dual-band Wi-Fi 6 (IEEE 802.11ax) technology, it reaches up to 1800 Mbps (574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz), ensuring smooth streaming, fast transfers and stable connections even with many devices.
Multi-WAN Load Balancing :
It integrates advanced WAN load balancing modes, optimizing bandwidth and automatically choosing the best path based on IP, available bandwidth and network policies, for an always-on connection.
VPN Encryption:
It supports L2TP/IPsec protocols and various encryption algorithms, allowing you to create secure VPNs and protect sensitive data during business communications over the Internet .
Wide Voltage :
Designed to support power supplies from 9V to 36V DC , it ensures flexibility and compatibility with various industrial power sources, ensuring stability even in complex environments.

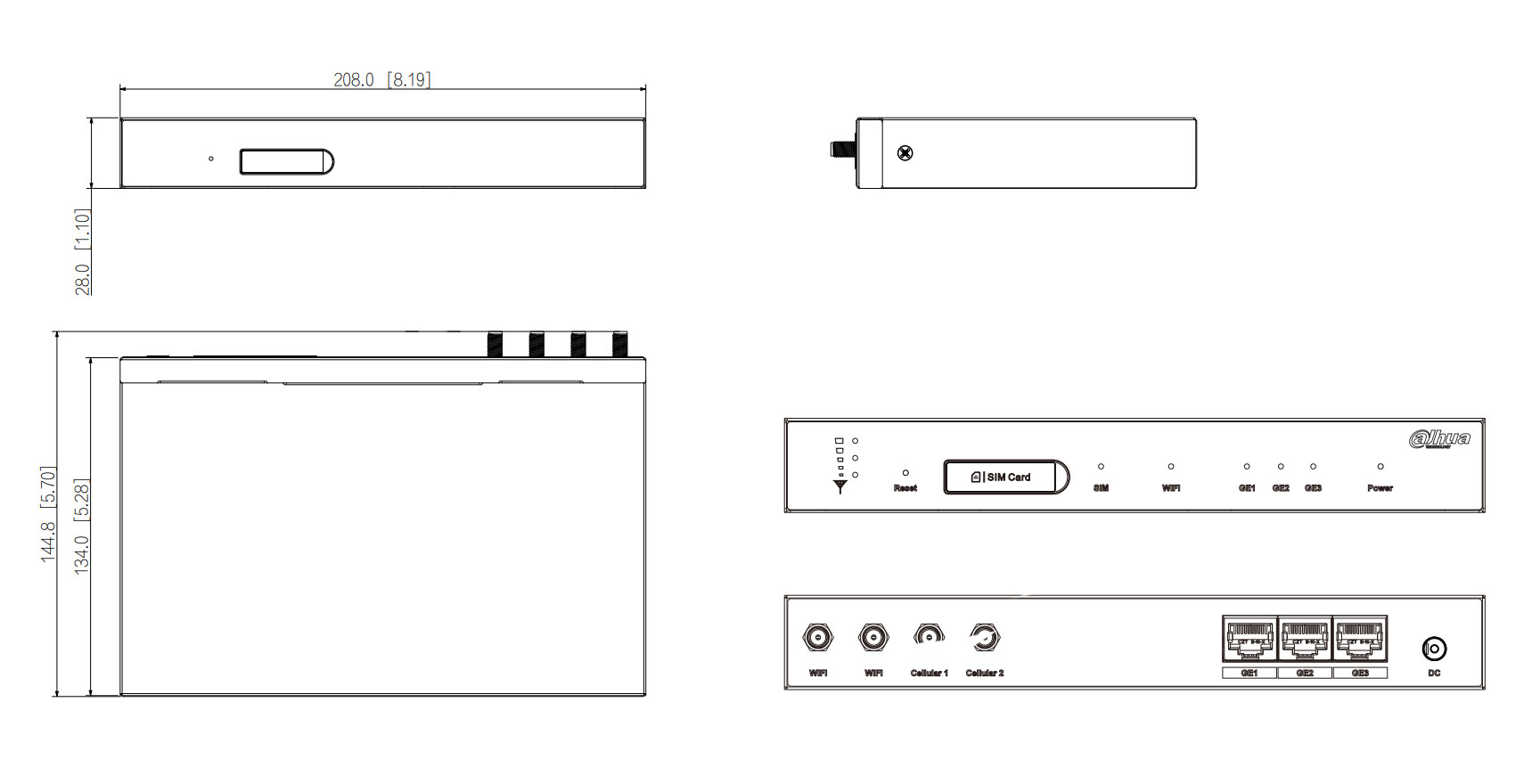

WM4720-OW dimensions

Technical data sheet

Model WM4720-OW
Function
Management and Log

Syslog; SSH; NTP

Webpage Configuration Management

Web configuration

Firmware Update

Web update; ConfigTool

Network Protocol

UDP; HTTPS; IPv6; IPv4; TCP/IP; HTTP; NTP; SSL; DHCP

Wireless Certification

CE; FCC

Security Mechanism

IP/MAC address filtering; WAP/WPA2-PSK/WPA3-PSK;

Routing

Static routing

DHCP Server

Enable and disable DHCP Server
Configure address pool of DHCP Server
Configure lease period
Assign fixed IP addresses to clients

NAT

Port-based NAT configuration

VPN

L2TP; L2TP/IPsec VPN

APN

APN private network configuration

Hardware
Wireless Standard

3GPP Release 9@WAN
IEEE 802.11b/g/a/n/ac/ax@WLAN

Power Supply

9–36 VDC

Power Adapter Included

Yes

Included Antenna

Yes

Ethernet Ports

3

Ethernet Port Speed

10/100/1000 Mbps;

Reset Button

Yes

Power Consumption

Full load: 15 W
Idling: 5 W

WAN Port

1 (0–3);

WAN Port Connection Mode

Static IP address; DHCP; PPPoE; 4G/3G

External Port

3 × RJ–45 10/100/1000 Mbps (LAN/WAN switching)
1 × SIM card slot (nano)
1 × DC-JACK power supply port
1 × RESET button

Indicator Light

1 × power indicator
3 × cellular signal indicators
1 × SIM card indicator
1 × Wi–Fi indicator
3 × Ethernet port indicators

Antenna

Wi–Fi: 2 × standard SMA antenna ports (characteristic impedance 50 Ω)
Cellular: 2 × standard SMA antenna ports (characteristic impedance 50 Ω)

Performance

Terminal Communication Protocol

IEEE 802.3/802.3u/802.3ab@LAN
IEEE 802.11b/g/a/n/ac/ax@WLAN

Operating Frequency

Wi-Fi: 5.725–5.850GHz,2.400GHz–2.483GHz
Cellular:
Southeast Asia version(SEA): B1/B3/B5/B8/ B34/B38/B39/ B40/B41;
Oceania and North American version(US): B1/B2/B3/B4/B5/B7/B8/B12/B17/B28/B38/B40/B66;
European version(EU): B1/B3/B5/B7/B8/B20/B28/B38/B40/B41

Antenna

External omnidirectional antenna
External Wi–Fi 2.4GHz/5GHz dual-band omnidirectional antenna

Antenna Gain

Wi-Fi-2.4 GHz: ≤1.5 dBi
Wi–Fi-5.8 GHz: ≤3 dBi
Cellular: ≤4.5 dBi

Air Interface Rate

2.4 GHz Wi-Fi: 574 Mbps
5 GHz Wi-Fi: 1201 Mbps
LTE FDD: 150Mbps (DL)/50Mbps (UL)
LTE TDD: 130Mbps (DL)/30.5Mbps (UL)
WCDMA: 384Kbps (DL)/384Kbps (UL)
DC-HSPA+: 42Mbps (DL)/5.76Mbps (UL)
EDGE: 296Kbps (DL)/236.8Kbps (UL)
GPRS: 107Kbps (DL)/85.6Kbps (UL)

Protection

IP30

Connected Wireless Terminals

2.4 GHz Wi-Fi: 32
5 GHz Wi-Fi: 64

Max. Output Power

CE EIRP:
≤20 dBm@2400-2483.5 MHz
≤23 dBm@5150-5250 MHz
≤23 dBm@5250-5350 MHz
≤27 dBm@5470-5725 MHz
≤14 dBm@5725-5850 MHz
FCC output power:
≤27 dBm@2400-2483.5 MHz
≤24 dBm@5150-5250 MHz
≤24 dBm@5250-5350 MHz
≤24 dBm@5470-5725 MHz
≤30 dBm@5725-5850 MHz

General
Operating Temperature

–40 °C to +75 °C (–40 °F to +167 °F)

Storage Temperature

–40 °C to +85 °C (–40 °F to +185 °F)

Operating Humidity

< 95%

Net Weight

0.77 kg (1.70 lb)

Gross Weight

1.5 kg (3.31 lb)

Product Dimensions

207 mm × 135 mm × 28 mm (8.15" × 5.31" × 1.10") (L × W × H)

Packaging Dimensions

402mm × 251mm × 84mm(15.83" × 9.88" × 3.31") (L × W × H)

RAM

256 MB

Statics Protection

Air discharge: 15 kV
Contact discharge: 8 kV

Lighting Protection

Common mode: 4 kV
Differential mode: 2 kV

Installation

Desktop/rack mount
