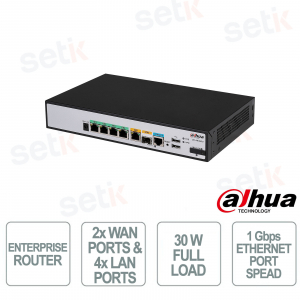

Dahua AR306-E Enterprise Router: High Speed, Security, and Advanced VPN

Dahua AR306-E Enterprise Router: High Speed, Security, and Advanced VPN

-57% New

AR306-E - is an enterprise router designed to ensure high-speed connections and advanced security , ideal for companies, public offices, schools and hospitals. With advanced software architecture and high-performance multi-core CPU , it manages multiple concurrent processes and offers high bandwidth. It supports Multi-WAN Load Balancing for always stable connections, advanced security functions with URL filtering and protection against DDoS attacks, and IPSec/L2TP VPN for secure private networks. Equipped with Gigabit WAN and LAN ports , SFP for optical connections and USB for debugging and rapid management, it ensures reliability and flexibility in complex professional environments. Dahua

Technical Data Sheet

Reference: AR306-E

Brand: Dahua

EAN: 6923172531995

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

AR306-E | ENTERPRISE ROUTER


Dahua

The Dahua AR306-E enterprise router provides high-speed, stable, and secure Internet connections, making it ideal for small and medium-sized businesses, schools, hospitals, and government offices. Equipped with a high-performance multi-core CPU, it handles complex processes and provides ample bandwidth for modern networks. It integrates Multi-WAN Load Balancing for always-on connections, advanced security systems with URL filtering and DDoS protection, and IPSec/L2TP VPN for secure business communications.

Main specifications:

- 2 WAN and 4 Gigabit LAN ports for fast and flexible connections

- High-performance multi-core CPU for heavy traffic and stability

- Multi-WAN Load Balancing for network continuity and automatic backup

- Advanced security with URL filtering, firewall and DDoS protection

- IPSec/L2TP VPN support for private networks and secure connections

- Centralized management via iLinksView platform and advanced CLI

Further details

Connection ports:
Equipped with 2 Gigabit WAN ports , 4 Gigabit LAN ports , an SFP port for optical connections and USB 2.0 and Console interfaces, it allows for a versatile configuration suitable for complex networks that require scalability and high speed.
Multi-WAN Load Balancing :
It supports multiple WAN load balancing modes based on destination IP, bandwidth, and custom routing. This feature ensures stable connections even in the event of network failures or overloads.
Network Security Control:
It includes a comprehensive network security control system with URL filtering for HTTP/HTTPS, website blocklists and allowlists, protection against DDoS attacks, IP traffic restrictions and advanced NAT to defend your infrastructure from external threats .
VPN Tunnel :
It supports multiple VPN protocols, including IPSec and L2TP , with multiple encryption algorithms. This feature allows you to create secure virtual private networks to securely connect corporate offices and remote users.
AR306-E dimensions

Technical data sheet

Model AR306-E
Hardware
Ethernet Port Speed

1 Gbps

Description of Function Slots

GE 0: 1 × RJ-45 10/100/1000 Mbps (WAN)
GE 1-3: 4 × RJ-45 10/100/1000 Mbps (LAN, can be configured as WAN ports)
SFP 5: 1 × SFP 10/100/1000 Mbps (WAN)

Debugging

1 × USB 2.0
1 × Console

Power Supply

Built-in power supply: 100–240 VAC, 50/60 Hz

Operating Temperature

0 °C to +45 °C (+32 °F to +113 °F)

Operating Humidity

5%–95% (RH)

Power Consumption

Full load: 30 W

Performance

Management Type

Yes

MTBF

50,000 hours

VLAN Number

64

Dynamic ARP

4000

Reliability
Reliability

LDP, Static LSP; L3VPN: Multiprotocol MPLS VPN (Option 1/2/3), nested MPLS VPN, hierarchy of PE (HoPE), CE dual-homing, MCE, multi-role host and more;
L2VPN: Martini, Kompella, CCC, and SVC;
MPLS TE, RSVP TE;
VRRP, VRRPv3;
Multi-link for load balancing and backup;
Association between NQA and routing/VRRP/interface backup, and it realizes end-to-end link detection and backup

Security
Security

PORTAL, 802.1x;
Local authentication, RBAC, RADIUS, TACACS+;
ASPF, ALC, FILTER, domain-based firewall, connections restriction, IPS;
IKE/IPSec VPN, ADVPN, GDVPN, L2TP VPN, GRE VPN;
NAT/NAPT, PKI, RSA, URPF;
DDoS attack prevention, ARP anti-attack, URL filtering;
Endpoint Admission Defense (EAD);
Deep Packet Inspection (DPI), which limits speed and filters data traffic

Management & Maintenance
Equipment Management

SNMP v1/v2c/v3, TR069, SYSLOG, RMON;
Telnet, SSHv1.5/2.0, FTP;
Embedded Automation Architecture (EAA)
CLI management, file system management, Dual Image;
NQA tests based on DHCP, FTP, HTTP, ICMP, UDP public, UDP private, TCP public, TCP private, and SNMP

General
Product Dimensions

266 mm × 161 mm × 43.6 mm (0.47" × 6.34" × 1.72") (L × W × H)

Packaging Dimensions

480 mm × 370 mm × 290 mm (18.90" × 14.57" × 11.42") (L × W × H)

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
