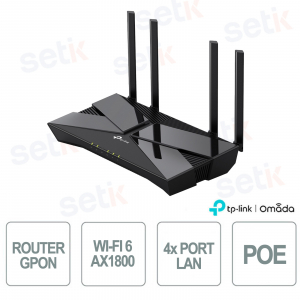

XX230v AX1800 Wi-Fi Router 6 GPON, ONT Fiber FTTH, Dual Band 1.8Gbps, VoIP FXS, Gigabit Ports, EasyMesh, ISP Cloud Management
XX230v AX1800 GPON Wi-Fi 6 Router is an advanced solution for high-speed FTTH fiber connections, designed to offer stable network and high performance in homes and small offices. Thanks to dual-band Wi-Fi 6 technology up to 1.8 Gbps (1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz) it guarantees greater capacity, lower latency and efficient management of numerous connected devices. GPON support compliant with the ITU-T G.984 standard with speeds up to 2.488 Gbps download and 1.244 Gbps upload allows ultra-fast Internet access via fiber optics. It integrates Gigabit Ethernet ports, FXS port for VoIP telephony and USB 2.0 port , offering wired connectivity and advanced multimedia services. The 4 high-performance antennas with Beamforming, OFDMA and MU-MIMO improve coverage and stability of the Wi-Fi signal. It also supports EasyMesh and remote management via Aginet App, OMCI and TR-069/TR-369 protocols , making it ideal for FTTH networks managed by operators or ISPs.
Technical data sheet not available
XX230V | XPON WIFI 6 DUAL BAND ROUTER AX1800

The TP-Link XX230v AX1800 GPON Wi-Fi 6 Router is designed to provide high-speed FTTH fiber connectivity and reliable performance for homes and small offices. Thanks to dual-band Wi-Fi 6 technology up to 1.8 Gbps (1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz) it guarantees greater network capacity and lower latency even with many connected devices. GPON support compliant with the ITU-T G.984 standard with speeds up to 2.488 Gbps download and 1.244 Gbps upload enables ultra-fast Internet access via fiber optics. It integrates Gigabit Ethernet ports, an FXS port for VoIP telephony and a USB 2.0 port for wired connections and multimedia services. The 4 external antennas with Beamforming, OFDMA and MU-MIMO improve coverage and wireless signal stability. It also supports EasyMesh and remote management via Aginet App, OMCI and TR-069/TR-369 protocols for easy setup and centralized network management.
Main specifications:
- Wi-Fi 6 AX1800 Dual Band up to 1.8 Gbps (1201 Mbps + 574 Mbps)
- GPON support with speeds up to 2.488 Gbps download and 1.244 Gbps upload
- 4 external antennas with Beamforming, OFDMA and MU-MIMO
- Gigabit Ethernet ports (1 WAN/LAN + 3 LAN) and USB 2.0 port
- FXS port for VoIP telephony with SIP account support
- EasyMesh compatibility for extended Wi-Fi coverage and seamless roaming
- Remote management via Aginet App, OMCI, TR-069 and ISP cloud platforms
Further details
Technical data sheet
| Model | XX230V |
| HARDWARE FEATURES | |
| Interface | 1× SC/APC GPON Port 1× 10/100/1000 Mbps WAN/LAN Port 3× 10/100/1000 Mbps LAN Ports 1× FXS Port 1× USB 2.0 Port |
| Key | WPS/Wi-Fi Button RESET Button Power On/Off Button |
| External power supply | 12V/1.5A |
| Data transfer speed | Downstream Speeds: 2,488 Gbps (GPON) Upstream Speeds: 1.244 Gbps (GPON)§ |
| Antenna | 4 External Antennas |
| WIRELESS FEATURES | |
| Wireless Standard | IEEE 802.11a/n/ac/ax 5 GHz IEEE 802.11b/g/n/ax 2.4 GHz |
| Frequency | 2.4 GHz and 5 GHz |
| Signal rate | AX1800 5 GHz: Up to 1201 Mbps (HE160) 2.4 GHz: Up to 574 Mbps (HE40)* |
| Wireless functionality | Enable/Disable Wireless Radio, WMM, Wireless Statistics |
| Wireless Security | WPA/WPA2/WPA3 Encryptions |
| Transmission power | THERE IS: <20 dbm="" 2="" 4="" ghz="" br=""> <23 dbm="" 5="" ghz="" td=""> |
| Multi-SSID | 2× 5 GHz Multi-SSID 2× 2.4 GHz Multi-SSID |
| Wireless Scheduling | Support 2.4 GHz and 5 GHz Wireless Schedule |
| Mesh Technology | EasyMesh Compatible, and support 802.11k/v/r |
| SOFTWARE FEATURES | |
| QoS (Quality of Service) | Hardware QoS, Flow Classification |
| Advanced Features | Parental Controls, Network Address Translation(NAT), Port Mapping(Grouping), Static Routing, DNS Relay, DDNS, IGMP V1/V2/V3 |
| Safety | NAT Firewall, Access Control, MAC/IP/URL Filtering, IP and MAC Address Binding, Defense “Denial of Service (DoS), SYNFlooding, Ping of Death" |
| Management | Local management: WebGUI, Aginet app (for end users) Remote management: Aginet ACS, OMCI, TR-069/TR-369, TR-098, TR-181, TR-111,TR-143 for service providers Aginet APP for end user (need to log in wtih TP-Link ID and bind your device to it) Cloud management: TP-Link Agenet Unified Cloud (TAUC) |
| DHCP | Server, Client, DHCP Client List, Address Reservation, DHCP Relay |
| Port forwarding | Virtual Server, Port Triggering, DMZ, ALG, UPnP |
| Dynamic DNS | DynDns, NO-IP |
| VPN pass-through | PPTP, L2TP, IPSec Pass-through |
| Protocols | IPv4, IPv6 |
| VPN Server | PPTP VPN, IPSec VPN, OpenVPN |
| OTHER | |
| Package Contents |
WiFi 6 PON Router XX230v |
| System requirements |
Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux |
| Environment |
Operating Temperature: 0℃–40℃ (32℉–104℉) |
