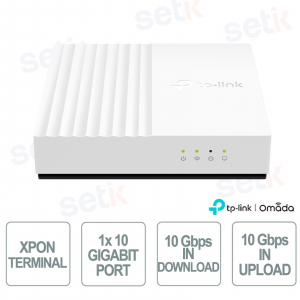

XGZ030 10G XGS-PON Terminal with 10GE LAN Port, OMCI Management and High-Speed FTTH Support up to 10Gbps

XGZ030 10G XGS-PON Terminal with 10GE LAN Port, OMCI Management and High-Speed FTTH Support up to 10Gbps

New

XGZ030 is an XGS-PON terminal with 10 Gigabit LAN port designed for next-generation FTTH networks, ideal for environments requiring ultra-fast and stable connectivity. It supports speeds of up to 10 Gbps in download and upload , ensuring high performance for high-bandwidth services and professional applications. Thanks to the 10GE Ethernet port , it offers extremely fast wired connections to routers or network gateways. It integrates remote management via OMCI , Bridge mode for transparent data transmission and SC/APC optical port with integrated BOSA design , ensuring reliability, efficiency and integration into the most advanced fiber optic network infrastructures. Omada

Technical Data Sheet

Reference: XGZ030

Brand: OMADA

EAN: 4897098685563

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

A key aspect of OMADA is its ability to offer centralised management. This can be done through a dedicated hardware controller, a software controller, or the Omada SDN cloud service, which enables centralised management of networks. The solutions offered are scalable and flexible, making them suitable for both small corporate networks and large multi-site deployments.

OMADA includes wireless solutions with high-performance Wi-Fi access points, ensuring reliable, high-speed coverage. In addition, it offers managed switches and gateway routers with advanced traffic management, security and quality of service (QoS) features.

Security is another strong point of OMADA's solutions, which include advanced features such as firewalls, VPNs and access control to protect corporate networks. In addition, OMADA's cloud platform enables remote configuration and monitoring of networks, offering great flexibility in IT management.

For businesses, OMADA provides a solution that can reduce operating costs through centralised management that simplifies network maintenance. High-quality hardware components ensure stable and reliable performance, while intuitive interfaces and management tools make network administration easier even for non-technical staff.

OMADA's core products include indoor and outdoor access points with advanced technologies such as Wi-Fi 6, managed switches with Layer 2 and Layer 3 capabilities, and security and routing devices for network traffic management and threat protection. OMADA solutions are commonly used in corporate offices to manage internal networks, in schools and universities to provide Wi-Fi connections for students and staff, and in hotels to offer a stable and fast Internet connection to guests.

[short_description] =>

Tp-Link Omada

OMADA is a TP-Link brand of enterprise network management solutions. The OMADA system includes both hardware and software designed to centralise the management of wireless networks, switching and gateways. This approach is designed to improve the control and management of network infrastructures, particularly in enterprise environments.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


XGZ030 | XPON TERMINAL WITH ONE 10GE PORT


Made Omada

The TP-Link XGZ030 is a 10G XGS-PON terminal designed for next-generation Fiber-to-the-Home (FTTH) networks, ideal for applications that require ultra-fast and reliable connections. Thanks to XGS-PON support with speeds of up to 10 Gbps in download and upload , it guarantees high performance for advanced broadband services. The presence of the 10GE LAN port allows for very high-speed wired connections to routers or gateways. It integrates remote management via OMCI , Bridge mode for transparent data transmission and SC/APC optical port with integrated BOSA design , ensuring efficiency, stability and integration into the most advanced fiber optic network infrastructures.

Main specifications:

- XGS-PON technology with speeds up to 10 Gbps symmetrical for ultra-high performance fiber optic connections

- 1 x 10 Gigabit Ethernet (10GE) LAN port for ultra-fast wired connections to routers and network devices

- Remote management via OMCI, Web and Telnet for configuration, monitoring and maintenance by operators

- High transparency Bridge mode to ensure stable and interference-free data transmission

- Integrated BOSA design with SC/APC optical port for greater reliability in FTTH infrastructures

- Advanced security and networking features such as AES encryption, 802.1Q VLAN, and IGMP v1/v2/v3 support for efficient network traffic management.

Further details

1 XGS-PON port:
The device integrates an XGS-PON optical port with SC/APC connector , designed for next-generation FTTH fiber connections and capable of supporting speeds of up to 10 Gbps in download and upload , ensuring high performance for ultra-broadband services and high data traffic applications.
1 x 10GE LAN port:
The presence of the 10 Gigabit Ethernet (10GE) port enables very high-speed wired connections to routers, gateways or network switches, allowing you to fully exploit the capacity of the optical fiber and reducing bottlenecks in home or business networks.
Bridge Mode:
Bridge mode enables transparent, high-speed data transmission by directly connecting the operator's network to the router or gateway without interference, improving stability, latency and signal quality in FTTH infrastructures.
Remote Management:
The terminal supports remote management via OMCI, Web and Telnet , allowing operators to configure, monitor and upgrade the device remotely , simplifying maintenance, service activation and management of fiber optic networks.

Technical data sheet

Model XGZ030
HARDWARE FEATURES
Interface 1 XGS-PON Port
1 10G RJ45 Port
Key 1× Power On/Off Button
1× Reset Button
External power supply 12V/1A
IEEE Standard IEEE 802.1p, 802.1Q, 802.1X, 802.1D, 802.1w
IEEE 802.3, 802.3.u, 802.3ab, 802.3x
Data transfer speed Downstream Speeds: 10 Gbps*
Upstream Speeds: 10 Gbps*
Wave Length Upstream: 1270 nm
Downstream: 1577 nm
Dimensions (L x W x H) 4.72 × 4.72 × 1.1 in (120 × 120 × 27.85 mm)
Distance 0–20 Km Max
GPON Standard ITU-T G.9907.1, ITU-T G.988
Optical module Class E1
Receiver Super-TIA
Transmitter DFB Laser
SOFTWARE FEATURES
Advanced Features Upstream and Downstream FEC,
Dynamic Bandwidth Allocation(DBA) supports NSR/SR,
Up to 32 T-CONTs and 256 GEM Ports,
Optical power detection,
Dying Gasp,
Terminal Silent mechanism
802.3az EEE energy conservation
Schedule Reboot,
LED Schedule
VLAN 802.1Q tag VLAN, VLAN transparent mode/VLAN translation mode/VLAN trunk mode,
Authentication based on SN and Password, VLAN Auto Detect
Safety AES Encryption, Packet Filter based on VLAN
Management Local management: WebGUI, Telnet
Remote management: OMCI
IGMP IGMP v1/v2/v3
OTHER
Package Contents

XGS-PON Terminal
Power Adapter
Quick Installation Guide

System requirements

Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Subscription with an internet service provider (for internet access)

Certifications

CE, RoHS

Environment

Operating Temperature: 0℃–40℃ (32℉–104℉)
Storage Temperature:-40℃–60℃ (-40℉–140℉)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing
