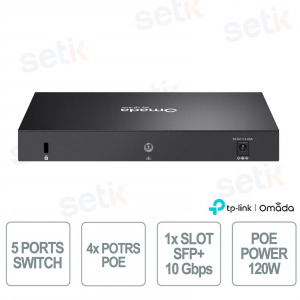

ES206XPP-M2 2.5G Switch with 4 x 90W PoE++, 1 x 10G SFP+, SDN Cloud Management for Multi-Gigabit Enterprise Networks - Omada

ES206XPP-M2 2.5G Switch with 4 x 90W PoE++, 1 x 10G SFP+, SDN Cloud Management for Multi-Gigabit Enterprise Networks - Omada

New

The ES206XPP-M2 is a 2.5G Easy Managed multi-gigabit switch with PoE++ support designed for enterprise networks, IP video surveillance and high-performance infrastructures. It integrates 5 2.5Gbps RJ45 ports (including 4 802.3af/at/bt compatible PoE++) and 1 10Gbps SFP+ slot , offering ultra-fast wired connections and high-capacity fiber uplinks. Thanks to the total PoE budget of 120W with up to 90W per port , it can power Wi-Fi access points, IP cameras and other PoE devices via a single Ethernet cable. It supports centralized cloud management via the Omada SDN platform , with monitoring and configuration via web or app. Advanced features such as VLAN, QoS, Port Isolation, IGMP Snooping and automatic loop prevention improve network security and stability, while the fanless design with metal structure ensures reliability and silent operation. Omada

Technical data sheet not available

Reference: ES206XPP-M2

Brand: OMADA

EAN: 1210002600965

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

A key aspect of OMADA is its ability to offer centralised management. This can be done through a dedicated hardware controller, a software controller, or the Omada SDN cloud service, which enables centralised management of networks. The solutions offered are scalable and flexible, making them suitable for both small corporate networks and large multi-site deployments.

OMADA includes wireless solutions with high-performance Wi-Fi access points, ensuring reliable, high-speed coverage. In addition, it offers managed switches and gateway routers with advanced traffic management, security and quality of service (QoS) features.

Security is another strong point of OMADA's solutions, which include advanced features such as firewalls, VPNs and access control to protect corporate networks. In addition, OMADA's cloud platform enables remote configuration and monitoring of networks, offering great flexibility in IT management.

For businesses, OMADA provides a solution that can reduce operating costs through centralised management that simplifies network maintenance. High-quality hardware components ensure stable and reliable performance, while intuitive interfaces and management tools make network administration easier even for non-technical staff.

OMADA's core products include indoor and outdoor access points with advanced technologies such as Wi-Fi 6, managed switches with Layer 2 and Layer 3 capabilities, and security and routing devices for network traffic management and threat protection. OMADA solutions are commonly used in corporate offices to manage internal networks, in schools and universities to provide Wi-Fi connections for students and staff, and in hotels to offer a stable and fast Internet connection to guests.

[short_description] =>

Tp-Link Omada

OMADA is a TP-Link brand of enterprise network management solutions. The OMADA system includes both hardware and software designed to centralise the management of wireless networks, switching and gateways. This approach is designed to improve the control and management of network infrastructures, particularly in enterprise environments.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


ES206XPP-M2 | EASY MANAGED SWITCH 5 PORTS 2.5G BASE-T AND 1 PORT 10 GE SFP++ WITH 4 POE PORTS

Made Omada

The TP-Link Omada ES206XPP-M2 is a 2.5G Easy Managed Multi-Gigabit Switch with PoE++ support designed for enterprise networks, IP video surveillance systems and high-performance infrastructures. It integrates 5 2.5Gbps RJ45 ports (4 of which are 802.3af/at/bt compatible PoE++) and 1 10Gbps SFP+ slot , offering ultra-fast wired connectivity and high-capacity fiber uplinks. Thanks to the total PoE budget of 120W with up to 90W per port , it can power Wi-Fi access points, IP cameras and other devices via a single Ethernet cable. It supports centralized cloud management via the Omada SDN platform with web or app configuration. Advanced features such as VLAN, QoS, Port Isolation, IGMP Snooping and automatic loop prevention ensure a stable and secure network, while the fanless design with metal body guarantees reliability and silent operation.

Main specifications:

- 5 Multi-Gigabit 2.5 Gbps RJ45 ports (including 4 PoE++ 802.3af/at/bt ports) for high-speed wired connections and device power over Ethernet

- 1 x 10Gbps SFP+ slot for high-performance fiber optic uplinks and increased network scalability

- 120W total PoE budget with up to 90W per port ideal for powering Wi-Fi access points, IP cameras and high-power PoE devices

- Centralized cloud management via Omada SDN platform with monitoring and configuration via web or Omada app

- Advanced network features such as VLAN, QoS, Port Isolation and IGMP Snooping to optimize traffic, security and stability

- Fanless design with metal frame and desktop or wall-mounted installation for quiet operation and reliability in professional networks.

Further details

5 x 2.5Gbps Multi-Gigabit RJ45 Ports :
The switch integrates 5 high-performance 2.5GBASE-T Ethernet ports , designed to offer wired connections up to 2.5 Gbps , ideal for connecting high-speed Wi-Fi access points, NAS, workstations and network devices that require more bandwidth than traditional Gigabit networking.
1 x 10Gbps SFP+ port for fiber uplink :
The presence of a 10 Gigabit SFP+ slot enables the creation of very high-speed uplink connections via optical fiber , improving network scalability and enabling integration with high-performance core switches, servers or network backbones.
Advanced PoE++ power up to 120W:
The switch supports 802.3af/at/bt compliant PoE++ with a total PoE budget of 120W and up to 90W per port , allowing you to power high-power devices such as Wi-Fi 6/7 access points, professional IP cameras and other PoE devices over a single Ethernet cable.
Easy to use with plug-and-play setup:
Designed for quick and intuitive setup , it supports plug-and-play for instant connectivity and easy management of advanced features, reducing installation time and simplifying integration into the corporate network.
Centralized Omada SDN Cloud Management:
With centralized cloud management via the Omada platform , administrators can configure, monitor and control the entire network infrastructure from a single interface , using web browsers or Omada apps for efficient management even across multiple locations.

Technical data sheet

Model ES206XPP-M2
HARDWARE FEATURES
Interface 5× 2.5 Gbps RJ45 Ports (4× 802.3af/at/bt-compliant PoE++)
1× 10 Gbps SFP+ Slot
Auto-Negotiation/Auto MDI/MDIX
Number of fans Fanless
Installation Desktop/Wall Mount
Physical security lock
Diet DC Power Adapter Output: 12 VDC / 1.5 A)
PoE ports Standard: 802.3af/at/bt PoE++ compliant
PoE Ports: 4 ports
PoE Budget: 120W available for all PoE++ ports, 90W max per port
Fast PoE & Perpetual PoE
PoE Auto Recovery‡
Dimensions (L x W x H) 8.2 × 5.0 × 1.0 in (209 × 126 × 26 mm)
Surge Protection ±6 kV
PERFORMANCES
Switching capacity 45 Gbps
Packet Forwarding Rate 33.48 Mpps
ARP Table 8 K
Buffer (packets) 640 KB
Jumbo frame 10 KB
SOFTWARE FEATURES
QoS (Quality of Service) Port-based/802.1p/DSCP QoS
8 priority queues
Priority Schedule Mode
SP (Strict Priority)
WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control
Port/Flow-based Rating Limiting
Storm Control
Multiple Control Modes(kbps/ratio)
Broadcast/Multicast/Unknown-Unicast Control
L2 functionality

Static Link Aggregation
Loop Prevention / Loopback Detection
Flow Control
802.3x Flow Control
Mirroring
Port Mirroring
One-to-One
Many-to-One
Ingress/Egress/Both
Port Statistics
Port Mirror Status
Traffic Statistics
802.1ab LLDP

L2 Multicast

IGMP Snooping
IGMP v1/v2/v3 Snooping
Fast Leave

VLAN VLAN MTU
Port-Based VLAN
802.1Q VLAN Tag
Max 32 VLAN Groups
4K VID
Transmission method Store-And-Forward
MANAGEMENT
Omada App

Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features Web-based GUI
DHCP Client
Cable Diagnostics
Automatic Device Discovery†
Batch Configuration†
Batch Firmware Upgrading†
Unified Configuration†
OTHER
Certification CE, FCC, RoHS
Package Contents

ES206XPP-M2
Power Adapter
Power Cord
Mounting Feet
Installation Guide

Environment Operating Temperature: -5℃~40℃ (23℉~104℉)
Storage Temperature: -40 °C to 70 ℃ (-40 ℉ to 158 ℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
