CS4009-8ET1GT-60 - The switch is an advanced solution for professional networks that integrates DoLynk cloud management with real-time monitoring and network topology visualization , ideal for video surveillance systems and IT infrastructures. Equipped with 9 total ports with 8 PoE ports and 1 Gigabit uplink port , it offers a 60W PoE budget with Hi-PoE support up to 60W for high-power devices and extended transmission up to 250 meters . PoE Watchdog technology ensures business continuity with automatic port restart, while surge and interference protection ensures high reliability. The metal design with VLAN support and loop protection makes it ideal for business environments and professional installations. Dahua

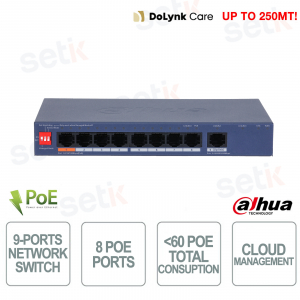

CS4009-8ET1GT-60 | 9-Port Cloud-Managed Network Switch with 8 PoE Ports - Dahua

The Dahua CS4009-8ET1GT-60 switch represents a complete solution for professional networks, integrating DoLynk cloud management with real-time monitoring and topology visualization , ideal for video surveillance systems and corporate environments. With a total of 9 ports including 8 PoE ports and 1 Gigabit uplink port , it offers a PoE budget of up to 60W with Hi-PoE support for high-power devices and transmission distances of up to 250 meters . The PoE Watchdog function ensures business continuity through automatic port restart, while protection against surges and interference ensures high reliability. The robust design with VLAN support and loop protection makes it ideal for advanced professional installations.
Main specifications:
- DoLynk cloud management with real-time monitoring and remote control
- 9 total ports: 8 PoE + 1 Gigabit uplink with 60W budget
- Hi-PoE support for high power devices up to 60W
- PoE transmission up to 250 meters (Long Distance)
- PoE Watchdog for automatic port reboot
- VLAN and loop protection support for network stability and security
Further details
High performance with switching capacity up to 3.6 Gbps and forwarding rate of 2.68 Mpps , VLAN support up to 32 groups and efficient traffic management, for a stable, fast and reliable network.
Technical data sheet
| PRODUCT | CS4009-8ET1GT-60 |
| Basic | |
| Layer | Layer 2 |
| Switching Capacity | 3.6 Gbps |
| Packet Forwarding Rate | 2.68 Mpps |
| Description of Function Slots | Port 1-8: 8 × RJ-45 10/100 Mbps (PoE) Port 9: 1 × RJ-45 10/100/1000 Mbps (uplink) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Humidity | 5%–95% (RH), non-condensing |
| Power Supply | External power supply: 53 VDC, 1.22 A |
| Power Consumption | Idling: 4 W Full load: 63 W |
| Statics Protection | Air discharge: 8 kV; Contact discharge: 6 kV |
| Lighting Protection | Common mode: 6 kV Differential mode: 1 kV |
| Net Weight | 0.36 kg (0.79 lb) |
| Gross Weight | 0.92 kg (2.03 lb) |
| Product Dimensions | 184.6 mm × 103.3 mm × 27 mm (7.27" × 4.07" × 1.06") (L × W × H) |
| Packaging Dimensions | 252 mm × 137 mm × 113 mm (9.92" × 5.39" × 4.45") (L × W × H) |
| Casing Material | Sheet metal |
| Installation | Desktop mount; wall mount |
| Certifications | THERE IS |
| PoE | |
| PoE | Yes |
| PoE Power | Port 2-8≤30W, port 1≤60W, total≤60W |
| PoE Protocol | IEEE802.3af ; IEEE802.3at ; Hi-PoE |
| PoE Power Consumption Management | PoE power consumption management PoE power on/off turns off PoE if overload is detected |
| PoE Pin Assignment | 1,2, (V+), 3,6, (V-) |
| Long Distance PoE Transmission | Yes |
| Hardware | |
| DIP Switch | Managed Mode: On by default for both local web and cloud management. Off for Unmanaged Mode. PoE Watchdog: Monitors ports 1-8 and auto-restarts the PoE port when there is no traffic for 2 min. (Only works when Managed Mode is Off) Extend Mode: Ports 1-8; transmission distance up to 250 meters at 10 Mbps. (Only works when Managed Mode is Off) |
| Reset Button | 1 |
| Performance | |
| MTBF | 3,253,425 hours |
| Packet Buffer Size | 4 Mbit |
| Jumbo Frame | 9216 Bytes |
| MAC Table Size | 8K |
| Communication Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3X, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az |
| VLAN Number | 32 |
| Feature | |
| VLAN Function | IEEE 802.1Q VLAN |
| Port Feature | IEEE 802.3x Flow Control Unknown Unicast Suppression Multicast Storm Control Broadcast Storm Control MAC+Port Binding Loop Prevention |
| Mirror | Local Port Mirroring N:1 Mirroring |
| Reliability | LLDP |
| DHCP Function | DHCP Client |
| Security | Port Isolation |
| Equipment Management | Web Management Cloud Management Logs Fault Alarm |
| General | |
| Packing List | 1 × User Manual 1 × Legal and Regulatory Information 1 × Power Cord 1 × Power Adapter |
