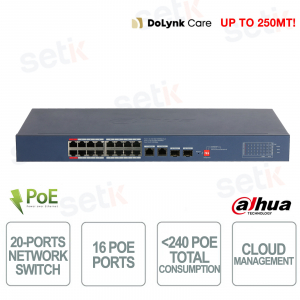

CS4220-16GT-240-V2 - is a cloud-managed Gigabit PoE switch designed for professional networks, IP video surveillance systems and high-performance enterprise infrastructures. Equipped with 16 Gigabit PoE ports , 2 Gigabit RJ45 uplink ports and 2 Gigabit SFP ports , it offers a total PoE power of up to 240W with IEEE 802.3bt support up to 90W on dedicated ports for high-power devices. Intelligent management via DoLynk Care Cloud allows remote monitoring, quick configuration and real-time network control. Thanks to PoE Watchdog , Long Distance PoE up to 250 meters , VLAN , STP/RSTP and Link Aggregation technologies, it guarantees maximum stability, security and business continuity even in complex industrial and commercial environments. Dahua

Technical Data Sheet

Reference: CS4220-16GT-240-V2

Brand: Dahua

EAN: 6937552401938

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CS4220-16GT-240-V2 | 20-Port Cloud-Managed Network Switch with 16 PoE Ports - Version 2 - Dahua


Dahua

The Dahua CS4220-16GT-240-V2 is a cloud-managed Gigabit PoE switch designed for professional networks, CCTV systems and high-performance business infrastructures. Thanks to 16 RJ45 Gigabit PoE ports , 2 Gigabit uplink ports and 2 Gigabit SFP ports , it guarantees stable connectivity and high-speed data transmission. It supports a total PoE power of up to 240W with IEEE 802.3bt technology up to 90W on dedicated ports to power high-power consumption devices. Intelligent management via DoLynk Care Cloud , combined with PoE Watchdog , Long Distance PoE up to 250 meters , VLAN , STP/RSTP and Link Aggregation functions, ensures maximum reliability, security and business continuity even in complex industrial environments.

Main specifications:

- 16 RJ45 Gigabit PoE ports

- 2 Gigabit RJ45 uplink ports + 2 Gigabit SFP ports

- Total PoE power up to 240W

- Cloud and Web Management via DoLynk Care

- PoE Watchdog with automatic port reboot

- Long Distance PoE transmission up to 250 meters

- Supports VLAN, STP, RSTP and Link Aggregation

- Switching capacity up to 40 Gbps

- Surge protection up to 6 kV

- Desktop or rack mount installation

Further details

Number of doors:
The Dahua switch integrates 16 RJ45 Gigabit PoE ports , 2 Gigabit RJ45 uplink ports and 2 Gigabit SFP ports , offering a complete solution for enterprise networks, IP video surveillance and high-speed fiber optic connections, ensuring maximum stability and connection flexibility.
Cloud Management:
Thanks to the DoLynk Care Cloud platform , the device enables centralized remote management with real-time monitoring, automatic error notifications, simplified configuration and intelligent control of the entire network infrastructure via app or web interface.
Network Topology Management:
Support for the LLDP protocol allows you to generate and visualize the network topology in real time, making it easy to immediately identify problems, offline devices and connection anomalies for fast and efficient maintenance.
PoE Watchdog :
Intelligent PoE Watchdog technology constantly monitors the status of PoE ports and automatically reboots devices that stop transmitting data, ensuring business continuity and dramatically reducing manual maintenance.
BT 90W :
The dedicated ports support the IEEE 802.3bt standard up to 90W , ideal for powering high-power professional devices such as PTZ cameras, speed domes, advanced Wi-Fi access points and advanced network devices via a single Ethernet cable.
Loop Protection :
The Loop Protection system automatically detects any network loops and activates protection mechanisms to prevent broadcast storms, slowdowns and network interruptions, improving the reliability and security of the LAN infrastructure.
Spanning Tree Protocol :
Support for STP and RSTP protocols optimizes data traffic by creating loop-free network paths and ensuring intelligent redundancy, thus increasing network stability and service continuity even in complex environments.
Performance :
With a switching capacity of up to 40 Gbps , forwarding rate of 29.76 Mpps , Jumbo Frame support up to 15360 Bytes and 8K MAC table , the switch ensures high performance for high-traffic networks, advanced CCTV systems and professional business applications.

Technical data sheet

PRODUCT CS4220-16GT-240-V2
Basic
Layer Layer 2
Switching Capacity 40 Gbps
Packet Forwarding Rate 29.76 Mpps
Description of Function Slots Port 1-16: 16 × RJ-45 10/100/1000 Mbps (PoE)
Port 17-18: 2 × RJ-45 10/100/1000 Mbps (uplink)
Port 19-20: 2 × SFP 1000Mbps (uplink)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 10%–90% (RH), non-condensing
Storage Temperature –40 °C to +75 °C (-40 °F to +167 °F)
Storage Humidity 5%–95% (RH), non-condensing
Power Supply Built-in power supply: 100–240 VAC, 47–63 Hz, max 4 A
Power Consumption Idling: 11.8 W
Full load: 253.5 W
Statics Protection Air discharge: 8 kV;
Contact discharge: 6 kV
Lighting Protection Common mode: 6 kV
Differential mode: 1 kV
Net Weight 2.5 kg (5.51 lb)
Gross Weight 3.2 kg (7.05 lb)
Product Dimensions 440 mm × 228.81 mm × 43.65 mm (17.32" × 9.01" × 1.72") (L × W × H)
Packaging Dimensions 540 mm × 342 mm × 90 mm (21.26" × 13.46" × 3.54") (L × W × H)
Casing Material Sheet metal
Installation Desktop mount; wall mount
Certifications THERE IS
PoE
PoE Yes
PoE Power Port 3-16≤30W, port 1-2≤90W, total≤240W
PoE Protocol IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt
PoE Power Consumption Management PoE power consumption management
PoE power on/off
turns off PoE if overload is detected
PoE Pin Assignment Port 1-2: 1,2,4,5 (V+),3,6,7,8 (V-)
Port 3-16: 1.2, (V+), 3.6, (V-)
Long Distance PoE Transmission Yes
Hardware
DIP Switch Managed Mode: On by default for both local web and cloud management. Off for Unmanaged Mode.
PoE Watchdog: Monitors ports 1-16 and auto-restarts the PoE port when there is no traffic for 2 min. (Only works when Managed Mode is Off)
Extend Mode: Ports 1-16; transmission distance up to 250 meters at 10 Mbps. (Only works when Managed Mode is Off)
Reset Button 1
Performance
MTBF 1,092,753 hours
Packet Buffer Size 4 Mbit
Jumbo Frame 15360 Bytes
MAC Table Size 8K
Communication Standard IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3az; IEEE 802.3ad
VLAN Number 32
Feature
Ethernet Loop Protection STP; RSTP
VLAN Function IEEE 802.1Q VLAN
Link Aggregation Static Aggregation
Port Feature IEEE 802.3x Flow Control
Unknown Unicast Suppression
Multicast Storm Control
Broadcast Storm Control
MAC+Port Binding
Loop Prevention
Mirror Local Port Mirroring
N:1 Mirroring
Reliability LLDP
DHCP Function DHCP Client
Security Port Isolation
Equipment Management Web Management
Cloud Management
Logs
Fault Alarm
General
Packing List 1 × Quick Start Guide
1 × Legal and Regulatory Information
1 × Power Cord
1 × Power Adapter
