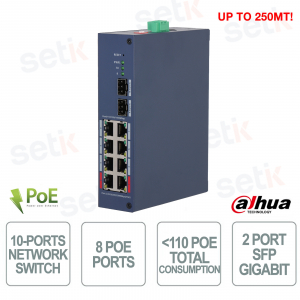

CHS4210-8GT-110 Gigabit PoE Switch Cloud Managed BT 90W with 10 Ports and PoE 250m - Dahua

CHS4210-8GT-110 Gigabit PoE Switch Cloud Managed BT 90W with 10 Ports and PoE 250m - Dahua

 
-56%

CHS4210-8GT-110 - is an industrial Cloud Managed Gigabit PoE switch designed for professional networks, IP video surveillance and high-performance industrial environments. Equipped with 10 Gigabit ports , including 8 PoE ports and 2 SFP uplink ports , it supports BT 90W and Hi-PoE technology to power high-power devices such as PTZ cameras and advanced access points. Cloud and Web management, support for LLDP network topology , the intelligent PoE Watchdog system and PoE transmission up to 250 meters ensure remote control, reliability and business continuity. The full metal fanless IP30 design ensures resistance to dust, temperature changes and harsh environments with stable operation from -30°C to +65°C . Dahua

Technical Data Sheet

Reference: CHS4210-8GT-110

Brand: Dahua

EAN: 6937552482982

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CHS4210-8GT-110 | 10-Port Industrial Managed Network Switch with 8 POE Ports & 2 SFP Ports - Dahua


Dahua

The Dahua CHS4210-8GT-110 is an industrial Cloud Managed Gigabit PoE switch designed for professional networks, IP video surveillance systems and high-performance enterprise infrastructures. Equipped with 10 Gigabit ports , including 8 PoE ports and 2 SFP uplink ports , it supports IEEE 802.3bt technology and Hi-PoE up to 90W to power high-power devices. Intelligent management via Cloud and Web Management , LLDP support, PoE Watchdog system and PoE transmission up to 250 meters ensure reliability, remote monitoring and business continuity. The full metal fanless IP30 design offers high resistance in industrial environments with operating temperatures from -30°C to +65°C .

Main specifications:

- 10 Gigabit ports with 8 PoE ports and 2 SFP uplink ports

- Supports IEEE 802.3bt and Hi-PoE up to 90W

- Integrated Cloud and Web Management

- Intelligent PoE Watchdog function

- LLDP support for network topology

- STP/RSTP and VLAN protection

- Fanless full metal design with IP30 protection

- Operating temperature from -30°C to +65°C

Further details

✅ Number of doors:
The Dahua switch integrates 10 Gigabit ports , including 8 10/100/1000 Mbps RJ45 PoE ports for simultaneous power and data transmission and 2 SFP uplink ports dedicated to fiber optic connection, ideal for corporate networks, IP video surveillance systems and high-performance industrial infrastructures.
✅ Local and Cloud Management:
Advanced management via local Web and Cloud Management enables centralized configuration, remote monitoring and maintenance of the network, improving operational efficiency and reducing IT management time and costs.
✅ Network Topology Management:
With support for the LLDP protocol , the switch automatically displays the network topology, allowing you to quickly identify connected devices, connections and anomalies, simplifying maintenance and troubleshooting.
✅ Link Aggregation:
The Link Aggregation feature combines multiple physical links into a single high-speed virtual channel, increasing available bandwidth and ensuring greater stability, redundancy, and data traffic balancing.
✅ Spanning Tree Protocol:
Support for STP and RSTP protocols prevents network loops and broadcast storms, improving reliability, security, and business continuity in professional Ethernet networks.
✅ Hi-PoE 90W :
The dedicated ports support IEEE 802.3bt technology and Hi-PoE up to 90W , ideal for powering high-power devices such as PTZ cameras, professional Wi-Fi access points and advanced security terminals.
✅ Long Distance PoE :
The Long Distance PoE function enables data and power transmission up to 250 meters , making the switch perfect for installations in large industrial environments, car parks, warehouses and extensive video surveillance systems.
✅ PoE Watchdog :
The intelligent PoE Watchdog system continuously monitors PoE port traffic and automatically reboots unreachable devices, reducing manual intervention and ensuring service continuity.
✅ Loop Protection :
The Loop Protection feature automatically detects network loops and activates protection mechanisms to avoid congestion, slowdowns and interruptions in Ethernet traffic.
✅ Performance :
With switching capacity up to 20 Gbps , forwarding rate of 14.88 Mpps , 8.4 Mbit buffer and 12288 Byte Jumbo Frame support , the switch ensures high performance, smooth video stream transmission and maximum reliability in professional networks.

Technical data sheet

PRODUCT CHS4210-8GT-110
Basic
Layer Layer 2
Switching Capacity 20 Gbps
Packet Forwarding Rate 14.88 Mpps
Description of Function Slots Port 1-8: 8 × RJ-45 10/100/1000 Mbps (PoE)
Port 9-10: 2 × SFP 100/1000 Mbps (uplink)
Operating Temperature –30 °C to +65 °C (–22 °F to +149 °F)
Operating Humidity 10%–90% (RH), non-condensing
Protection IP30;IK06
Storage Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Storage Humidity 5%–95% (RH), non-condensing
Power Supply External dual power supply (terminal block and DC): 48–57 VDC, 2.5–2.1 A
Power Consumption Idling: 2 W
Full load: 116.6 W
Statics Protection Air discharge: 8 kV;
Contact discharge: 6 kV
Lighting Protection Common mode: 4 kV
Differential mode: 2 kV
Net Weight 0.66 kg (1.46 lb)
Gross Weight 1.6 kg (3.53 lb)
Product Dimensions 171.8 mm × 139.4 mm × 42 mm (6.76" × 5.49" × 1.65") (L × W × H)
Packaging Dimensions 314.5 mm × 253.5 mm × 130.5 mm (12.38" × 9.98" × 5.14") (L × W × H)
Casing Material Iron
Installation DIN rail mount; desktop mount
Certifications THERE IS
PoE
PoE Yes
PoE Power Port 2-4≤30W, port 1≤90W, total≤110W
PoE Protocol IEEE 802.3af; IEEE 802.3at; Hi-PoE IEEE 802.3bt
PoE Power Consumption Management PoE power consumption management; PoE power on/off; turns off PoE if overload is detected; Green PoE
PoE Pin Assignment 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V–)
Long Distance PoE Transmission Yes
Hardware
DIP Switch Managed mode: Switches between managed and unmanaged mode. Managed mode includes local web management and cloud management. It is on by default.
Extend mode: The transmission distance of ports 1–8 can reach up to 250 meters. The negotiation speed can be reduced to 10 Mbps.
PoE Watchdog: Monitors the flow of data traffic for ports 1–8. If PoE fails for any of the ports and there is no traffic for 2 minutes, the failed ports will be restarted.
Reset Button 1
Performance
MTBF 846,267 hours
Packet Buffer Size 8.4 Mbit
Jumbo Frame 12288 Bytes
MAC Table Size 8K
Communication Standard IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3az; IEEE 802.3ad
VLAN Number 32
Dynamic ARP 10
Feature
Ethernet Loop Protection STP; RSTP
VLAN Function Port-based VLAN
Link Aggregation Static Aggregation
Port Feature IEEE 802.3x Flow Control
Unknown Unicast Suppression
Multicast Storm Control
Broadcast Storm Control
MAC+PORT Binding
Port Self-loop Detection
Ports Self-loop Detection
Mirror Local Port Mirroring
Reliability LLDP
DHCP Function DHCP Client
Security Port Isolation
IP/Port/MAC Binding
Equipment Management Web Management
Cloud Management
Logs
System Logs
Fault Alarm
General
Packing List 1 × User Manual
1 × Legal and Regulatory Information
1 × Power Cord
1 × Power Adapter
1 × Terminal Block
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
