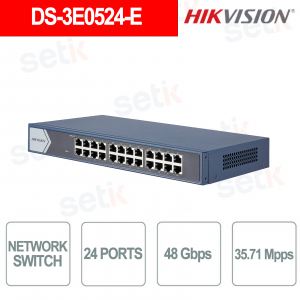

DS-3E0524-E - is a 24-port Gigabit switch designed for LAN networks in offices, schools, homes, and small video surveillance systems. It integrates 24 10/100/1000 Mbps RJ45 ports , a switching capacity of 48 Gbps , and a forwarding rate of up to 35.71 Mpps . The metal frame with fanless design ensures quiet operation, while the 19" rack installation simplifies integration into network cabinets. It also offers surge protection up to 6 kV and plug-and-play operation for quick setup. Hikvision

Technical Data Sheet

Reference: DS-3E0524-E

Brand: Hikvision

EAN: 6942160469782

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER

DS-3E0524-E | 24 PORT CLOUD MANAGED NETWORK SWITCH


Dahua

The Hikvision DS-3E0524-E is a 24-port Gigabit switch ideal for LAN networks, offices, schools and small video surveillance systems, with 24 10/100/1000 Mbps RJ45 ports and Plug-and-Play installation. It offers a switching capacity of 48 Gbps , forwarding speeds of up to 35.71 Mpps and an 8K MAC table, ensuring stable performance in managing network traffic. The metal structure with a fanless design ensures silent operation, while the rack- mounting option facilitates integration into network cabinets. Surge protection up to 6 kV completes the package.

Main specifications:

  • Ports: 24 × Gigabit RJ45
  • Switching: 48 Gbps
  • Forwarding: 35.71 Mpps
  • MAC: 8K addresses
  • Structure: fanless metal
  • Protection: 6 kV
  • Installation: rack

Further details

✅ Number of doors:
The Hikvision DS-3E0524-E switch integrates 24 Gigabit RJ45 10/100/1000 Mbps ports , designed for connecting devices such as PCs, IP cameras, printers, access points and routers via network cable, with support for data forwarding at line speed.
✅ Network Topology Management:
The device is a Plug-and-Play switch intended for simple networks; the manufacturer's application diagram shows the connection to routers/WANs and network devices . The datasheet does not declare advanced network topology management or monitoring features.
✅ Performance :
 It offers 48 Gbps switching capacity , a packet forwarding rate of 35.71 Mpps , an 8K MAC table and a 4.1 Mbit internal cache, features designed to ensure efficient management of Gigabit traffic on the 24 ports.

Technical data sheet

PRODUCT DS-3E0524-E
General
Shell Metal material, fan-free design
Net Weight 1.60 kg (3.50 lb)
Gross Weight 2.47 kg (5.44 lb)
Dimensions (W × H × D) 335.0 mm × 44.5 mm × 175.8 mm (13.2'' × 1.8'' × 6.9'')
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature –40˚C to 85˚C (–40˚F to 185˚F)
Operating Humidity 5%–95% (RH), non-condensing
Storage Humidity 5%–95% (RH), non-condensing
Power Supply 220 VAC, 50/60 Hz, Max. 0.7 A
Installation Mode Metal material, fan-free design
Surge Protection 6 kV
Network Parameters
Ports 24 × Gigabit RJ45 ports
MAC Address Table 8 K
Switching Capacity 48 Gbps
Packet Forwarding Rate 35.72 Mpps
Internal Cache 4.10 Mbits
Certifications THERE IS
Approval
EMC FCC (47 CFR Part 15, Subpart B), CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
Safety UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
